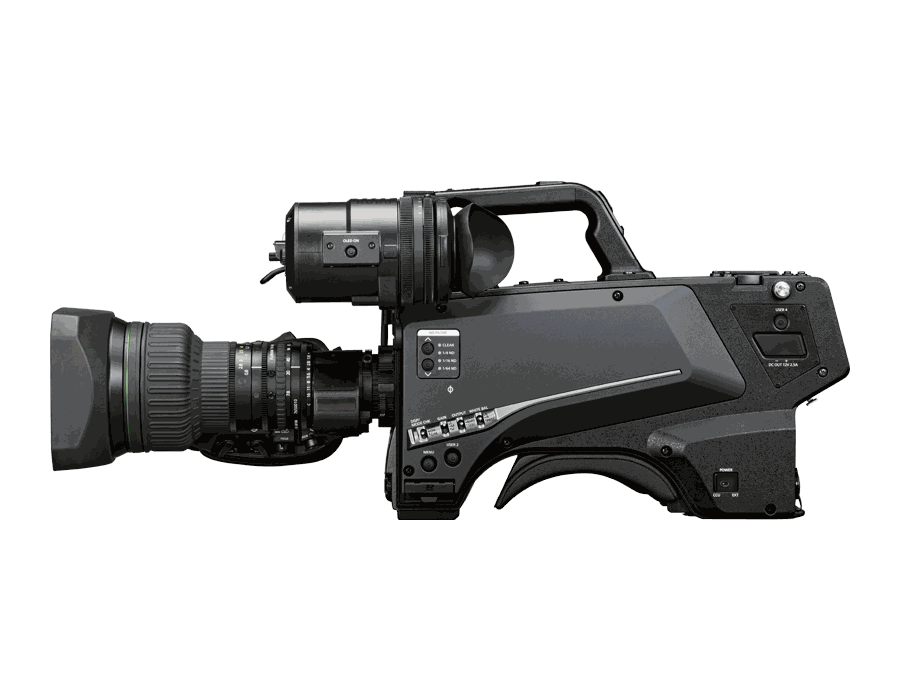

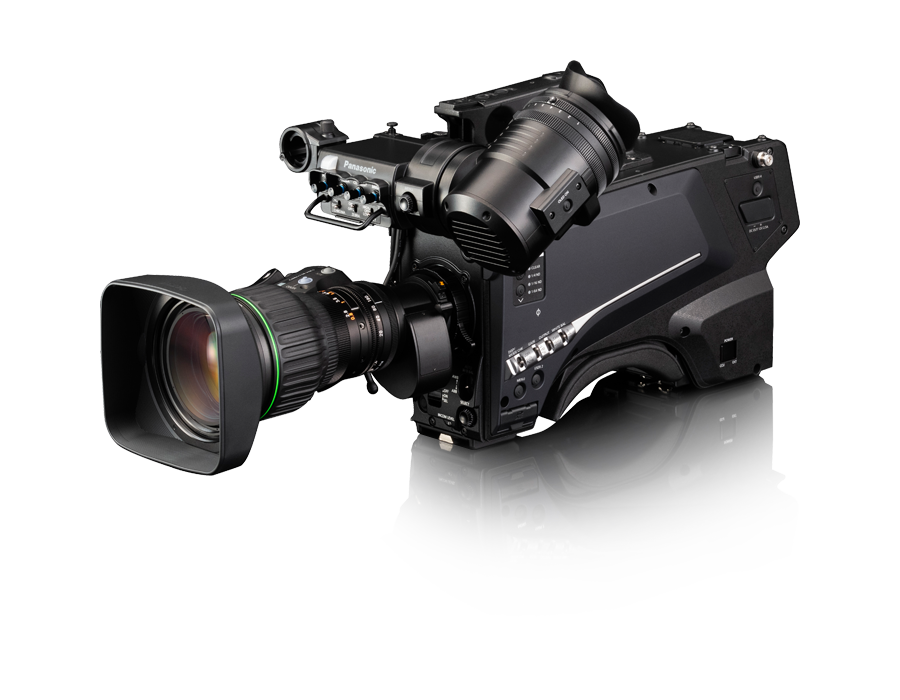

Panasonic AK-UC3300GSJ 4K Studio Camera

The AK-UC3300 is a 4K studio and system camera built around an 11-megapixel image sensor that resolves 2000 TV lines while holding a signal-to-noise ratio of 62 dB or higher at high sensitivity. A built-in optical conversion lens lets standard 2/3-type B4 broadcast lenses mount directly, so existing glass carries into a 4K facility. This GSJ variant ships with a low-pass filter installed to suppress moire.

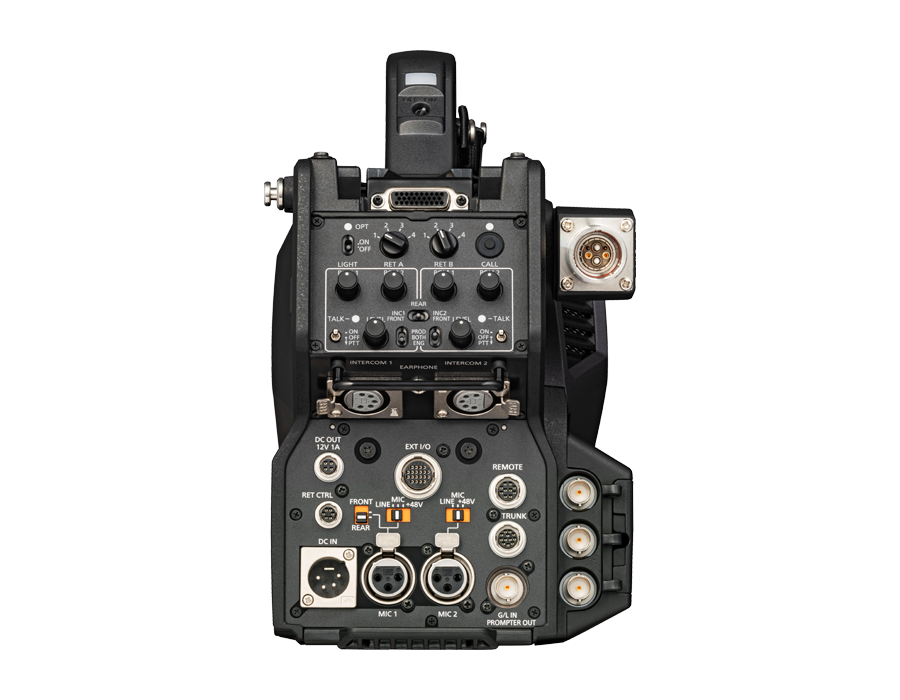

The camera head connects to the AK-UCU600 camera control unit over a LEMO SMPTE hybrid fiber cable for uncompressed 4K and HD transmission, with distance extendable to 10,000 m when the head is locally powered over single-mode fiber. It outputs UHD 4K up to 59.94p over 3G-SDI with simultaneous HD and UHD feeds, supports HDR and the ITU-R BT.2020 wide color range, and offers a 2x HD high-speed shooting mode for sports and live events.
