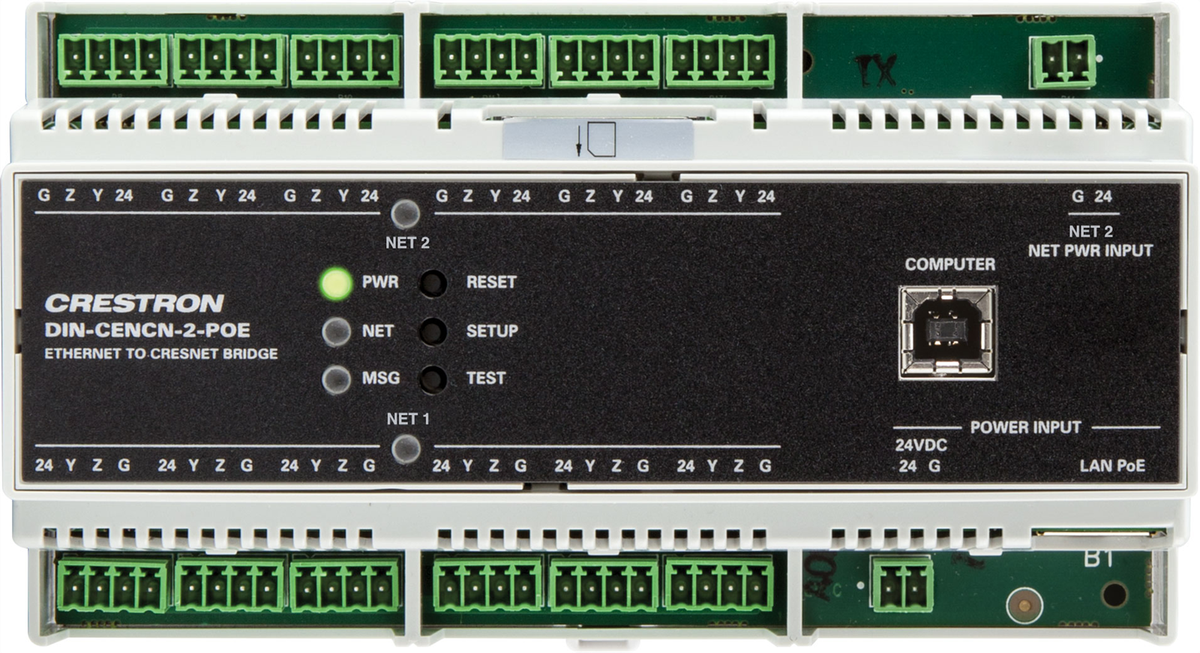

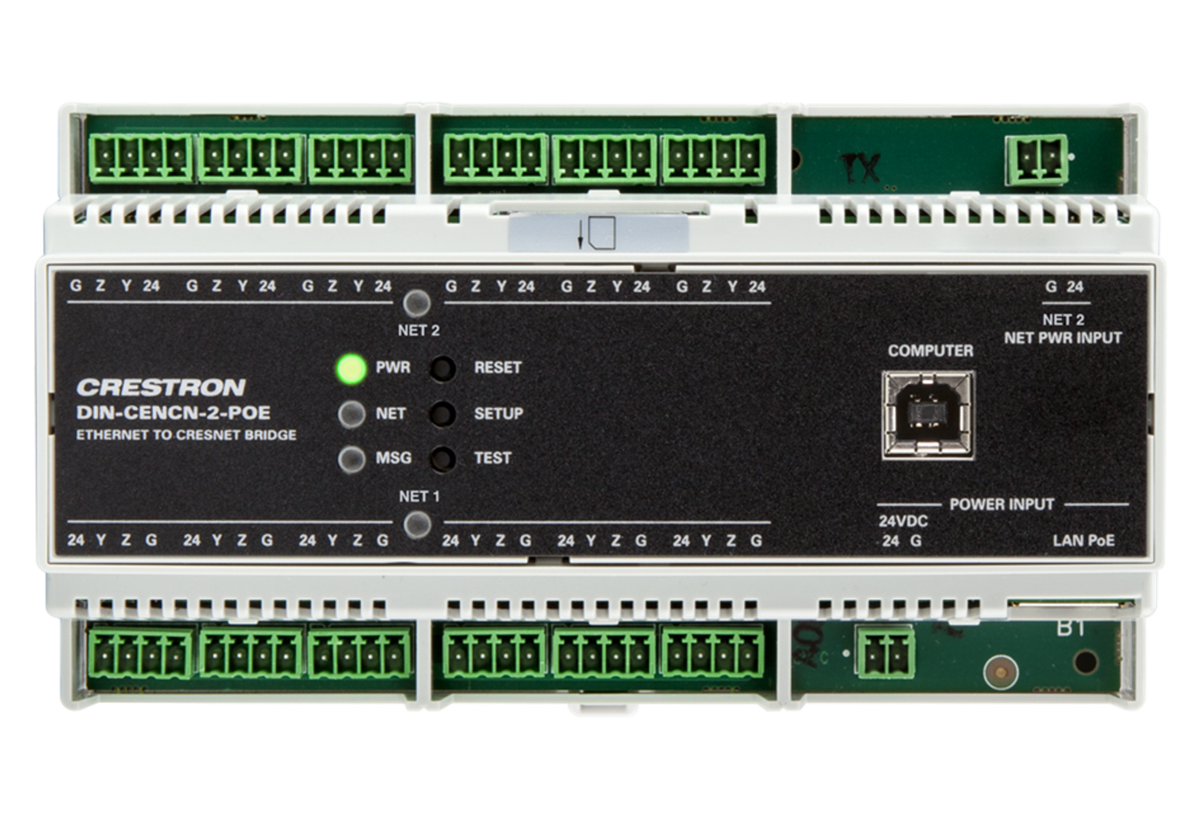

Crestron DIN-CENCN-2-POE Ethernet to Cresnet Network Bridge with PoE
The Crestron DIN-CENCN-2-POE is an Ethernet to Cresnet Network Bridge with PoE. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Cresnet: Cresnet server mode with two separate subnets. Ethernet: 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, web server, IEEE 802.3af and 802.3at Type 1 compliant. Mounting: 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm). Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Cresnet | Cresnet server mode with two separate subnets |
|---|---|
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, web server, IEEE 802.3af and 802.3at Type 1 compliant |
| NET | (1) Bi-color green/red LED, indicates connection (green) or no connection (red) to a control system via Ethernet |
| Mounting | 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm) |
| Temperature | 32 deg to 104 degF (0 deg to 40 degC) |
| USB | Supports computer console via front panel USB 2.0 device port |
| POWER INPUT - LAN PoE | (1) 8-pin RJ-45, female; 100BASE-TX Ethernet port; Power over Ethernet compliant |
| NET 1 | (6) 4-pin 3.5 mm detachable terminal blocks, paralleled; Subnet 1 Cresnet server ports; Connect up to 20 Cresnet devices; A maximum aggregate cable length of 1500 feet (457 meters) is recommended |
