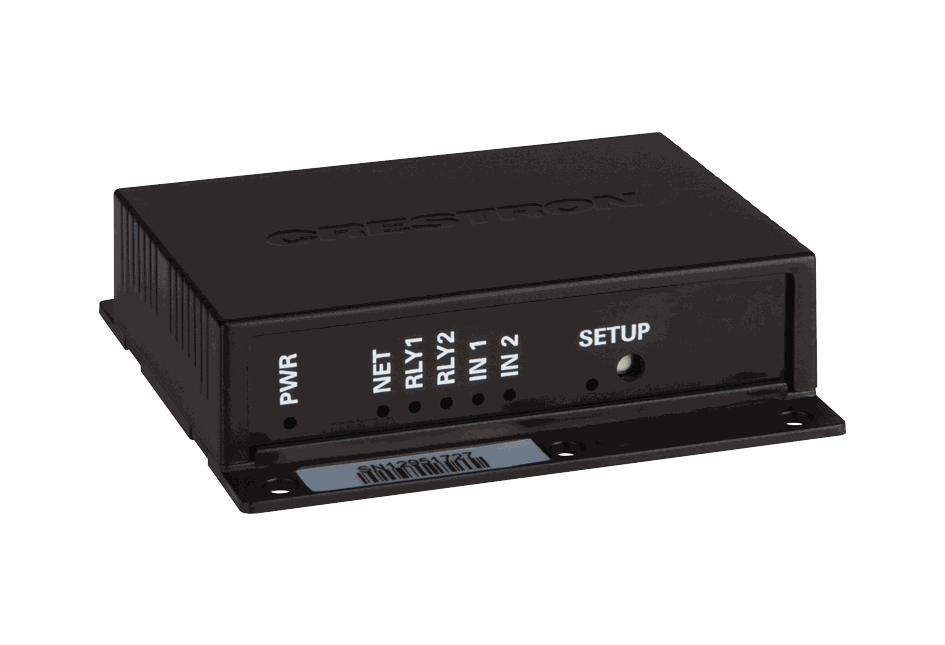

Crestron INET-IOEX-RYIO infiNET EX Wireless Relay/Digital Input Control Module
The INET-IOEX-RYIO carries low-voltage contact closure out to wherever the hardware actually is. Two normally open isolated relays rated 1 A at 30 VAC/DC drive garage door openers, motorised screens, gates and similar equipment, and two programmable digital inputs read sensors and dry contacts back. Everything travels over the infiNET EX 2.4 GHz mesh, so a device in a detached garage or a historic wall joins the control system without a wire run.

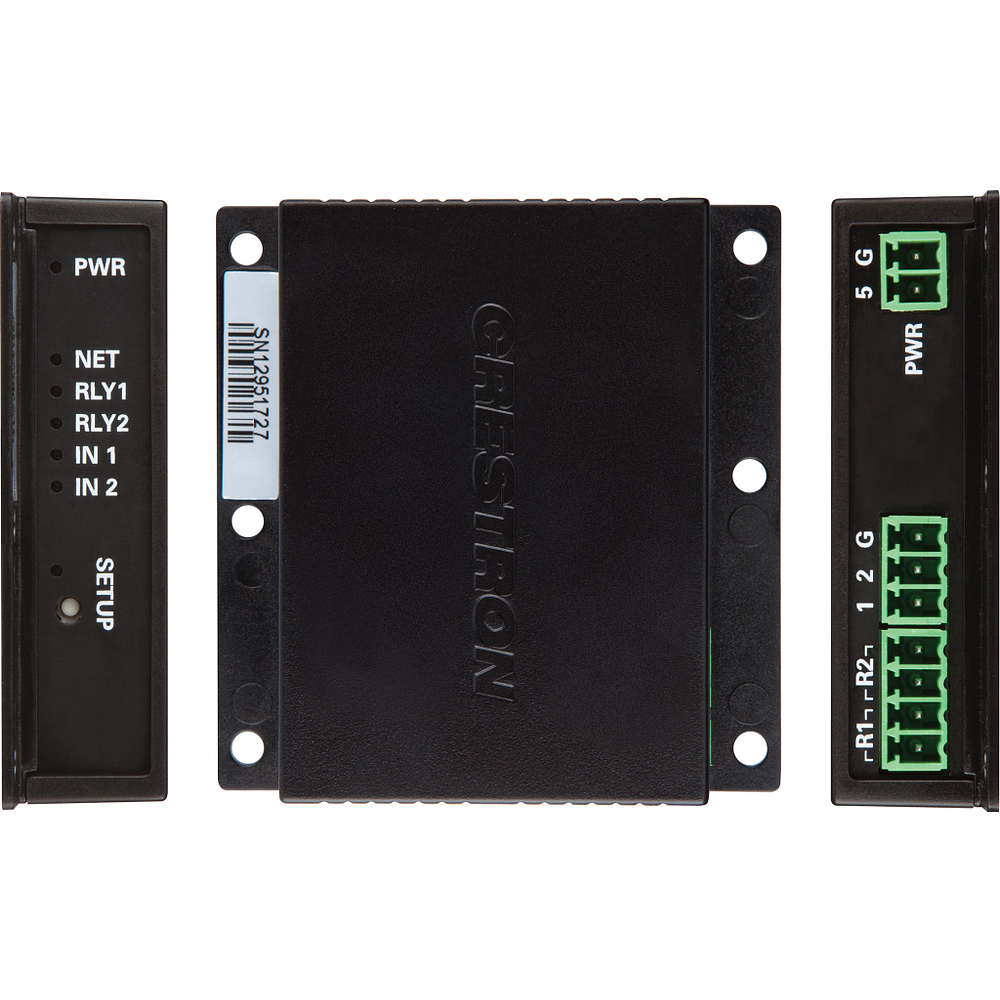

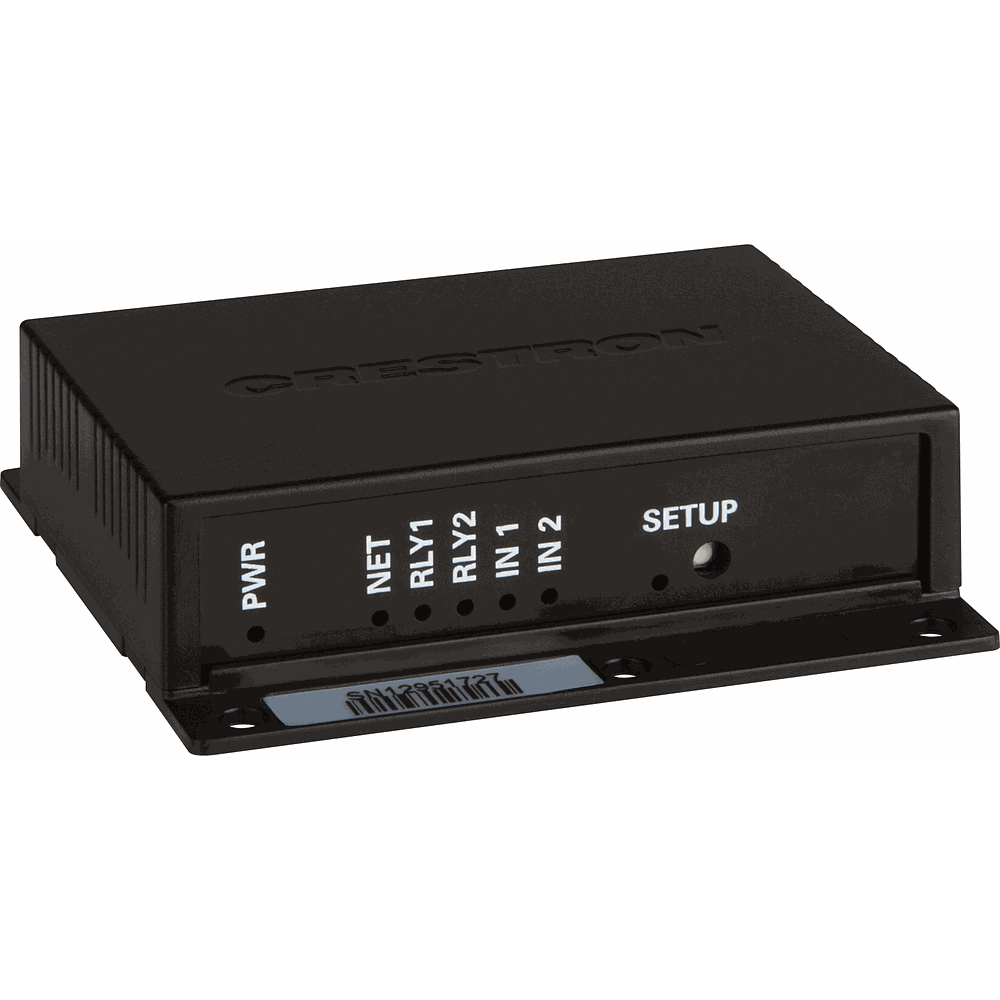

The digital inputs take 0-24 VDC with a 2.2k pull-up to 5 V and thresholds of 1.9 V high and 0.8 V low. Green LEDs indicate each relay closure and each low logic input, an amber NET LED confirms gateway communication, and a recessed setup button with red LED handles acquisition. The module surface mounts on two integral flanges and runs from the included PW-0510WUL power pack. It requires an infiNET EX gateway and works with both 2-Series and 3-Series control systems.

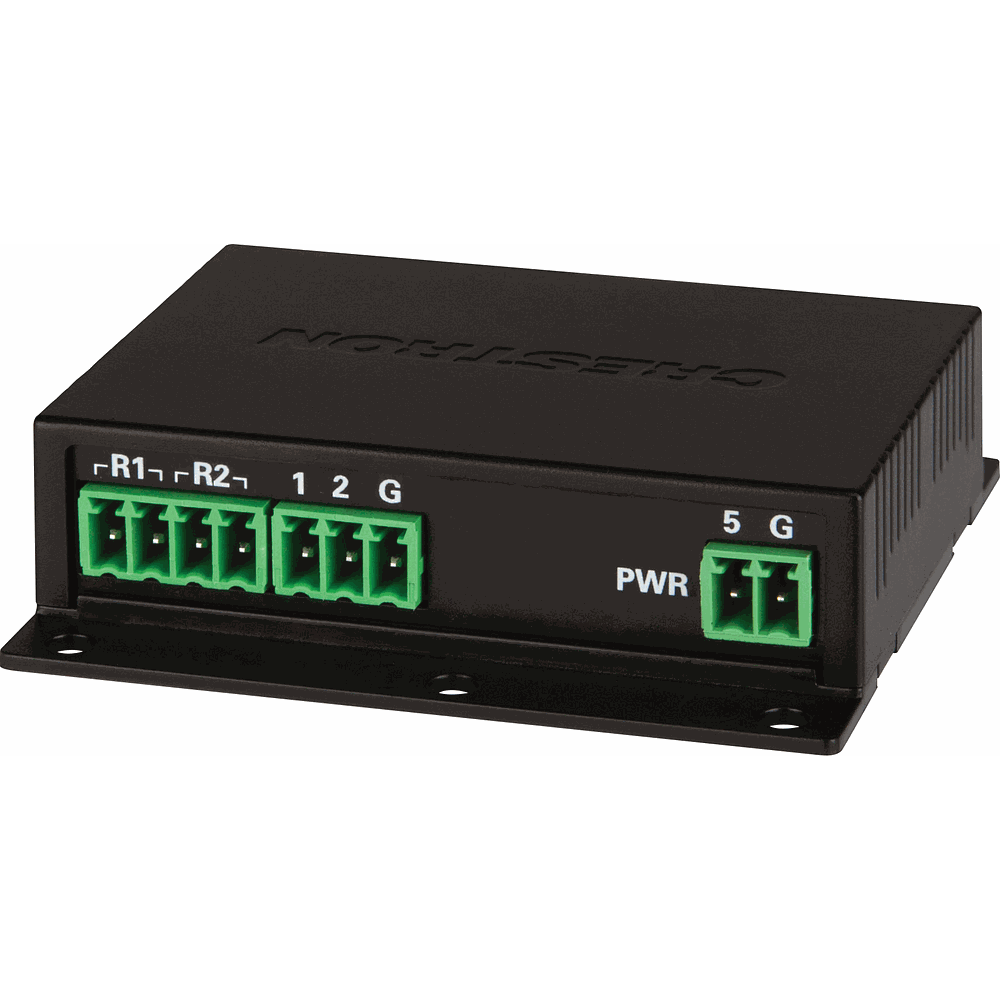

| Relays | (2) normally open isolated relays, 1 A at 30 VAC/DC, MOV arc suppression across contacts |
|---|---|
| Digital Inputs | (2) programmable, 0-24 VDC; threshold 1.9 VDC high / 0.8 VDC low; 2.2k ohm pull-up to 5 V |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4; gateway required |
| Wireless Range | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh device |
| Compatibility | Crestron 2-Series and 3-Series control systems |
| Power | PW-0510WUL power pack included; 100-240 VAC input, 1.2 A at 5 VDC output |
| Enclosure | Black plastic with (2) integral surface mounting flanges, vented sides |
| Dimensions | 0.68 in H x 2.58 in W x 2.49 in D (18 x 66 x 64 mm); 1.7 oz (46 g) |
