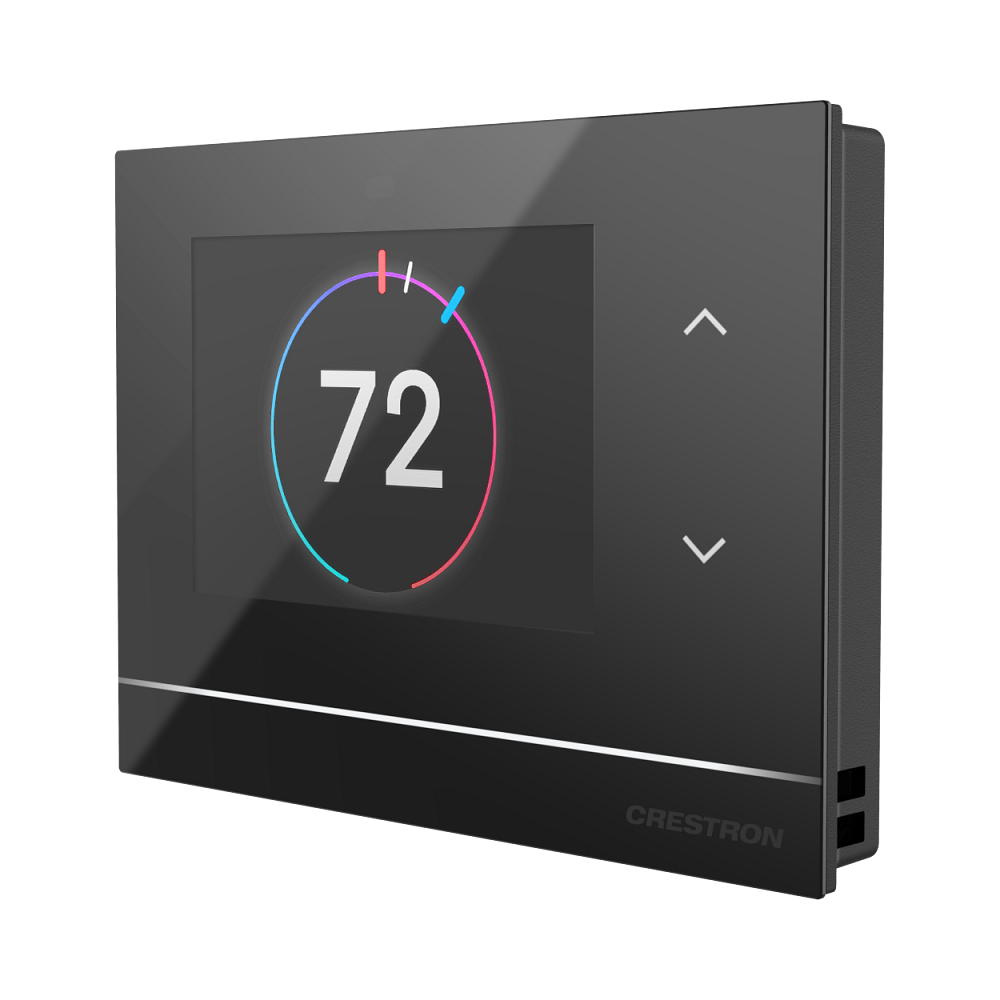

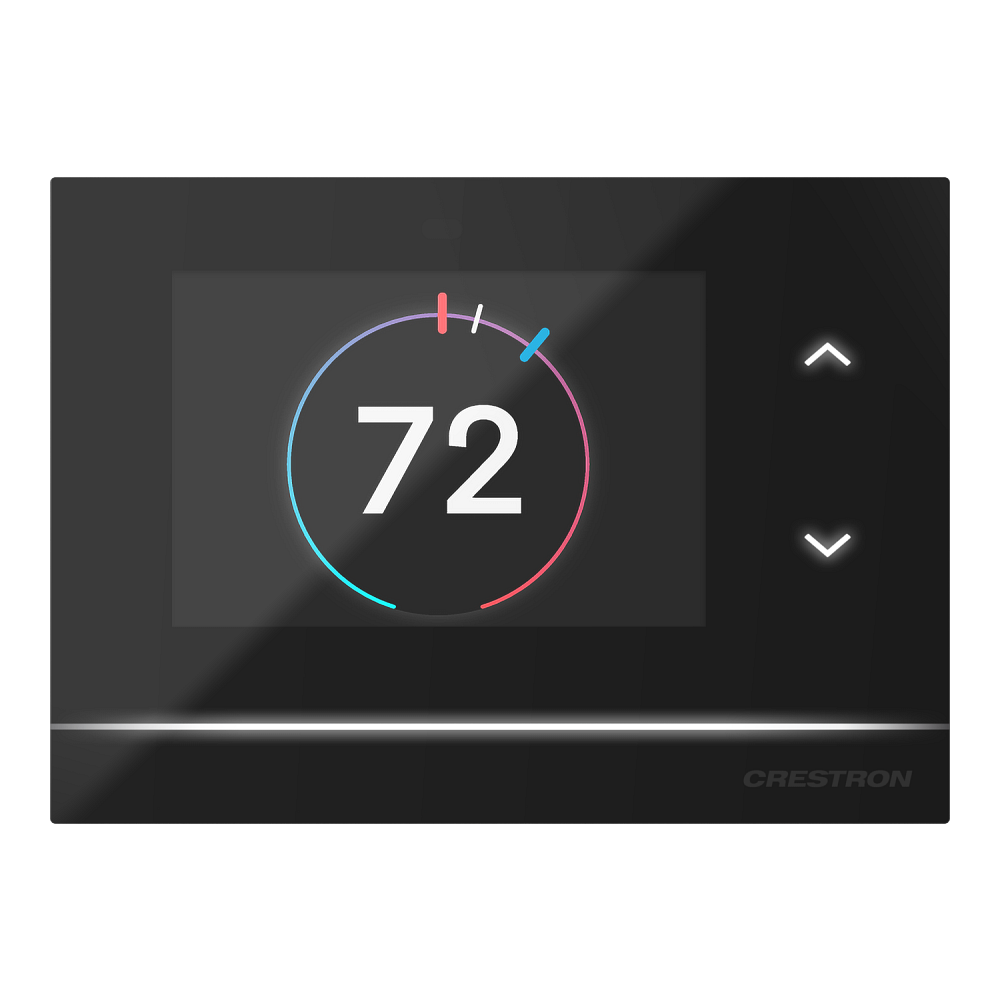

Crestron HZ-THSTAT Horizon Wi-Fi Thermostat with Humidistat
The HZ-THSTAT is a wall-mounted heating and cooling thermostat with an integrated humidistat. It drives two-stage heat and cool systems, two-stage heat pumps with two auxiliary heat stages, 2-pipe and 4-pipe fan coil units, floor warming and humidity systems, which covers most of what a residence or a small commercial space is running.
A 3.5 in. LCD touch screen handles configuration of system type, radiant floor, system performance, sensor setup and control settings. Proximity and ambient light sensors adjust the display so it neither glares in a dark hallway nor washes out in the sun. It connects over Wi-Fi and gains further capability as part of a complete Crestron automation system. Available in black, white or almond.
| Dimensions | 3.52 in. (89 mm) H x 4.90 in. (124 mm) W x 1.76 in. (45 mm) overall; 0.57 in. (14 mm) from wall surface when installed D |
|---|---|
| Indoor Temperature | 32 deg to 110 deg F (0 deg to 43 deg C); Provided by local or remote temperature sensor |
| Outdoor Temperature | -40 deg to 170 deg F (-40 deg to 77 deg C); Provided by remote temperature sensor... |
| Auto | 38 deg to 99 deg F (3 deg to 37 deg C) |
| Power Consumption | 2.5 W @ 24VAC |
| Wi-Fi communications | 802.11/b/g/n (2.4 GHz) |
| Up | Raises the room's setpoint by 1F, 1C, or 0.5C, depending on the active temperature scale |
| Display | Transflective LCD, backlit |
