Crestron MPC4-102-B 4-Series Media Presentation Controller 102
The MPC4-102-B puts a complete 4-Series control processor behind a nine-button wall plate, so a classroom or huddle room gets source selection, display control and volume without a separate processor anywhere in the room. It runs native .AV Framework software, supports up to ten simultaneous programs, and carries a battery-backed real-time clock. Nine projected capacitive buttons take any of 25 prelabeled icon chips or five blackout chips, all included.

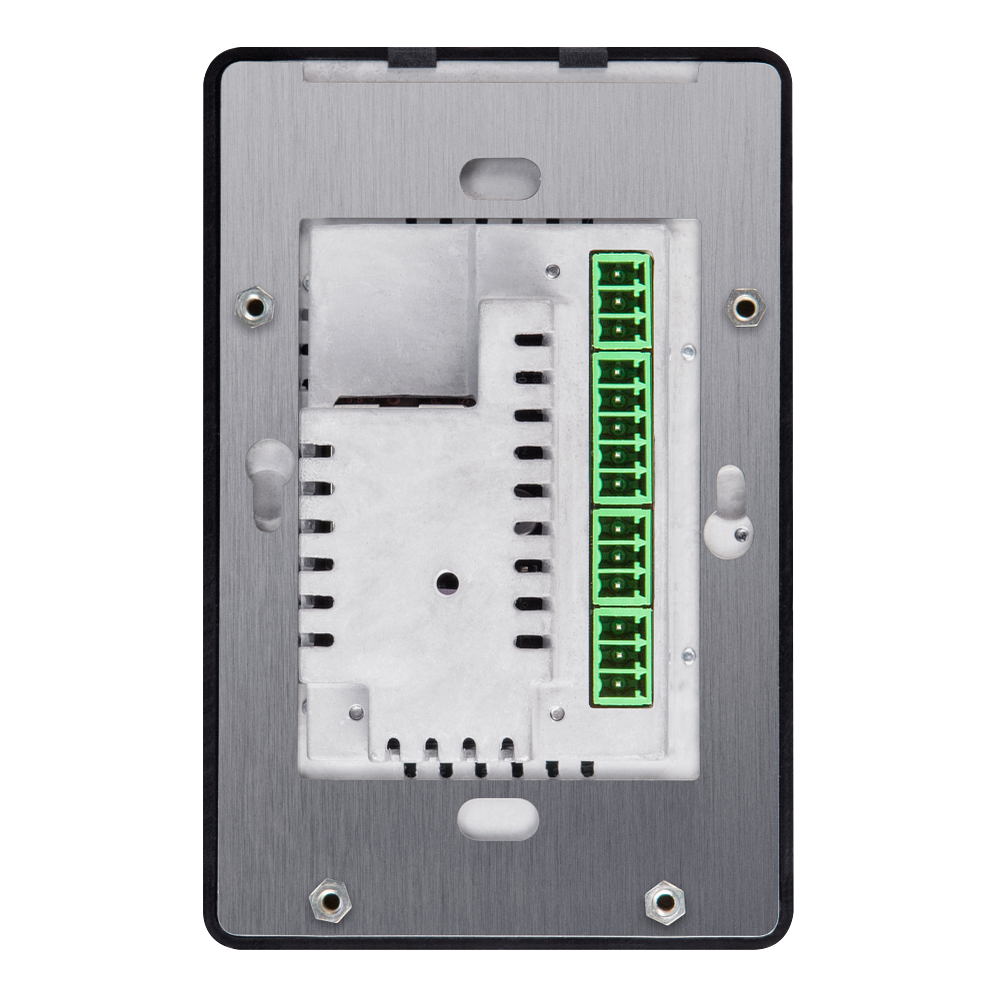

Behind the plate are the control ports that make it self-sufficient: a bidirectional RS-232 COM port, an IR/serial port and two Versiport digital or analogue I/O on detachable terminal blocks, two isolated relays rated 1 A at 30 VAC/DC, and a Cresnet master port. A 940 nm proximity sensor adjustable from 8 to 35 in wakes the panel on approach and a photosensor handles backlight brightness. It flush mounts in a 1-gang U.S. box, in a 2-gang box with the MPC3-101/102/201-RMB bracket, or in a rectangular lectern cutout with the bracket provided, and runs from PoE at 4.5 W typical.
| Control Engine | Crestron 4-Series control processor; up to 10 simultaneous programs; native .AV Framework; 2 GB SDRAM |
|---|---|
| Buttons | (9) projected capacitive assignable buttons; 25 prelabeled icon chips and 5 blackout chips included |
| Control Ports | (1) bidirectional RS-232, (1) IR/serial, (2) Versiport digital/analogue I/O, (2) isolated relays 1 A at 30 VAC/DC |
| Cresnet | (1) 3-pin detachable terminal block, master port |
| Ethernet | (1) 1000BASE-TX RJ-45, PoE and PoE+ powered device; 802.1X, SNMP, BACnet/IP, XiO Cloud client |
| Proximity Sensor | Eye-safe 940 nm laser ranging sensor, adjustable 8 to 35 in (20 to 90 cm) |
| Power | IEEE 802.3at Type 1 (802.3af compatible) Class 0 PoE; 4.5 W typical, 2.8 W idle |
| Mounting | 1-gang U.S. box; 2-gang with MPC3-101/102/201-RMB; lectern cutout 2.85 x 2.04 in |

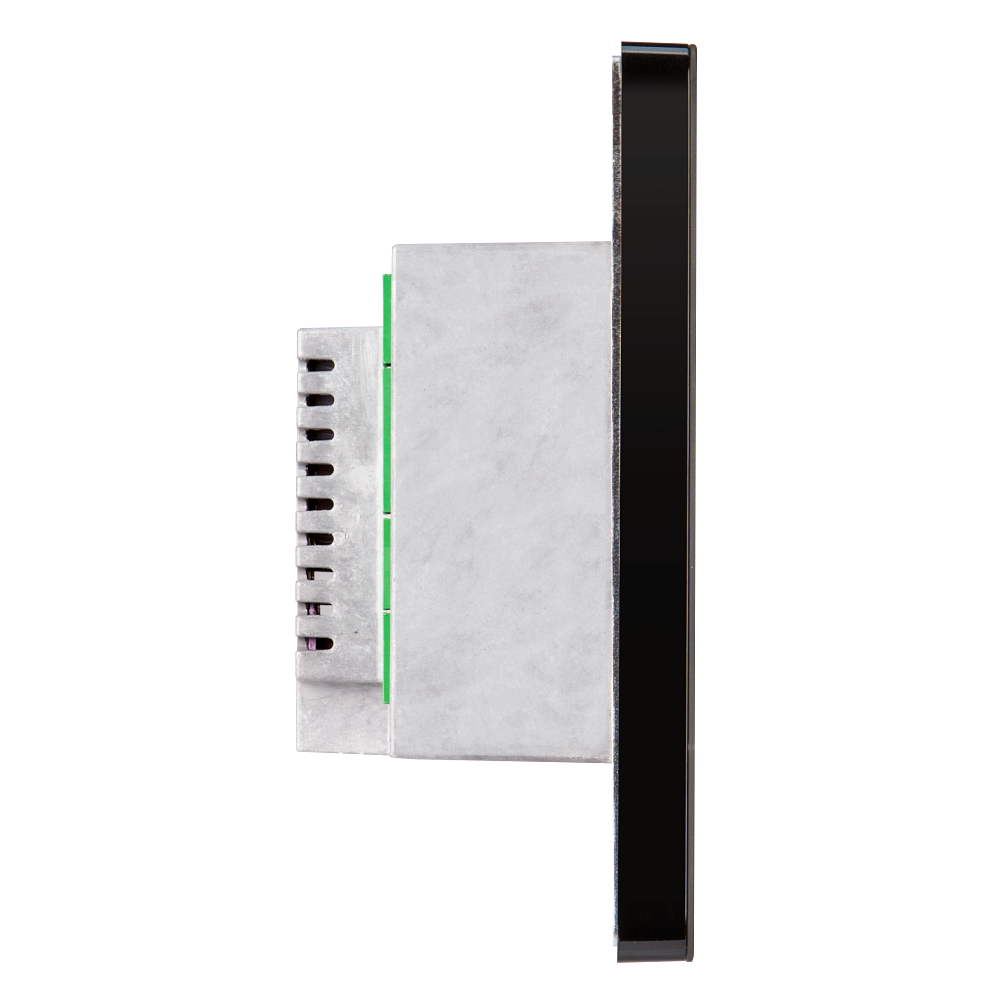

| Dimensions | 4.62 in H x 3.02 in W x 2.02 in D (117 x 77 x 51 mm); 9.59 oz (272 g) |
