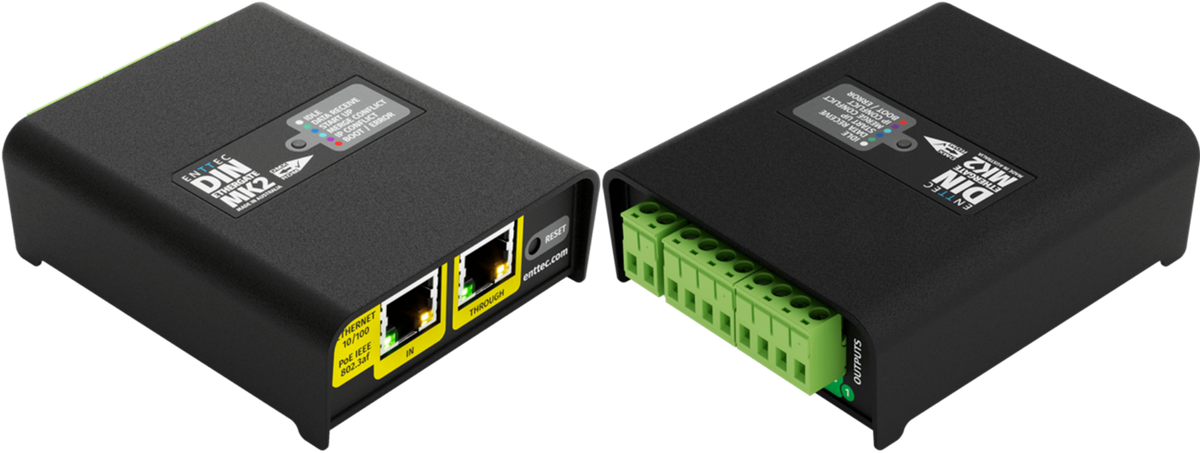

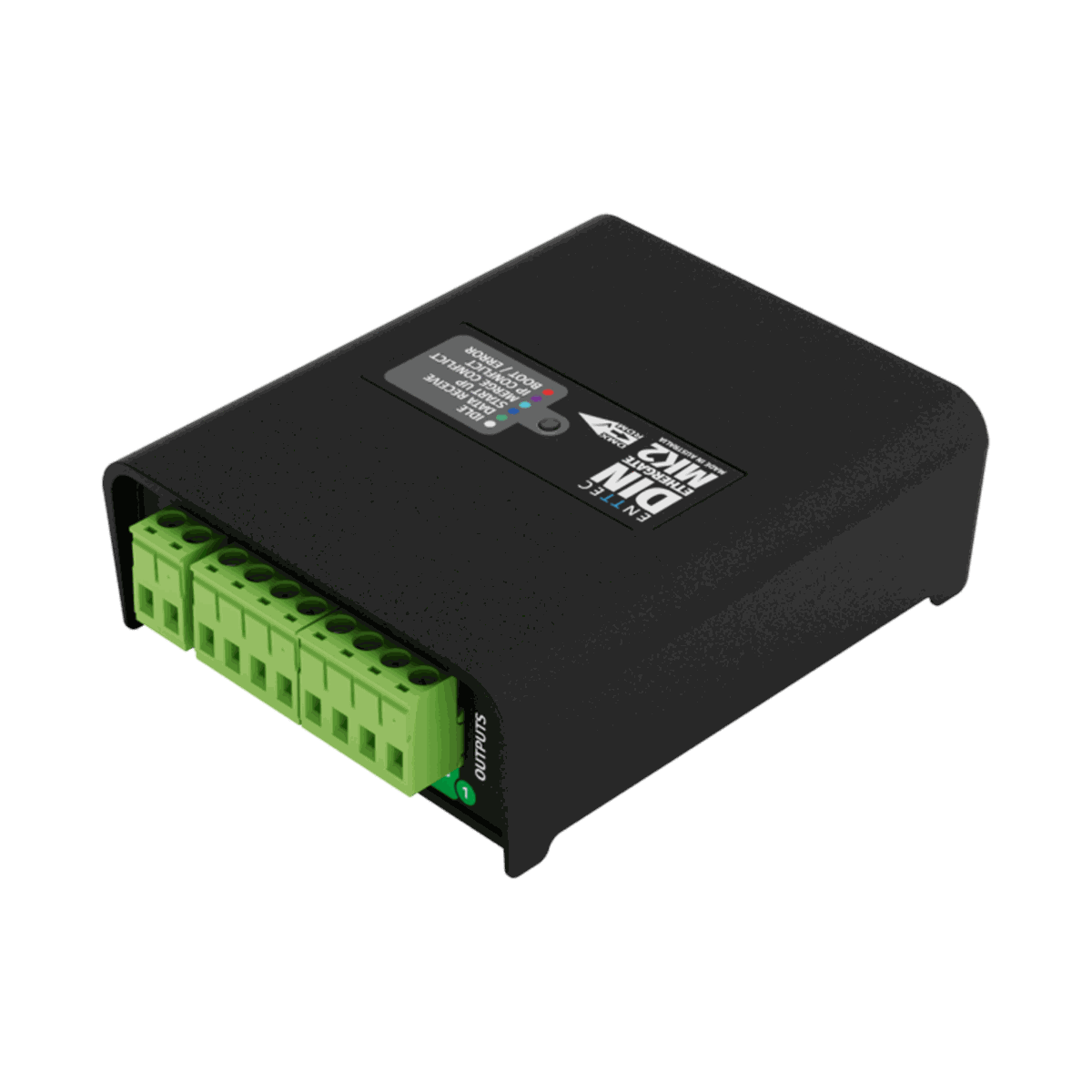

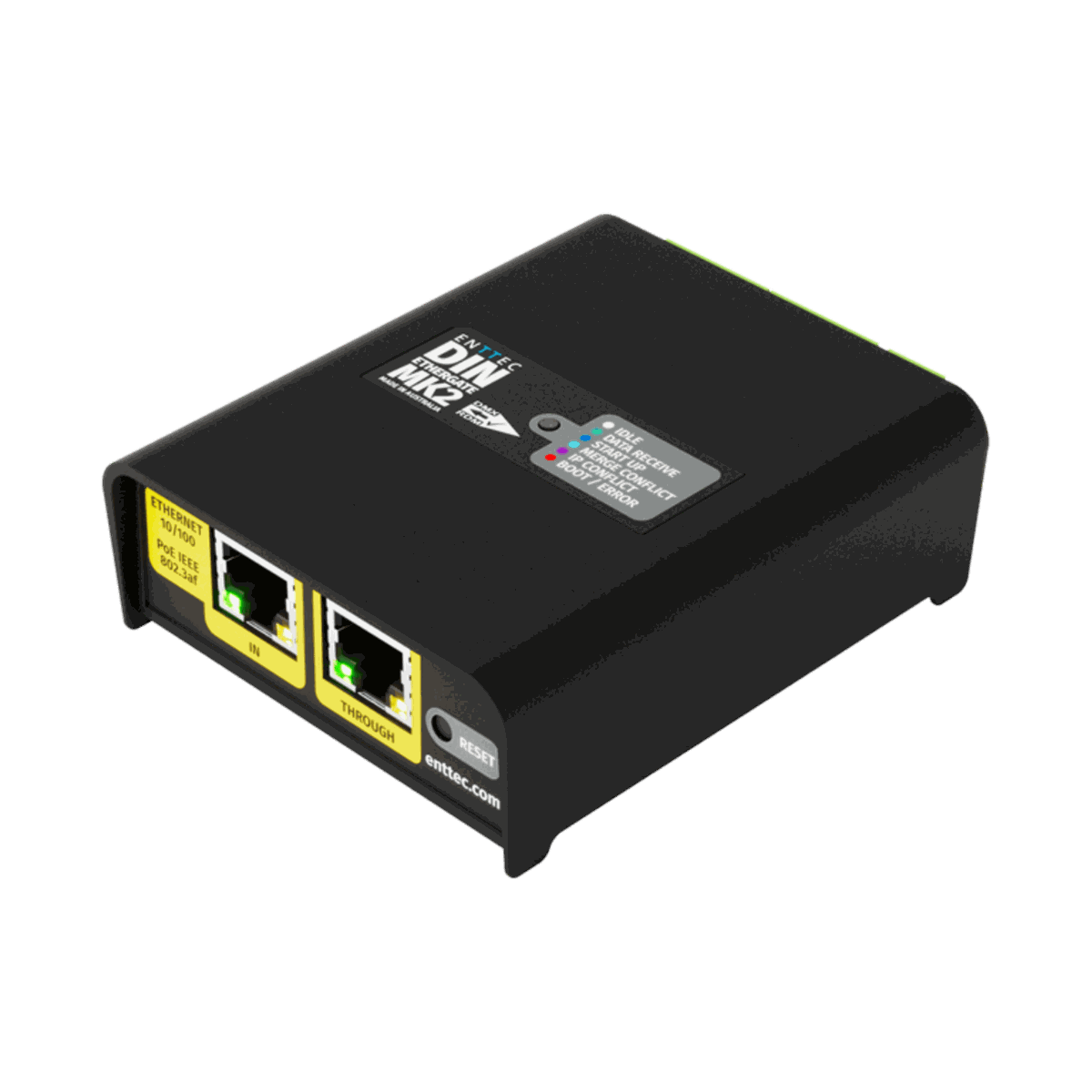

Crestron DIN-SACN-DMX ENTTEC DIN Ethergate Mk2 - Ethernet to DMX Converter
The Crestron DIN-SACN-DMX is an ENTTEC DIN Ethergate Mk2 - Ethernet to DMX Converter. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
The Ethernet port is sACN, Art-Net, ESP, RDM. Mounting is TS35 DIN-Rail mount, occupies 4 DIN module spaces (72 mm). Housing: ABS Plastic. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Ethernet | sACN, Art-Net, ESP, RDM |
|---|---|
| Mounting | TS35 DIN-Rail mount, occupies 4 DIN module spaces (72 mm) |
| Housing | ABS Plastic |
| Temperature | 32 deg to 122 degF (0 deg to 50 degC) |
| DMX | USITT DMX512-A, ANSI E1.20 RDM |
| OUTPUTS | (2) 4-pin 5.1 mm detachable terminal blocks; DMX output or input |
| POWER | (1) 2-pin 3.5 mm detachable terminal block; 12-24VDC power input |
| ETHERNET IN | (1) 8-pin RJ-45 connector, female; 10BASE-T/100BASE-TX Ethernet LAN port |
