Crestron MPC4-201-B 4-Series Media Presentation Controller 201
The MPC4-201-B is the compact member of the 4-Series controller line: a 3.42 in square plate carrying six programmable capacitive buttons and a full control processor, sized to drop into the 1-gang European DIN 49073 box that an existing MPC3 series controller already occupies. It runs native .AV Framework, supports up to ten simultaneous programs and carries 2 GB of SDRAM.

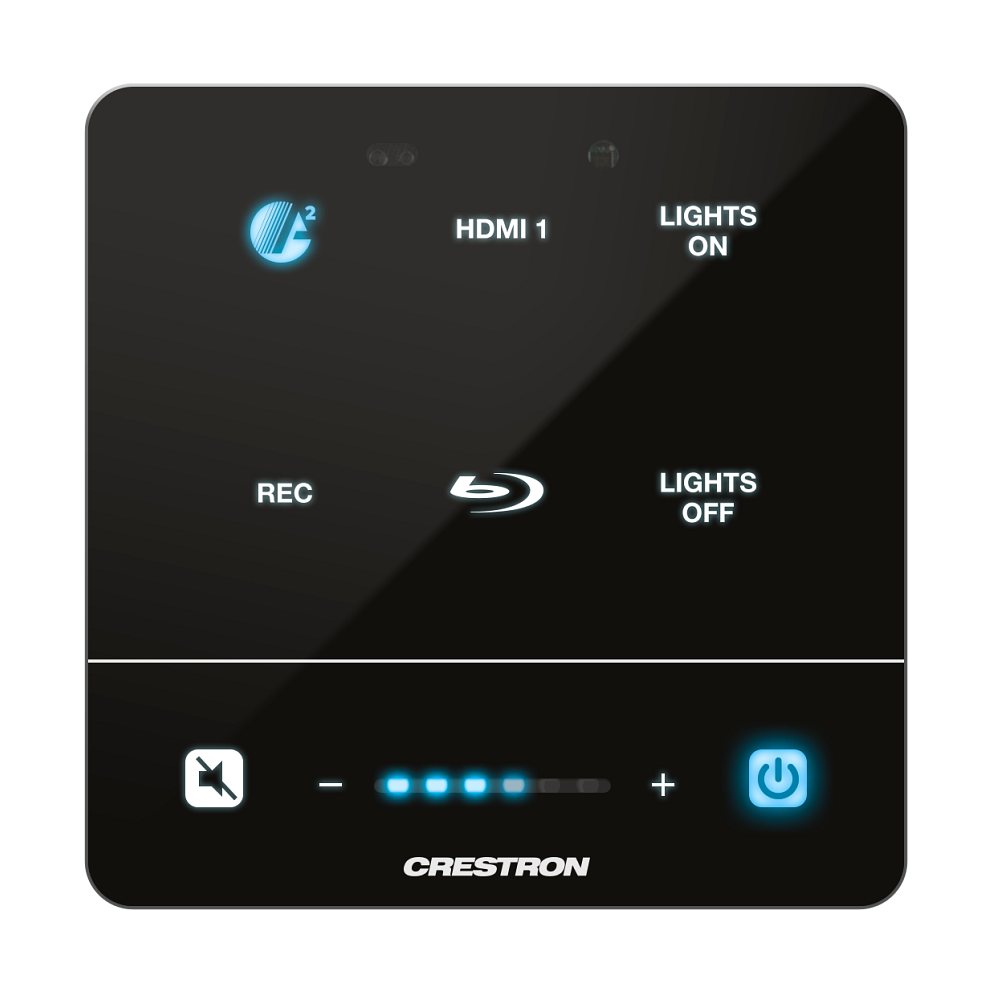

The six assignable buttons take any of 25 prelabeled icon chips or five blackout chips, both included, with custom laser-etched chips available separately, and a mute button, plus and minus volume pair, blue volume bargraph and power button sit alongside them. A 940 nm proximity sensor wakes the panel from 8 to 35 in and a photosensor drives three levels of backlight brightness. Power is PoE at 3 W typical over gigabit Ethernet. With the MPC3-101/102/201-RMB bracket it retrofits into a 2-gang U.S. box, and the MPC3/MPB3-TTK-SQR-B kit makes it a tabletop unit.
| Control Engine | Crestron 4-Series control processor; up to 10 simultaneous programs; native .AV Framework; 2 GB SDRAM |
|---|---|
| Buttons | (6) projected capacitive assignable buttons; 25 prelabeled icon chips and 5 blackout chips included |
| Additional Controls | Mute, volume up and down, power; blue LED multisegment volume bargraph |

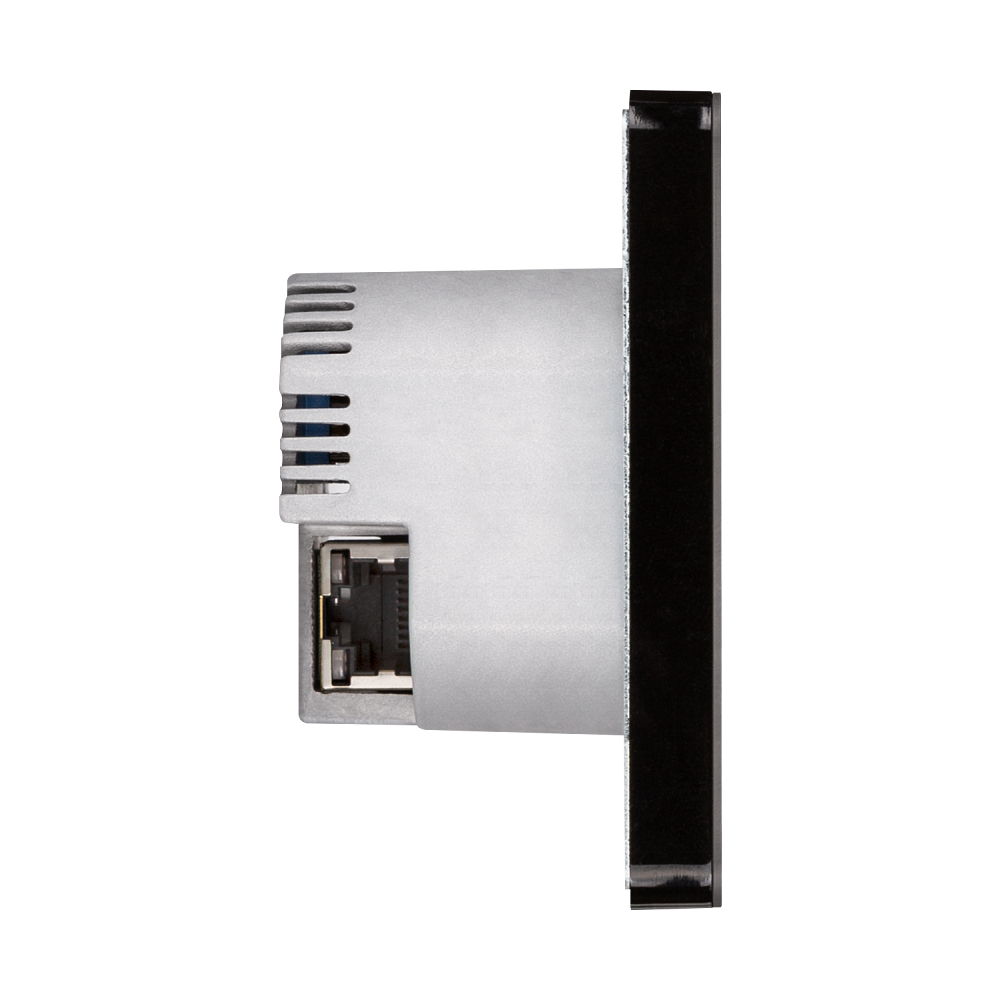

| Ethernet | (1) 1000BASE-TX RJ-45, PoE and PoE+ powered device; 802.1X, SNMP, BACnet/IP, XiO Cloud client |
| Proximity Sensor | Eye-safe 940 nm laser ranging sensor, adjustable 8 to 35 in (20 to 90 cm) |
| Power | IEEE 802.3at Type 1 (802.3af compatible) Class 0 PoE; 3 W typical |

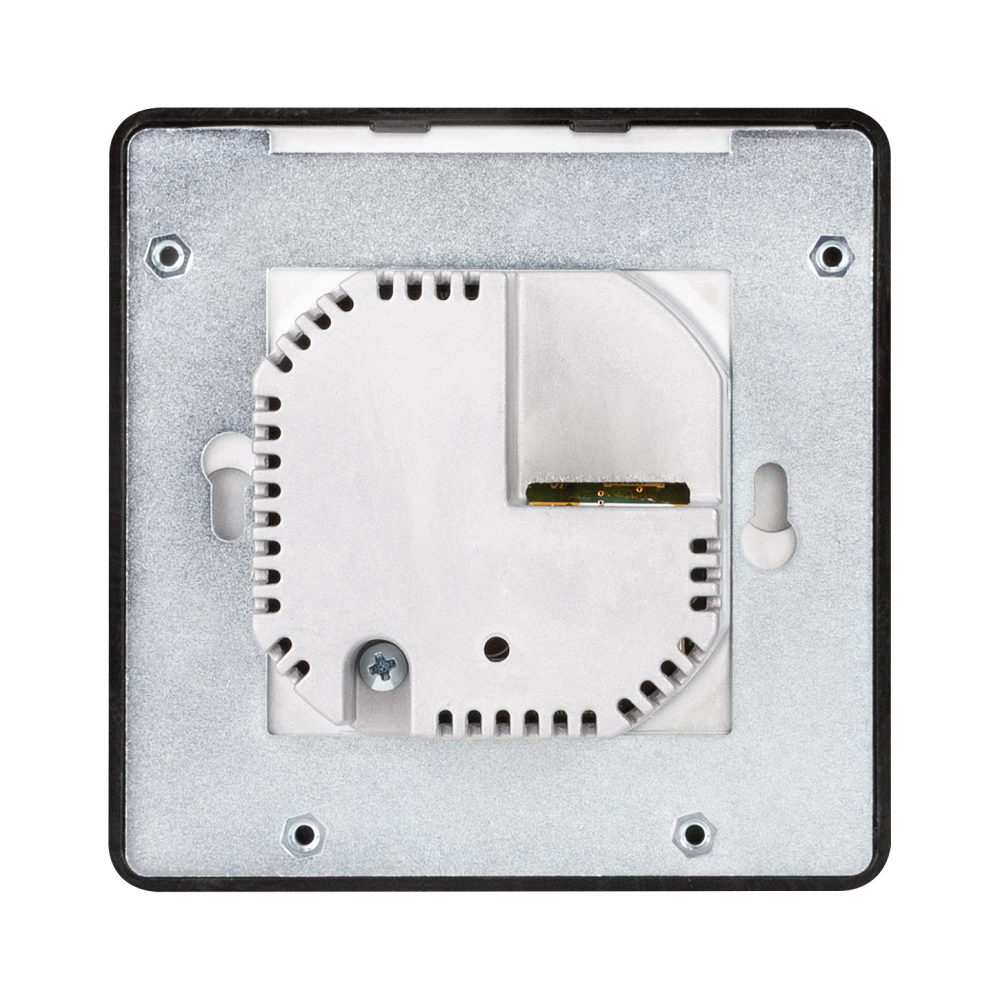

| Mounting | 1-gang European DIN 49073 box; 2-gang U.S. box with MPC3-101/102/201-RMB; lectern cutout 2-1/16 in square |
| Dimensions | 3.42 in H x 3.42 in W x 1.87 in D (87 x 87 x 48 mm); 7.3 oz (208 g) |
