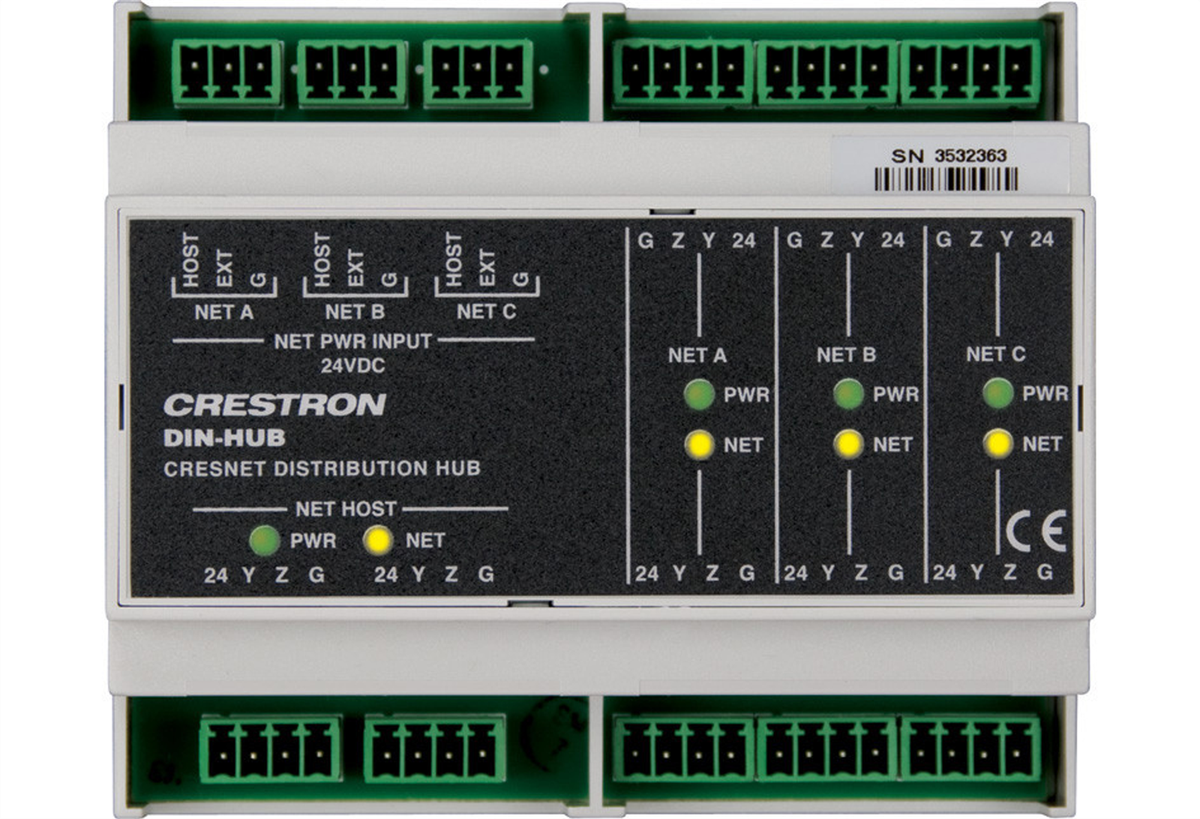

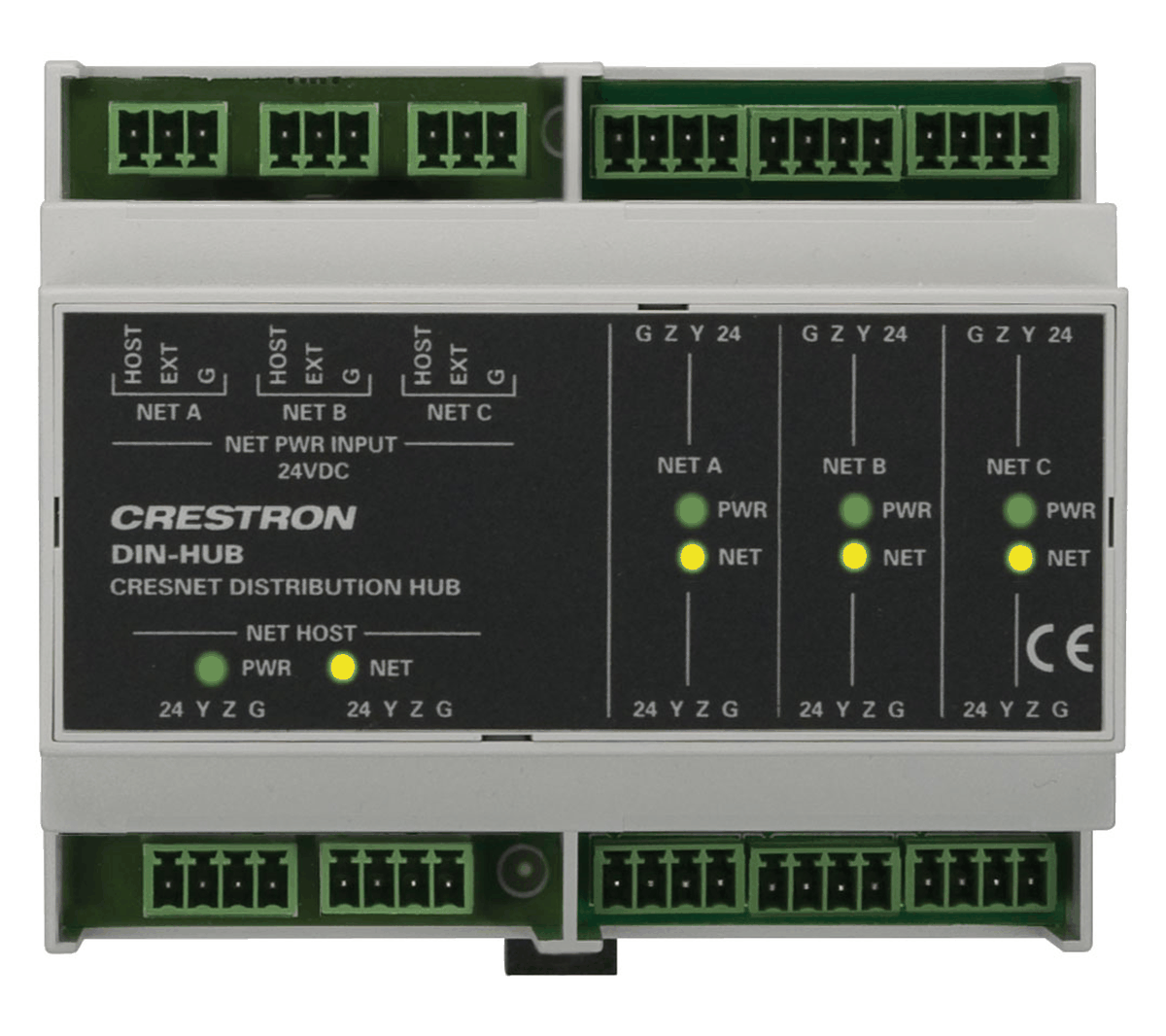

Crestron DIN-HUB DIN Rail Cresnet Distribution Hub
The Crestron DIN-HUB is a DIN Rail Cresnet Distribution Hub. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Cresnet: 0.6 Watts (0.03 Amps @ 24 Volts DC). Heat Dissipation: 2 BTU/hr. Temperature: 32 deg to 104 degF (0 deg to 40 degC). Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Cresnet Power Usage | 0.6 Watts (0.03 Amps @ 24 Volts DC) |
|---|---|
| Heat Dissipation | 2 BTU/hr |
| Temperature | 32 deg to 104 degF (0 deg to 40 degC) |
| NET HOST | (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Connects to Master NET port of DIN-AP2 or other control system, and loops thru to additional DIN Rail Cresnet devices |
| NET A - C | (6) 4-pin 3.5mm detachable terminal blocks comprising (2) Cresnet ports (paralleled) per each of (3) segments |
| NET HOST, PWR | (1 green) Indicates Cresnet power is supplied to unit via either NET HOST port |
| NET HOST, NET | (1 yellow) Indicates Cresnet bus activity at either NET HOST port |
| NET A - C, PWR | (3 green) Indicate Cresnet power is available at NET ports of corresponding hub segment |
