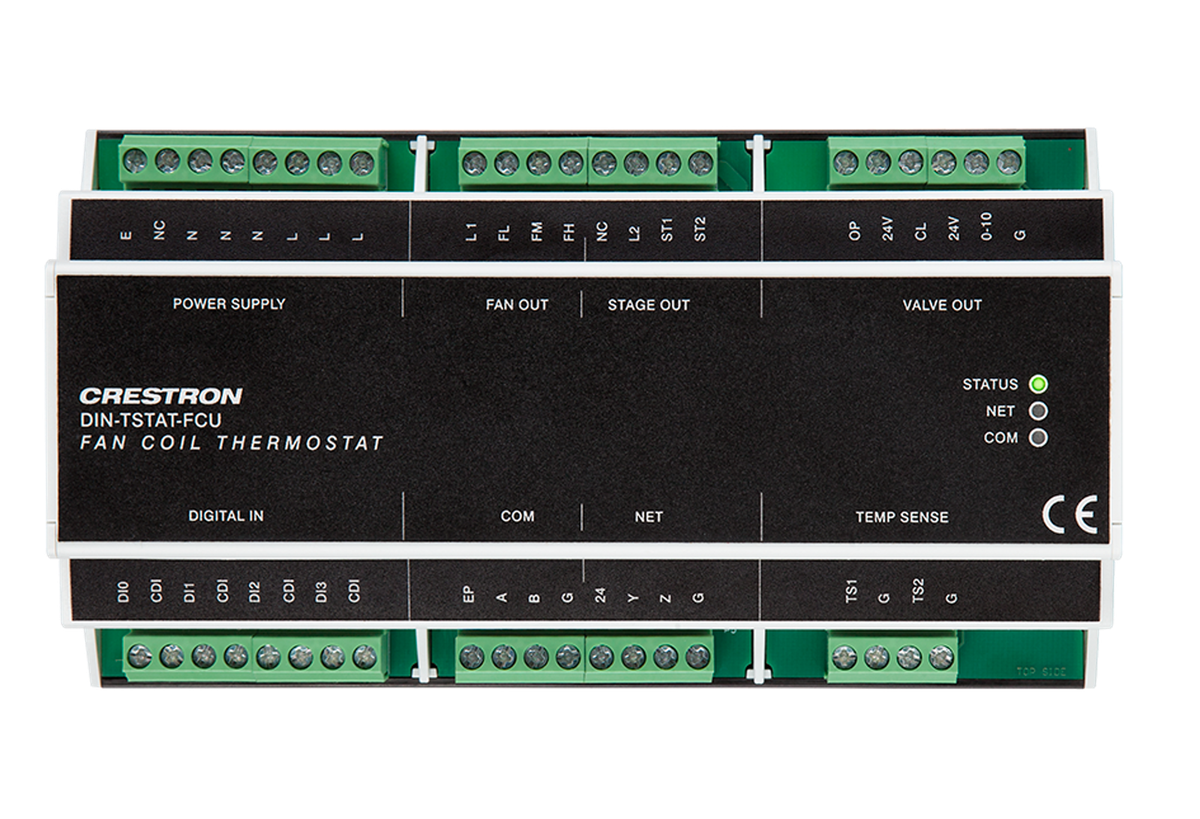

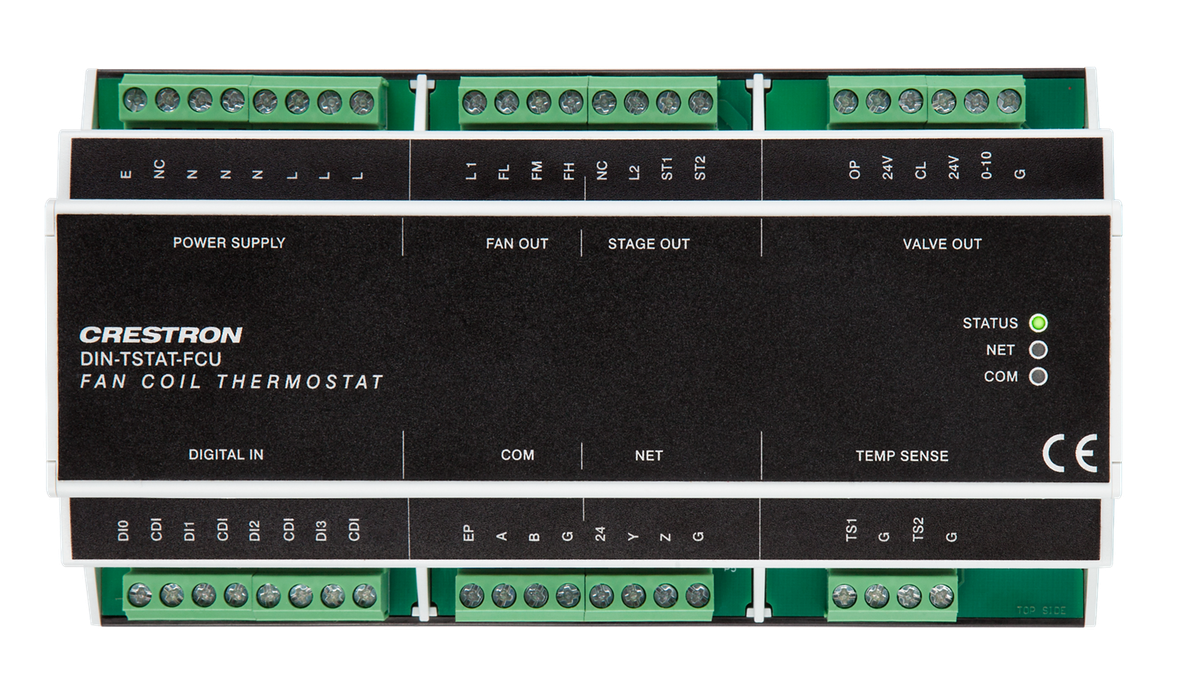

Crestron DIN-TSTAT-FCU DIN Rail Heating & Cooling Fan-Coil Thermostat
The Crestron DIN-TSTAT-FCU is a DIN Rail Heating & Cooling Fan-Coil Thermostat. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Cresnet: Cresnet slave mode. Mounting: 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm). NET: (4) Captive screw terminals; Cresnet slave port. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Cresnet | Cresnet slave mode |
|---|---|
| NET | (4) Captive screw terminals; Cresnet slave port |
| Mounting | 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm) |
| Housing | Plastic |
| Temperature | -10 deg to 55 deg C (14 deg to 131 deg F) |
| Indoor Temperature | 0 deg to 100 deg C (32 deg to 212 deg F) in 0.1 deg increments |
| USB | USB device (for setup) |
| POWER SUPPLY | (8) Captive screw terminals; 230 VAC line power input and earth ground |
