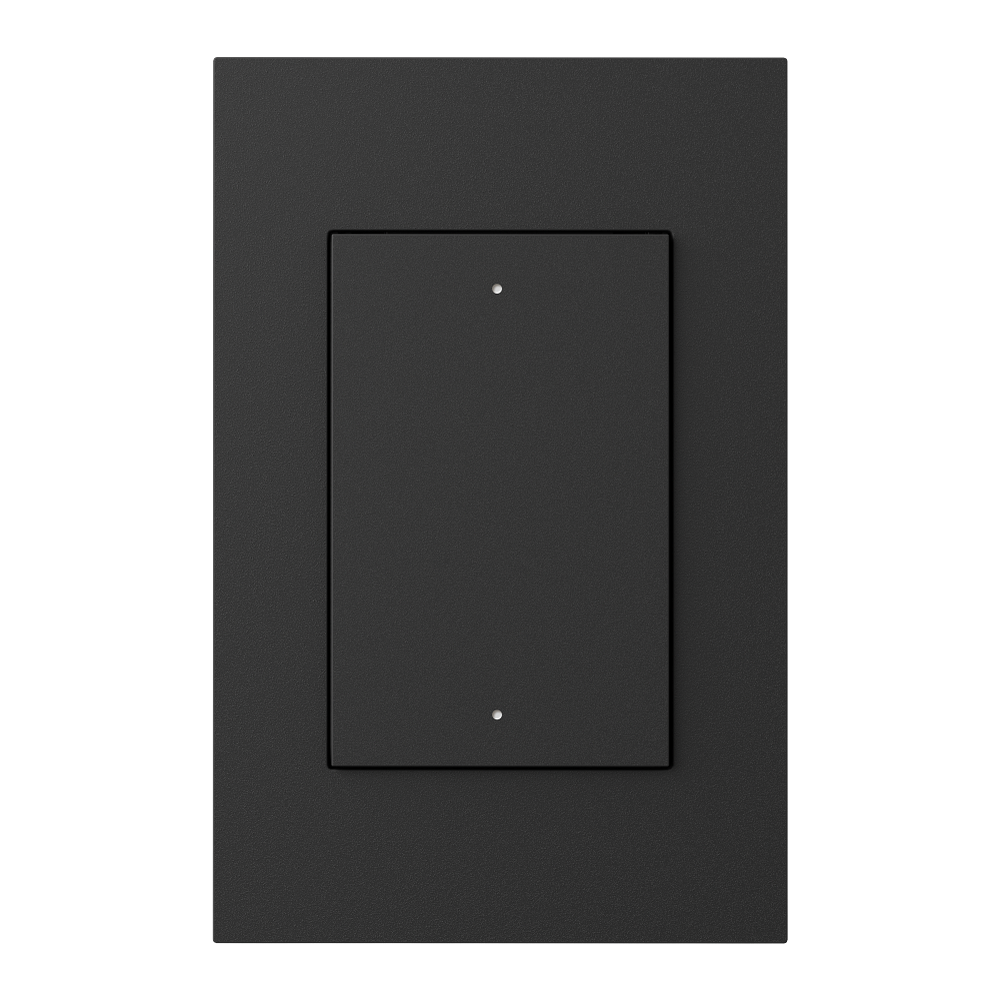

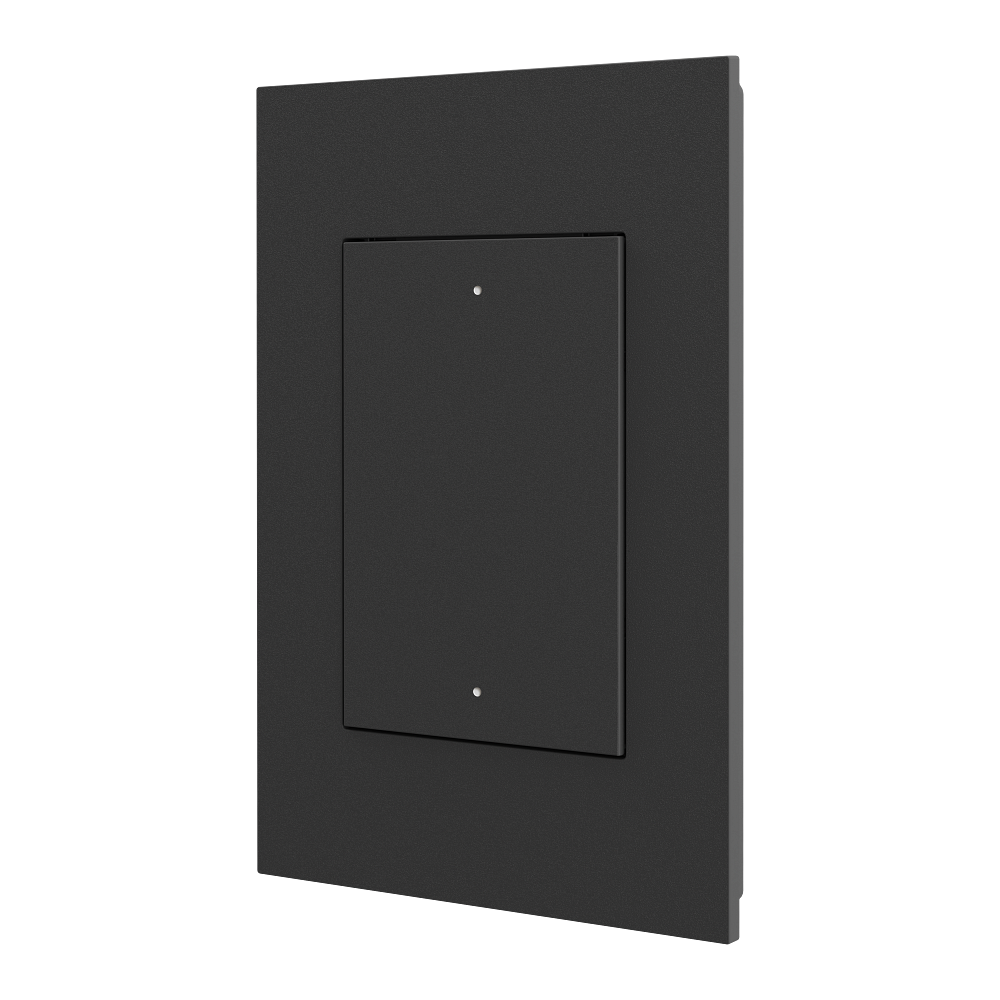

Crestron HZ2-AUX Horizon 2 In-Wall Multiway Remote
The HZ2-AUX is the Horizon 2 in-wall multiway remote: the companion device that controls a Horizon 2 dimmer or switch from another location in three-way and four-way wiring. Its face matches the rest of the Horizon 2 dimmers, switches and keypads, so a retrofit run of switches reads as one family down the wall.
It accepts the Style 6 button assembly, a large rocker, and has no LED backlight; where the second position needs any button style or backlighting, use an HZ2-KPEX instead. Note that the HZ2-AUX cannot switch a load itself, and must be wired with a primary device. Maximum wire length between the HZ2-AUX and the primary device is 250 ft (77 m). Choose default engraving or custom laser-etched engraving, in textured white, black or almond, black or white glass, or brushed black, brushed brass, dark bronze or dark nickel metal.
| Power Requirements | 120VAC, 50/60 Hz |
|---|---|
| Push button | (2) Push buttons, located under the button assembly; Push buttons are actuated by the installed button assembly |
| LED Feedback | None; For multiway control using a device that provides LED backlighting, use a HZ2-KPCN or HZ2-KPEX |
| Wire Distance | Maximum wire length of 250 ft (77 m) between HZ2-AUX and Primary Device |

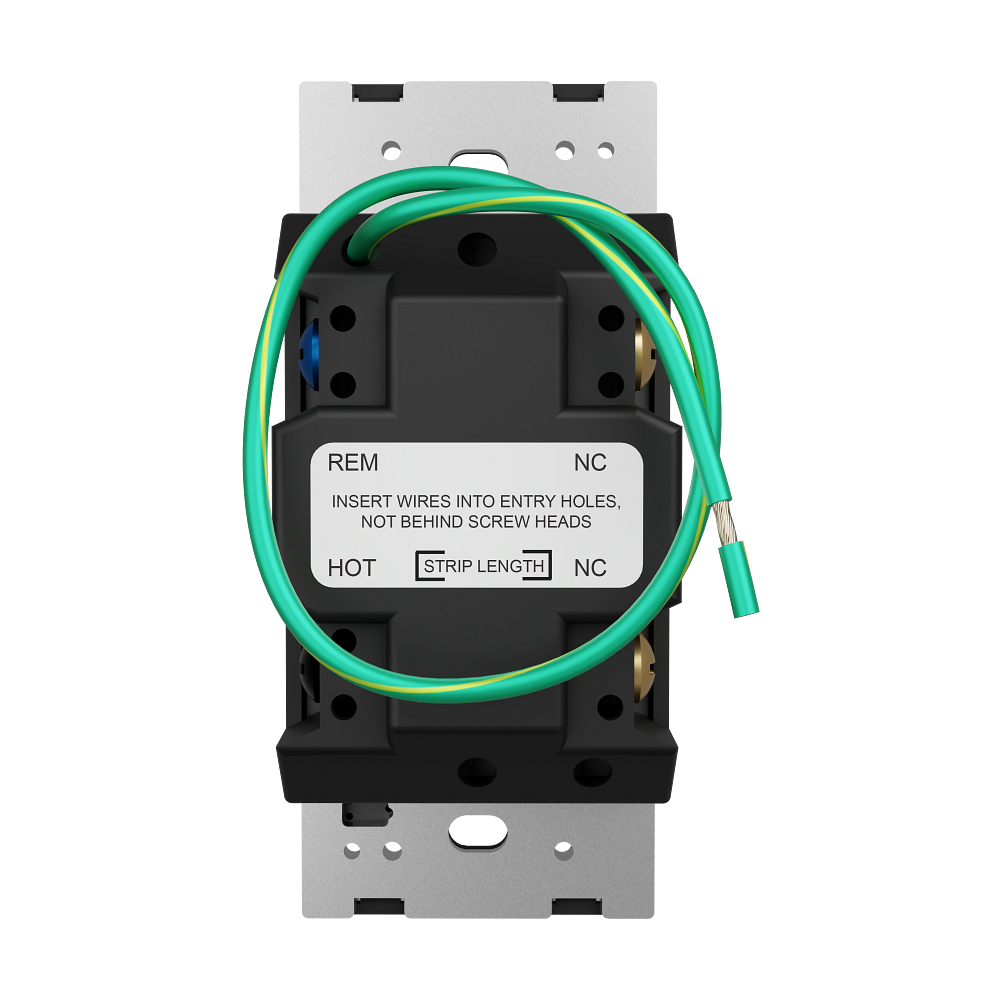

| Line | (1) Screw clamp terminal, consists of (2) wire inserts and (1) black screw head; Line power input... |
| Temperature | 32 deg to 86 deg F (0 deg to 30 deg C) |
| Mounting | Mounts in a 1- to 4-gang U.S. electrical box (not included); 3.5 in. (26 mm) electrical box depth recommended... |
| Weight | 7.4 oz (208 g) |
