Crestron CNXHUB Cresnet Hub
A large Cresnet installation eventually outgrows a single bus, and the CNXHUB is how it gets split. Six 4-pin 3.5 mm detachable terminal blocks, NET A through F, each carry their own isolated segment, so a fault or a heavy load on one branch does not pull the rest of the network down with it. Isolation is also what makes a long building run practical: each segment is a separate electrical domain rather than one very long shared pair.

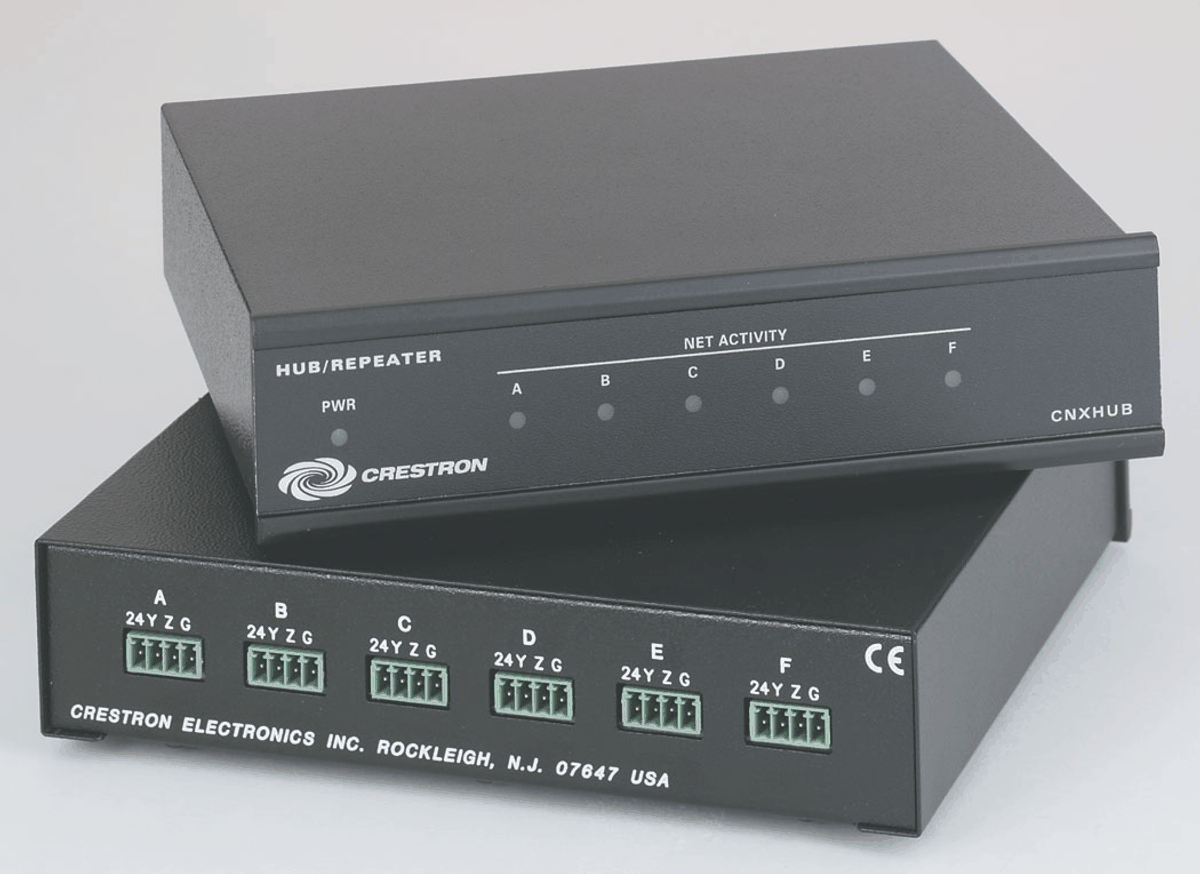

Six yellow activity LEDs, one per port, show traffic on the corresponding segment, and a green PWR LED confirms the hub is receiving Cresnet power through any NET port. It draws 2 watts (0.084 A at 24VDC) from the bus itself, so there is nothing else to plug in. The metal chassis has a black front panel with a polycarbonate label overlay and can sit freestanding on the included adhesive feet, mount under a table, or occupy 1RU as a half-width rack unit with the appropriate kit.
| Segments | (6) isolated Cresnet hub segments |
|---|---|
| NET A - F | (6) 4-pin 3.5 mm detachable terminal blocks, one port per segment |
| Indicators | (1) green PWR LED, (6) yellow per-port Cresnet activity LEDs |
| Cresnet Power Usage | 2 W (0.084 A at 24VDC) |
| Operating Temperature | 41 to 113 deg F (5 to 45 deg C), 10% to 90% RH non-condensing |
| Mounting | Freestanding, under-table, or 1RU half-width rack (kits sold separately) |
| Dimensions | 1.70 in. H x 7.07 in. W x 6.32 in. D (44 x 180 x 161 mm) |
