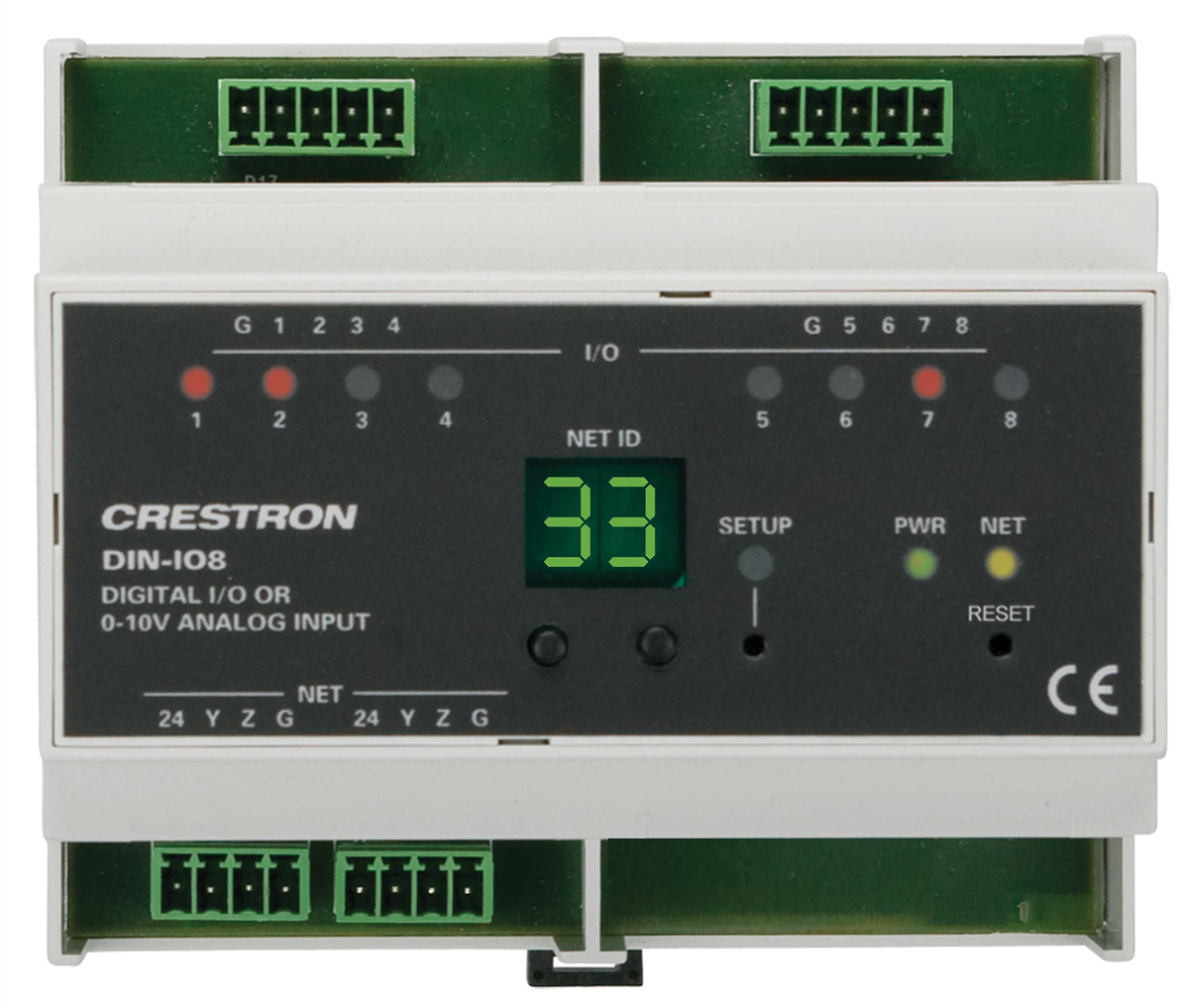

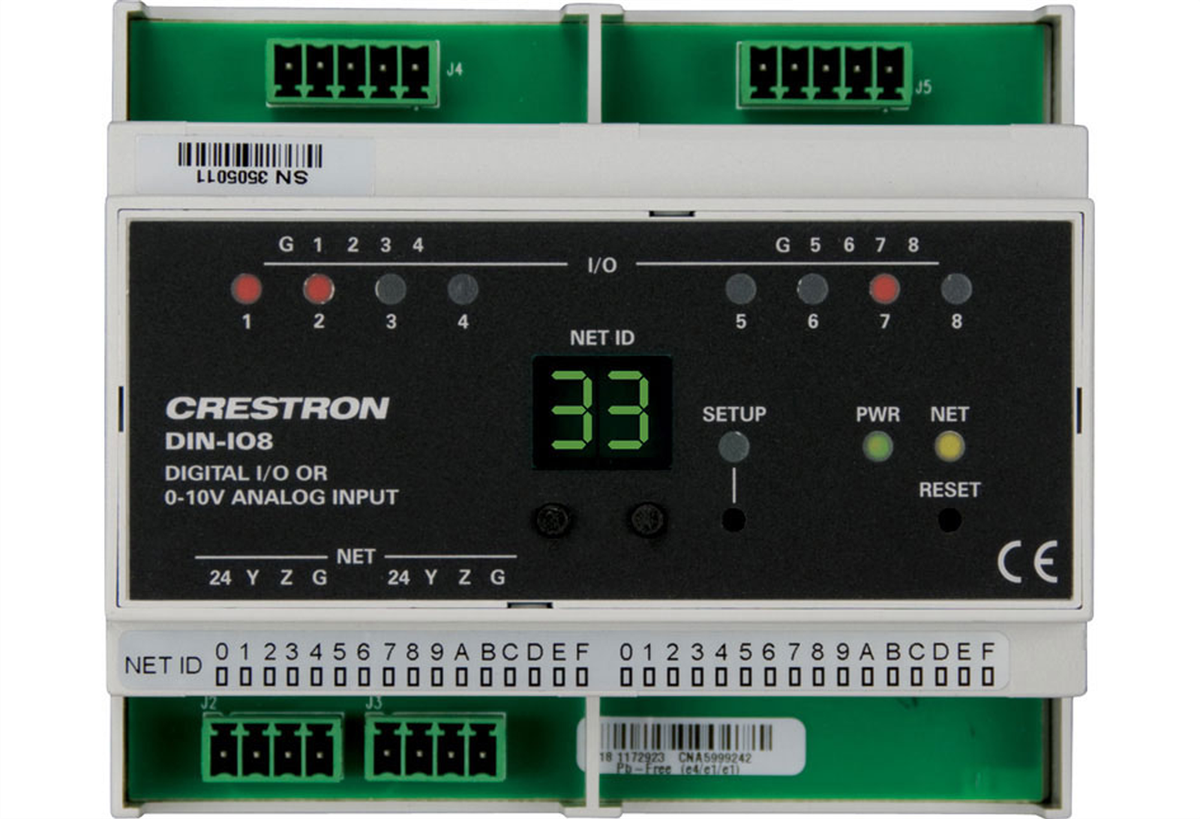

Crestron DIN-IO8 DIN Rail Versiport Module
The Crestron DIN-IO8 is a DIN Rail Versiport Module. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Cresnet: 1.5 Watts (0.06 Amps @ 24 Volts DC). NET: (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port. Heat Dissipation: 5 BTU/hr. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Cresnet Power Usage | 1.5 Watts (0.06 Amps @ 24 Volts DC) |
|---|---|
| NET | (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port |
| Heat Dissipation | 5 BTU/hr |
| Temperature | 32 deg to 104 degF (0 deg to 40 degC) |
| I/O 1 - 8 | (8) Red LEDs, indicate status of Versiport I/O ports |
| Height | 3.71 in (9.42 cm) |
| Width | 4.18 in (10.60 cm) |
| Depth | 2.35 in (5.95 cm) |
