The HDA-8100 doubles the HDA-4100: eight audio sources distributed to eight stereo zones or up to sixteen mono zones, at 100 watts per channel into 8 ohms or 200 watts into 4 ohms. Alongside eight RCA inputs it adds two coaxial digital inputs, which is what you want when a cable box or streamer is the source and you would rather not convert twice. Audio streams at 96 kHz / 24-bit with Dolby and DTS 5.1 downmixing.

Every zone has its own high pass and low pass filters and a full 5-band parametric EQ, so a whole-house or whole-venue system can be voiced room by room from one chassis. Two assignable pre-amp outputs feed a subwoofer or an external amplifier and two 12V triggers handle screens or shades. Units connect over gigabit Ethernet and multiple chassis link through the HDA-SW5 AVB network switch, scaling the system to 32 sources by 32 zones. The chassis is 17.125 inches wide by 3.875 inches high and weighs 12.8 lbs.

Configuration	8 sources to 8 stereo zones or up to 16 mono zones
Power Output	100W per channel at 8 ohms; 200W per channel at 4 ohms
Audio Quality	96 kHz / 24-bit high resolution streaming; Dolby and DTS 5.1 downmixing

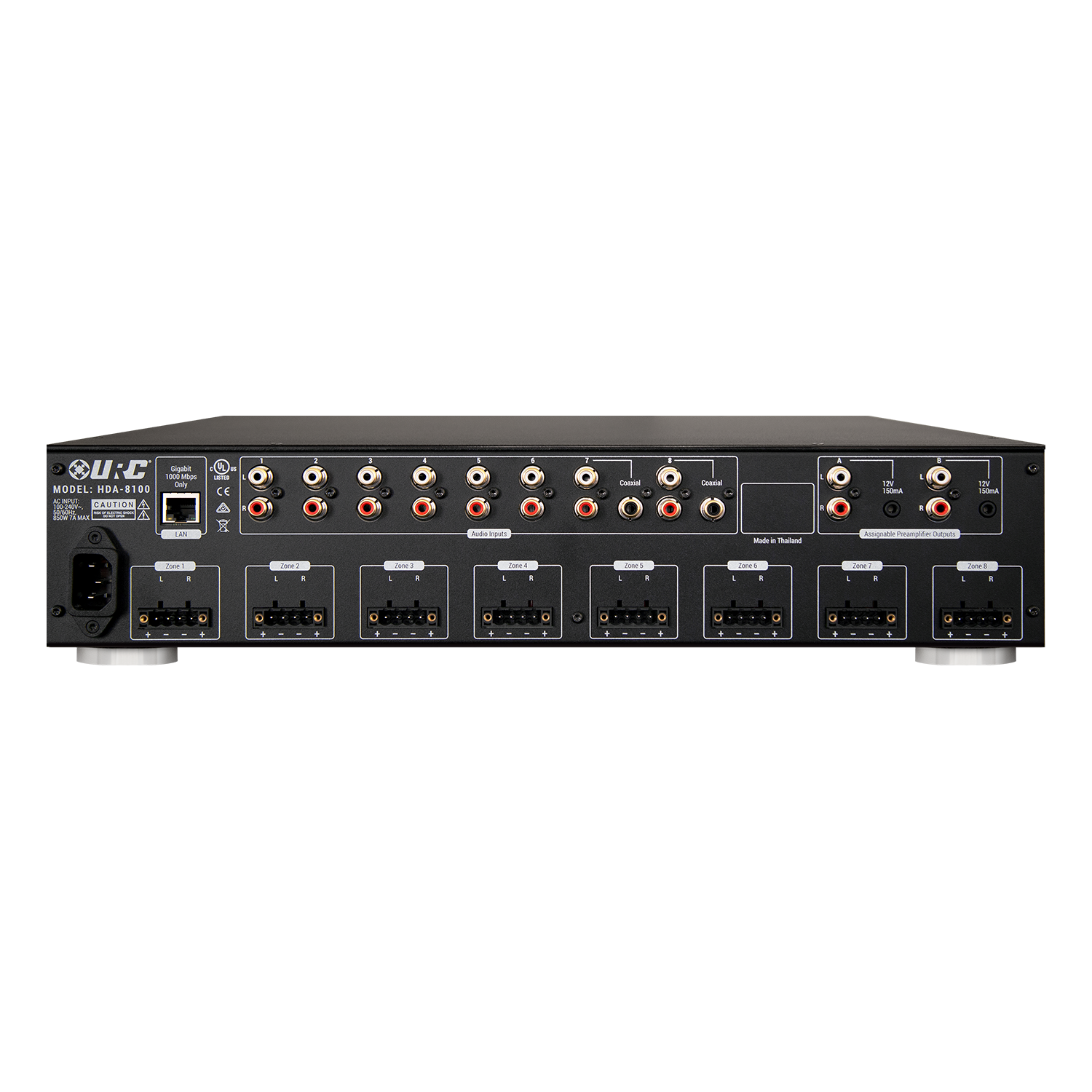

Inputs	(8) RCA analog, (2) coaxial digital
Outputs	8 stereo / 16 mono amplifier channels, (2) assignable pre-amp outputs, (2) 12V triggers
Per-Zone DSP	High pass and low pass filters plus 5-band parametric EQ per zone
Network	Gigabit Ethernet, 1 Gbps full duplex; HDA-SW5 AVB switch for multiple units
Expansion	Up to 32 sources x 32 zones
Dimensions / Weight	17.125 in W x 3.875 in H x 11.94 in D; 12.8 lbs
