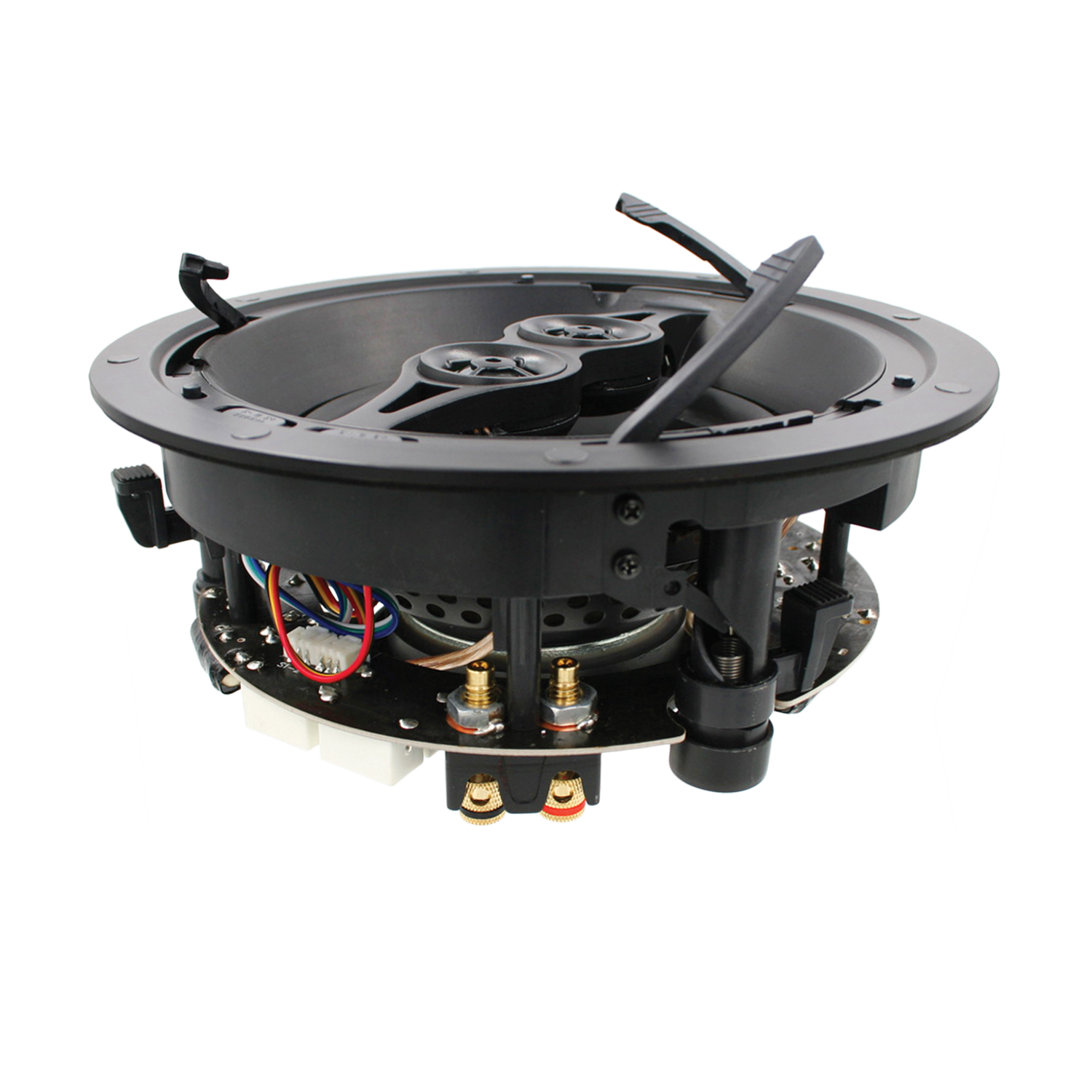

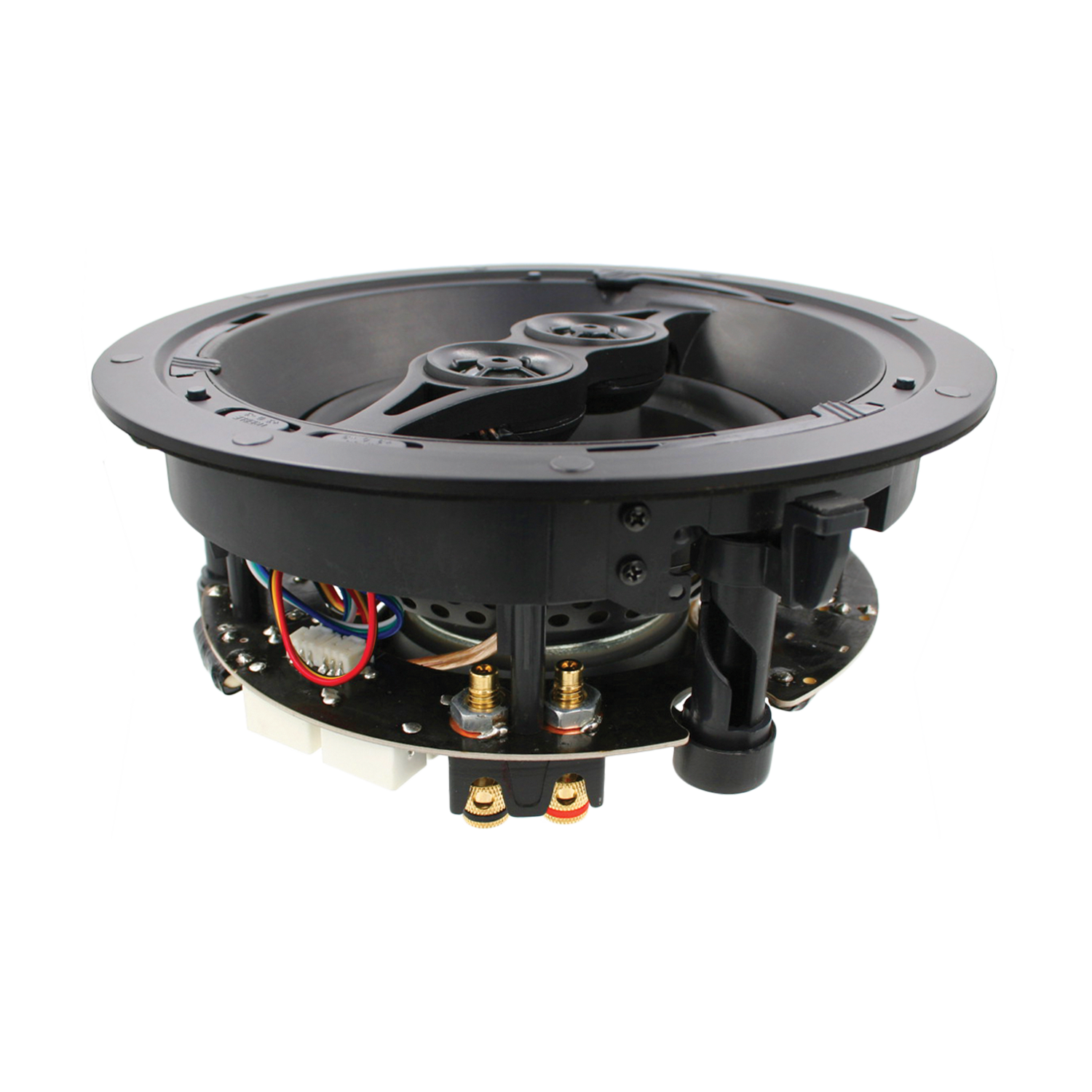

URC SP-DV6 6.5-inch Dual Voice Coil In-Ceiling Speaker
The SP-DV6 is a single-speaker stereo solution: a dual voice coil 6.5 inch polypropylene woofer with two 3/4 inch silk dome swivel tweeters, so left and right both come out of one ceiling cutout. Bathrooms, hallways, walk-in closets, and small offices are the usual homes for it, anywhere a proper stereo pair would either not fit or would sit too close together to do anything useful.
It shares the architectural line's clamping system, so wire goes onto a removable terminal and the levers push down to lock the frame against the drywall without tools, and it uses the same frameless magnetic micromesh aluminum grille. Power handling is 5 to 100 watts at 8 ohms nominal, sensitivity is 92 dB, and response runs 42 Hz to 20 kHz. Both drivers have a three-position EQ adjustment at minus 3, 0, and plus 3 dB. The frame is 9.45 inches in diameter and 3.98 inches deep and takes an 8.15 inch cutout. This is sold as a single speaker with a cutout template.
| Speaker Type | In-ceiling, two-way dual voice coil, single speaker |
|---|---|
| Tweeters | Dual 3/4 in silk dome, swivel |
| Woofer | 6.5 in polypropylene, dual voice coil |
| Power Handling | 5 - 100 Watts |
| Nominal Impedance | 8 Ohms |
| Frequency Response | 42 Hz - 20 kHz |
| Sensitivity | 92 dB |
| Cutout / Depth | 8.15 in cutout; 9.45 in diameter, 3.98 in depth |
