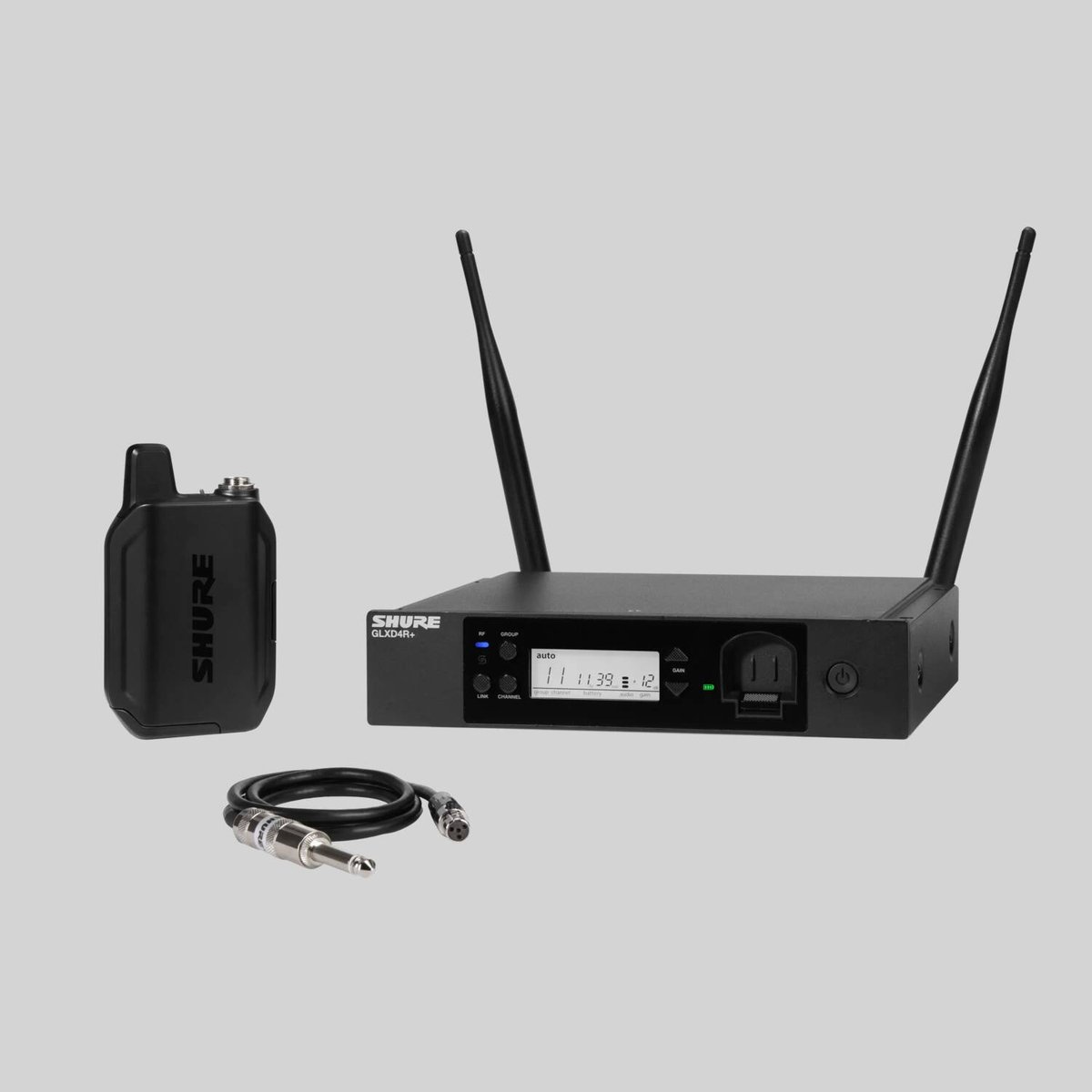

Shure GLXD14R+
The GLXD14R+ is Shure's rackmount digital wireless bodypack system, set up out of the box for guitar and bass but ready for a lavalier, headset, or handheld input as well. It ships with a WA302 quarter-inch instrument cable that plugs the GLXD1+ bodypack straight into a guitar, giving a player cable-free movement without swapping their tone. GLX-D+ Dual Band technology runs the license-free 2.4 and 5.8 GHz ranges together, so it has extra bandwidth to route around interference and stay locked.
The GLXD4R+ single-channel half-rack receiver anchors the rig with antenna distribution and automatic frequency management for up to 16 half-rack systems, while the SB904 rechargeable battery in the bodypack runs up to 12 hours per charge. Line-of-sight range reaches up to 100 ft. In the box: the GLXD4R+ receiver, GLXD1+ bodypack, WA302 instrument cable, SB904 battery, power supply, two antennas, two RSMA cables, a hardware kit, and two bulkhead adapters.
| System Type | Digital wireless rackmount bodypack system |
|---|---|
| Frequency Bands | 2.4 and 5.8 GHz (license-free) |
| Receiver | GLXD4R+ single-channel half-rack |
| Transmitter | GLXD1+ bodypack |
| Instrument Cable | WA302 (1/4 inch) |
| Battery | SB904 rechargeable Li-ion, up to 12 hours |
| Operating Range | Up to 100 ft (30 m) |
| Compatible Systems | Up to 16 half-rack (ideal conditions) |
| Included | GLXD4R+ receiver, GLXD1+ bodypack, WA302 cable, SB904 battery, power supply, 2 antennas, 2 RSMA cables, rack hardware, 2 bulkhead adapters |
