Shure PA805DB RSMA

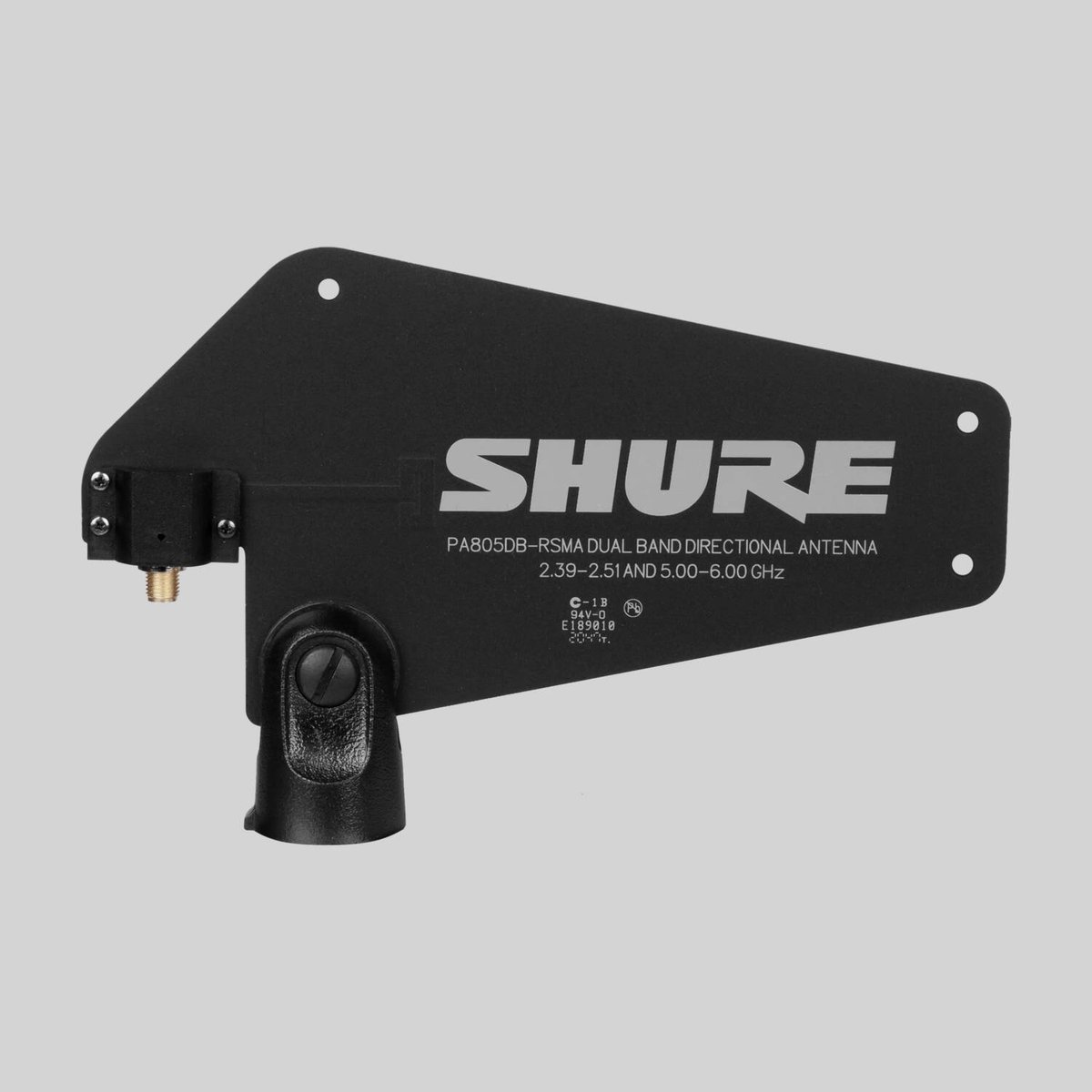

The Shure PA805DB-RSMA is a passive dual-band directional antenna that sharpens the RF reception of GLX-D+ digital wireless systems. It covers both the 2.4 GHz and 5.8 GHz bands that GLX-D+ hops across, adding up to 8 dB of directional gain toward the transmitters so half-rack GLXD4R+ receivers and the GLXD+FMDB frequency manager hold a cleaner, longer-range link. Because it is passive, it needs no power or in-line amplifier.

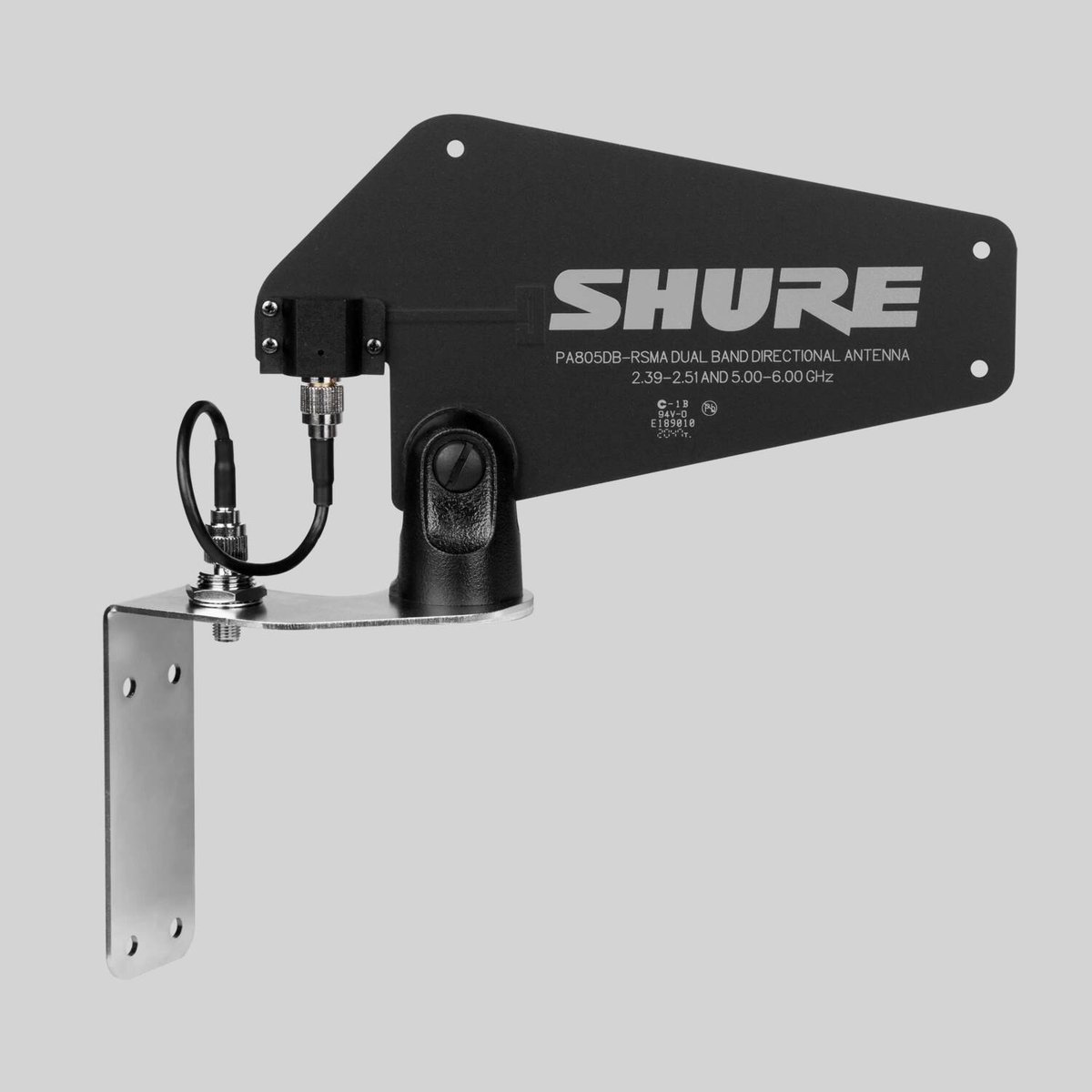

Its directional pattern delivers a 24 dB front-to-back ratio, rejecting interference arriving from behind the antenna such as Wi-Fi routers and other 2.4 and 5.8 GHz sources. A swivel bracket mounts it to a mic stand or wall and aims it at the stage, and the housing can be finished with non-metallic paint to blend into a fixed install. It terminates in a 50-ohm reverse-polarity SMA connector and ships with a 10-foot RSMA cable so the antenna can be placed for clear line of sight to the transmitters.
