Blackmagic ATEM Camera Control Panel

The ATEM Camera Control Panel gives a shading operator the same hardware feel used on high-end broadcast CCUs, driving up to four cameras from one desk. Each camera gets four 3-axis joysticks and dedicated controls for iris, white balance and black balance, plus five recallable scenes so a look can be stored and brought back instantly. A camera number display reads green when a camera is off air and red when it is live, so the operator always knows what the audience is seeing.

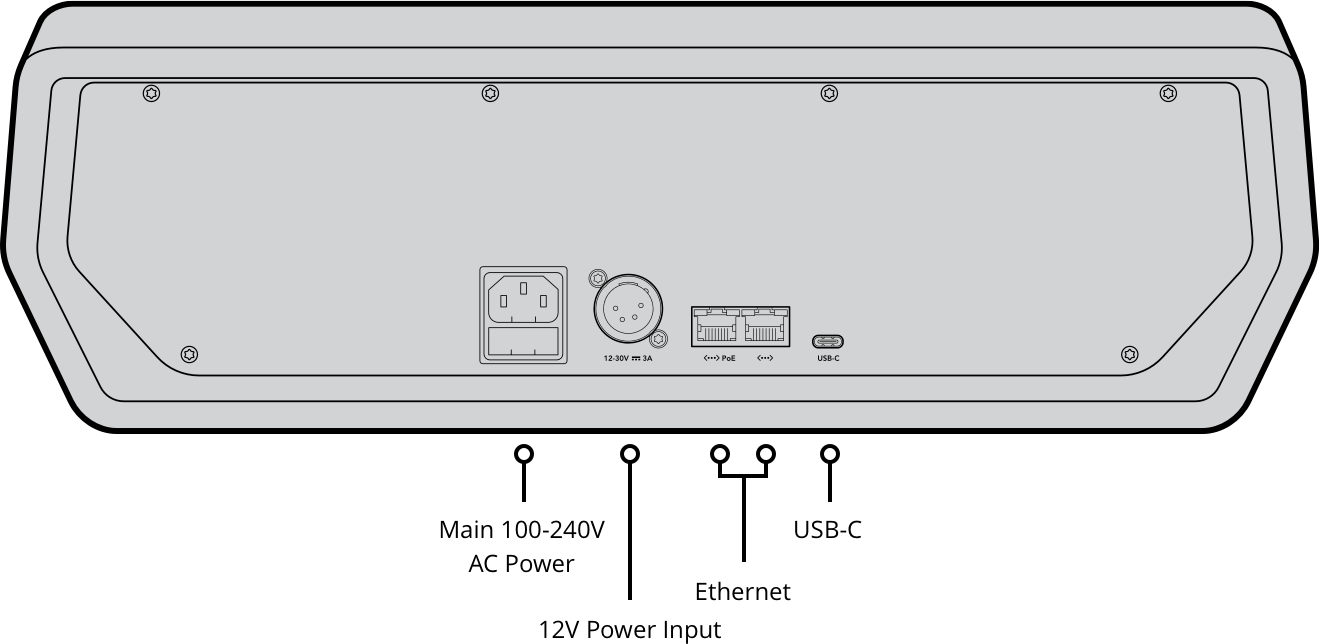

Setup is deliberately simple: the panel carries two 10/100/1000 BASE-T Ethernet connections with loop output, so you connect straight to the ATEM switcher and daisy-chain additional panels or computers without a hub. A USB-C port handles firmware updates. It runs on internal 100-240V AC and accepts 12-30V DC at 3A for external power or UPS redundancy, and ships as Blackmagic part number BMD-SWPANELCCU4.
