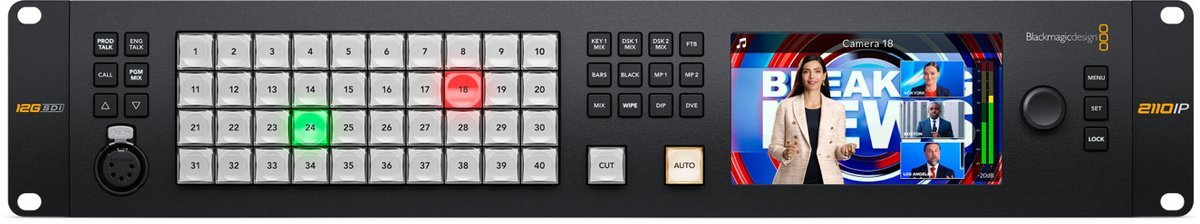

Blackmagic ATEM Monitoring Rack Panel 40

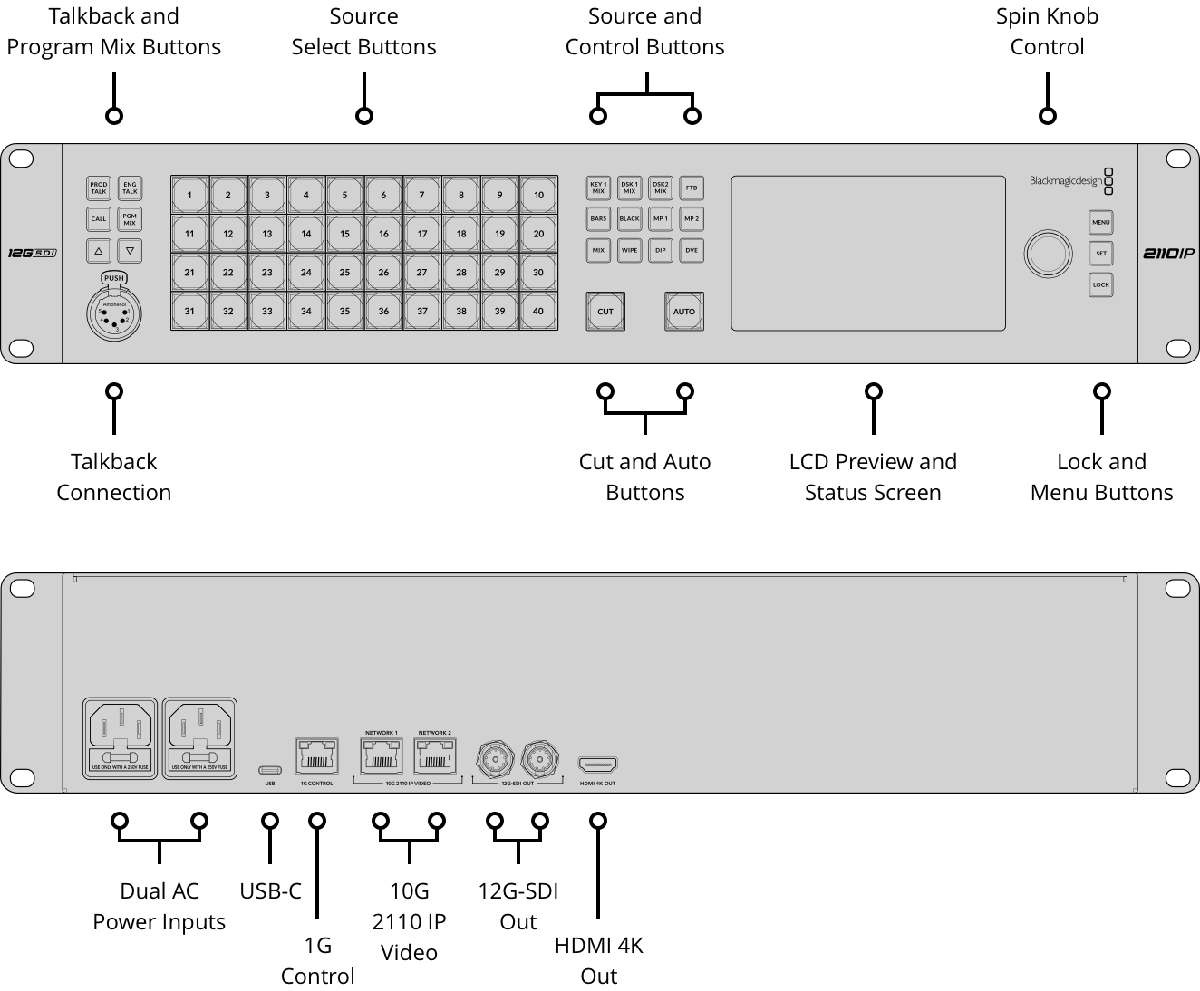

The Blackmagic ATEM Monitoring Rack Panel 40 combines a hardware switcher control panel and a video converter in one 2RU rack-mount unit. Its 40 buttons drive a local ATEM switcher, while a front-panel talkback connection keeps the operator on the intercom. Two redundant SMPTE-2110 10G Ethernet connections feed the built-in converter, so it plugs straight into an IP production network.

The converter turns the incoming IP video into two 12G-SDI outputs and an HDMI output for feeding local monitors and recorders, and it also shows the signal on a large 5-inch built-in LCD for at-a-glance rack monitoring. It ships as part number BMD-SWPANELABRMP40.
