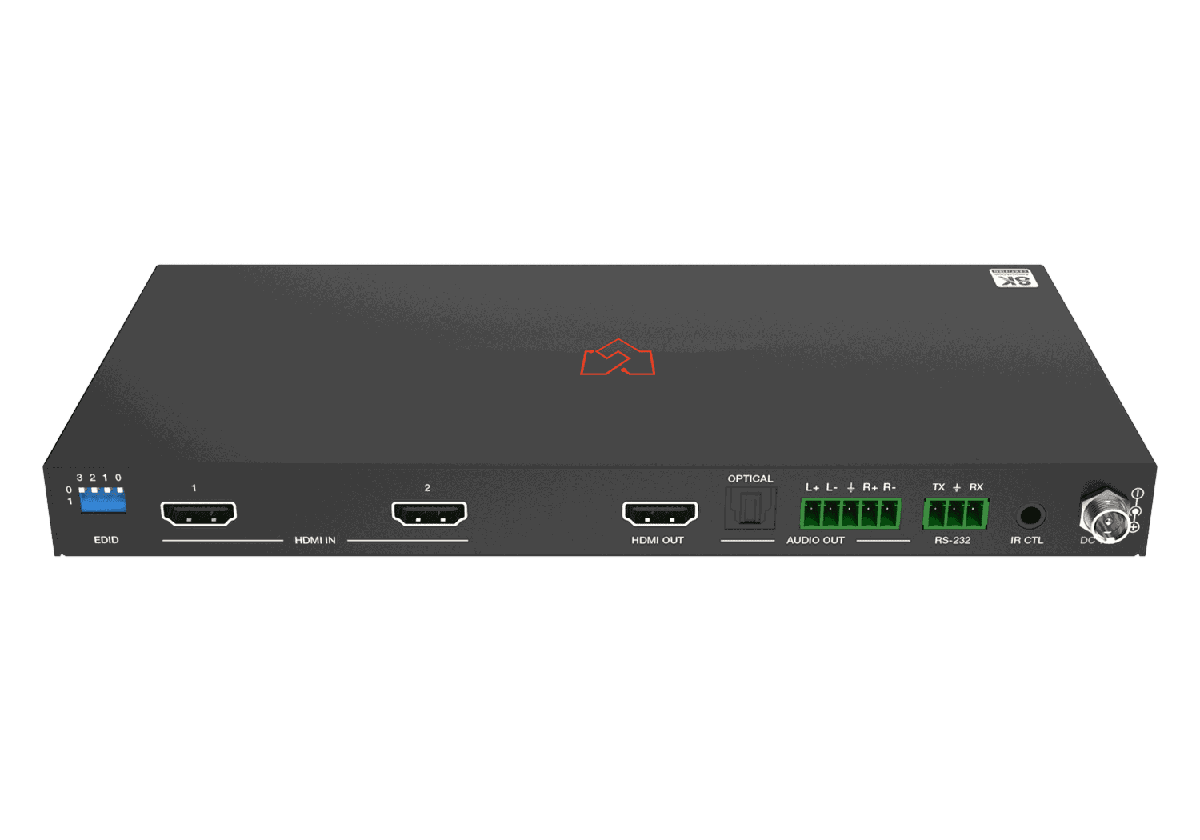

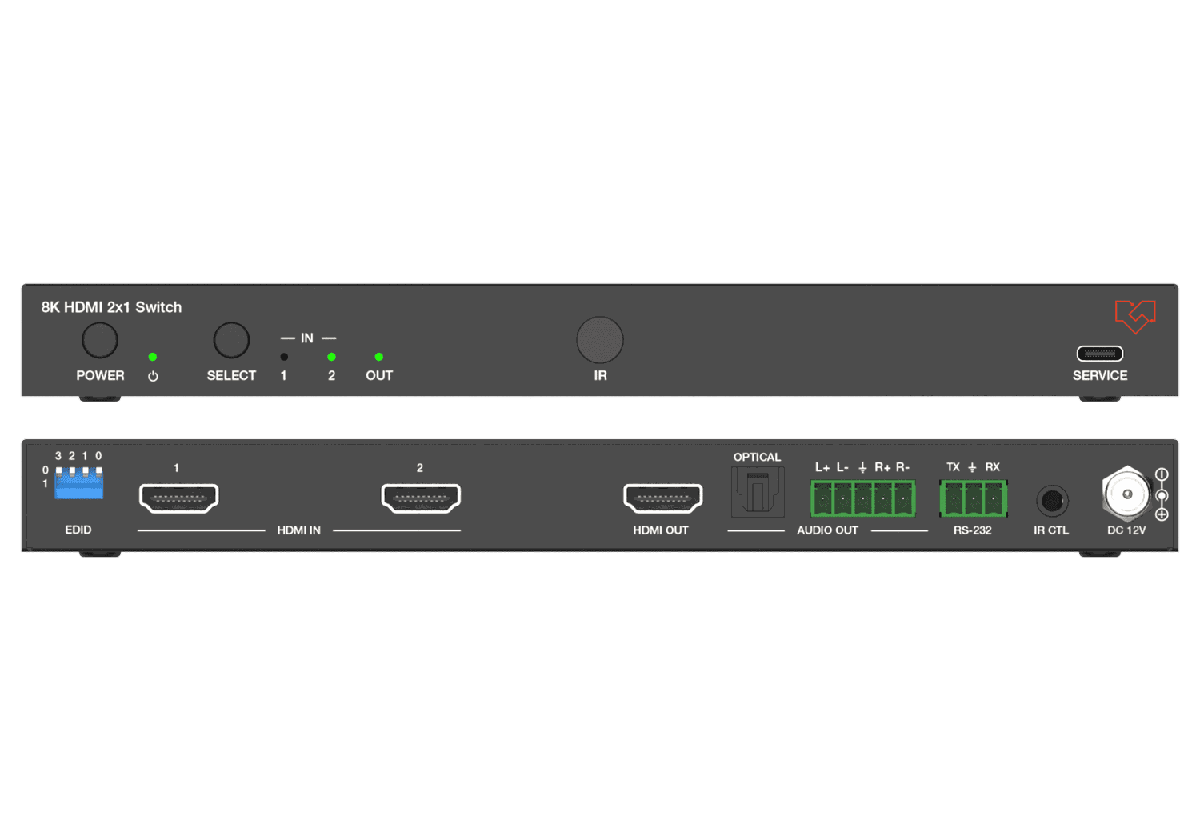

VigilLink VLSW-2x18KA 2x1 HDMI 2.1 Switcher with Audio De-Embedding and Signal Generator

The VLSW-2x18KA is a two-input HDMI 2.1 switcher running the full 48Gbps, supporting 8K@60Hz, 4K@120Hz, VRR, ALLM, and Dolby Vision pass-through. Digital and analog audio de-embedding run at the same time, with optical S/PDIF to Dolby and DTS 5.1 and analog L/R stereo with adjustable gain.

EDID is set on physical DIP switches rather than buried in a menu, and a built-in signal generator lets an installer prove the display and cable before the source ever arrives. Control comes from front panel buttons, an IR remote, or an RS-232 API for integration with a control system.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz YCbCr 4:2:0 12-bit; 8K@30Hz RGB/YCbCr 4:4:4 12-bit; 4K@120Hz RGB/YCbCr 4:4:4 12-bit
Video Latency	No Latency
Inputs	2x HDMI IN [Type A, 19-pin female]
Outputs	1x HDMI OUT [Type A, 19-pin female]; 1x OPTICAL AUDIO OUT [S/PDIF, female]; 1x L/R AUDIO OUT [5-pin 3.5mm Phoenix connector, male]
Audio Latency	No Latency
