VigilLink VLSW-4x18KA 4x1 HDMI 2.1 Switcher with Audio De-Embedding and Signal Generator

The VLSW-4x18KA is a four-input HDMI 2.1 switcher at the full 48Gbps, supporting 8K@60Hz, 4K@120Hz, VRR, ALLM, and Dolby Vision pass-through. Digital and analog audio de-embedding run simultaneously, with optical S/PDIF up to Dolby and DTS 5.1 and analog L/R on a 5-pin Phoenix connector with adjustable gain.

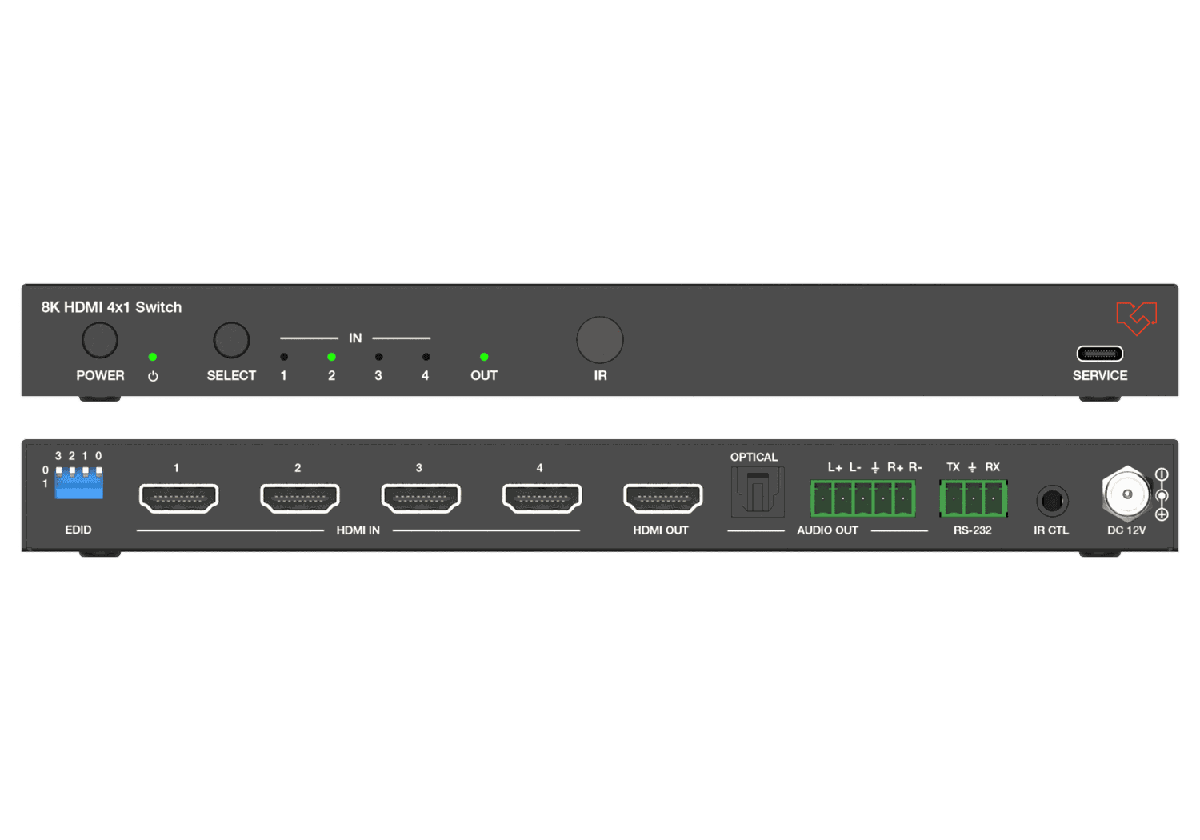

EDID management is on physical DIP switches, and a built-in signal generator gives an installer a known-good source for diagnosing a display or a cable run. Control is available from front panel buttons, an IR remote, or an RS-232 API.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K60 YCbCr 4:2:0 12bit, 8K30 RGB/YCbCr 4:4:4 12bit or 4K120 RGB/YCbCr 4:4:4 12bit
Video Latency	No Latency

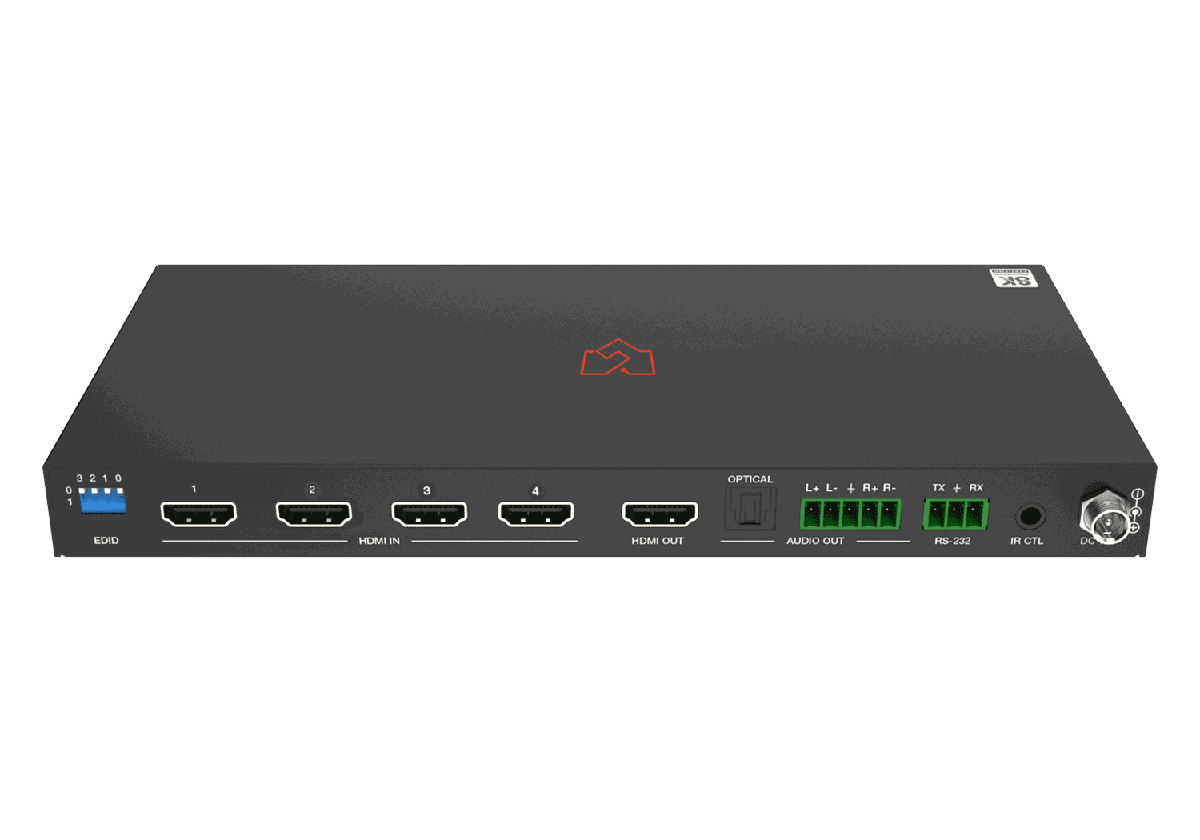

Input	4x HDMI IN [Type A, 19-pin female]
Output	1x HDMI OUT [Type A, 19-pin female] 1x OPTICAL AUDIO OUT [S/PDIF, female] 1x L/R AUDIO OUT [5-pin 3.5mm Phoenix connector]
Audio Latency	No Latency
