VigilLink VLSW-41H21 4x1 HDMI 2.1 Switcher, 8K 48Gbps

The VLSW-41H21 connects up to four HDMI sources to a single display at resolutions to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, or 4K@120Hz 4:4:4, across 48Gbps of bandwidth. It suits outdoor displays, conferencing, security monitoring, and home theatre.

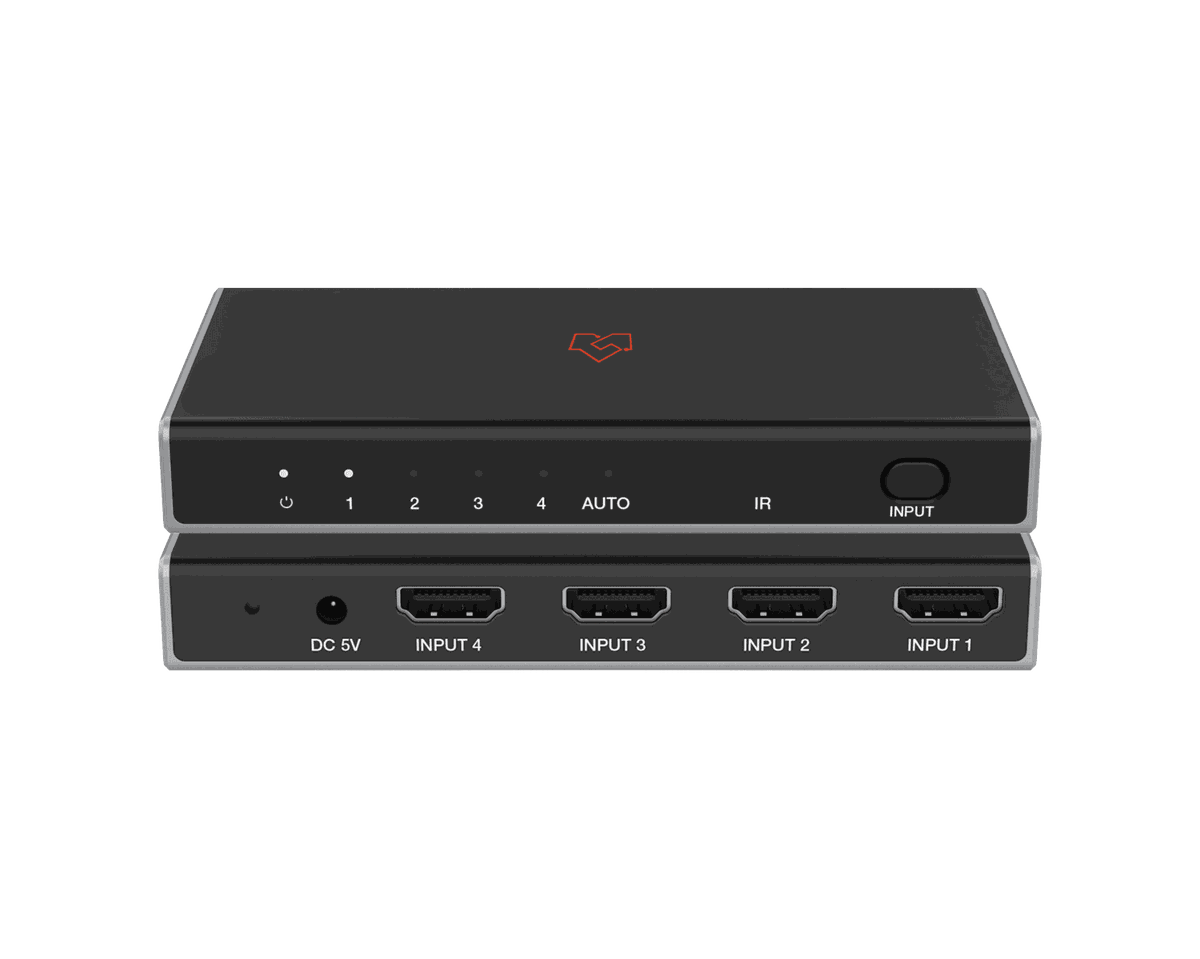

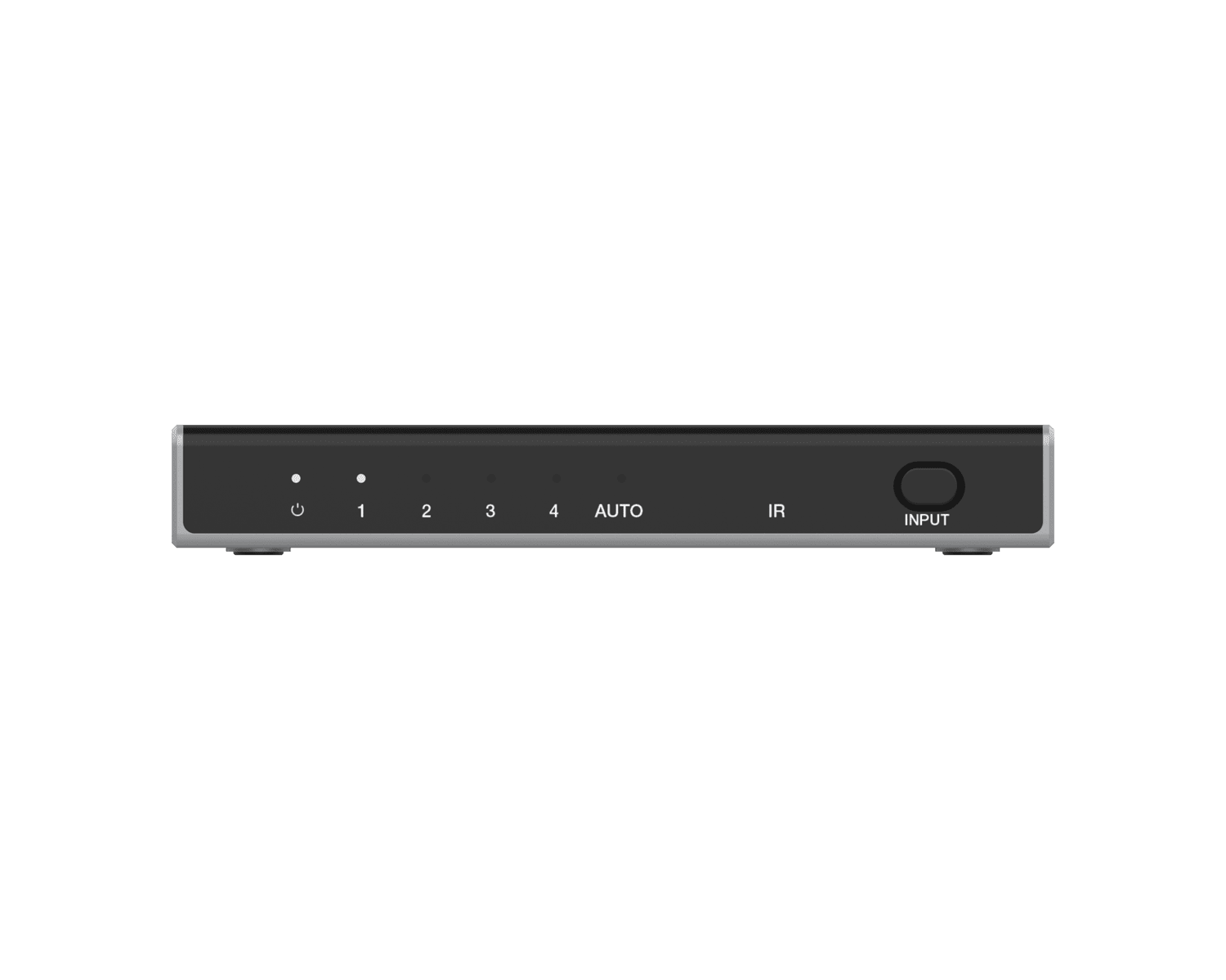

Switching is a front panel button, which keeps operation obvious for a shared room. The switcher is HDMI 2.1 and HDCP 2.3 compliant with HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
Output	1 x HDMI OUTPUT [Type A, 19-pin female]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth	8/10/12-bit
