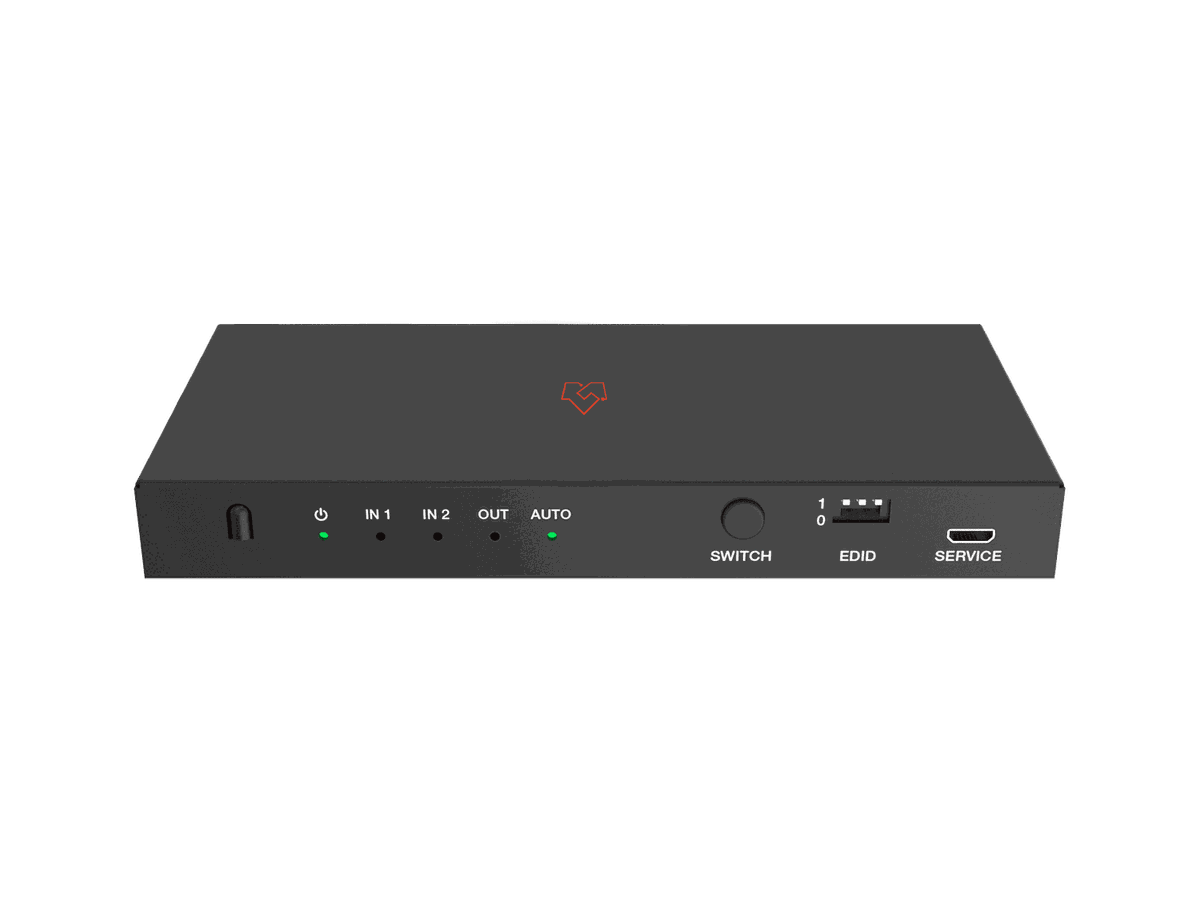

VigilLink VLSW-21H21A 2x1 HDMI 2.1 Switcher with Audio De-Embedder

The VLSW-21H21A switches between two HDMI sources to a single display at resolutions up to 8K@60Hz 4:2:0 and 48Gbps of bandwidth. It is HDMI 2.1 and HDCP 2.3 compliant with VRR, FVA, and ALLM support.

Audio de-embedding provides optical and analog outputs so a separate sound system can take the program audio directly. EDID management improves compatibility across mixed sources and displays, which is what usually breaks a two-source setup.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit

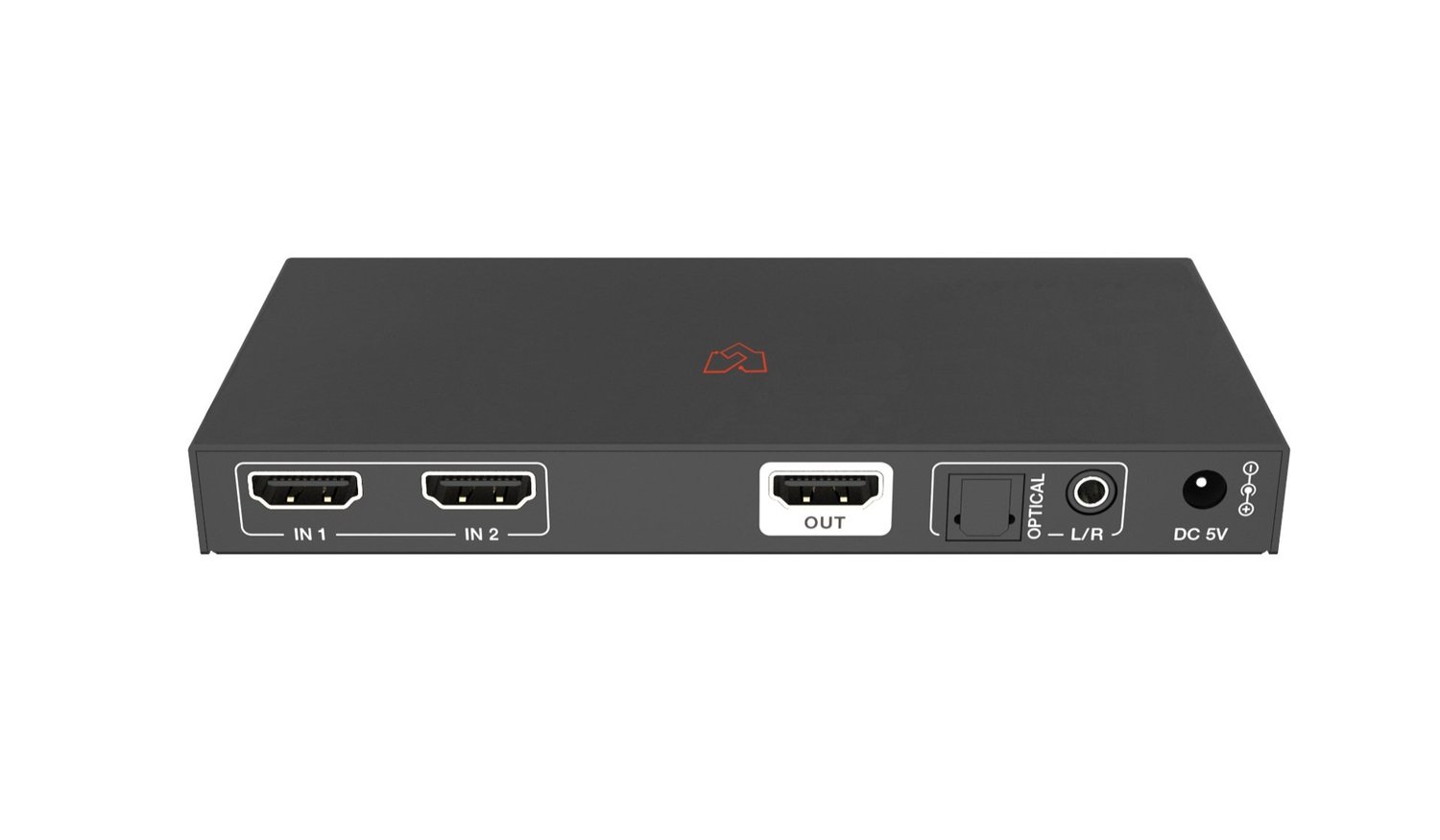

Output	1 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Color Space	RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12-bit
Housing	Metal enclosure
