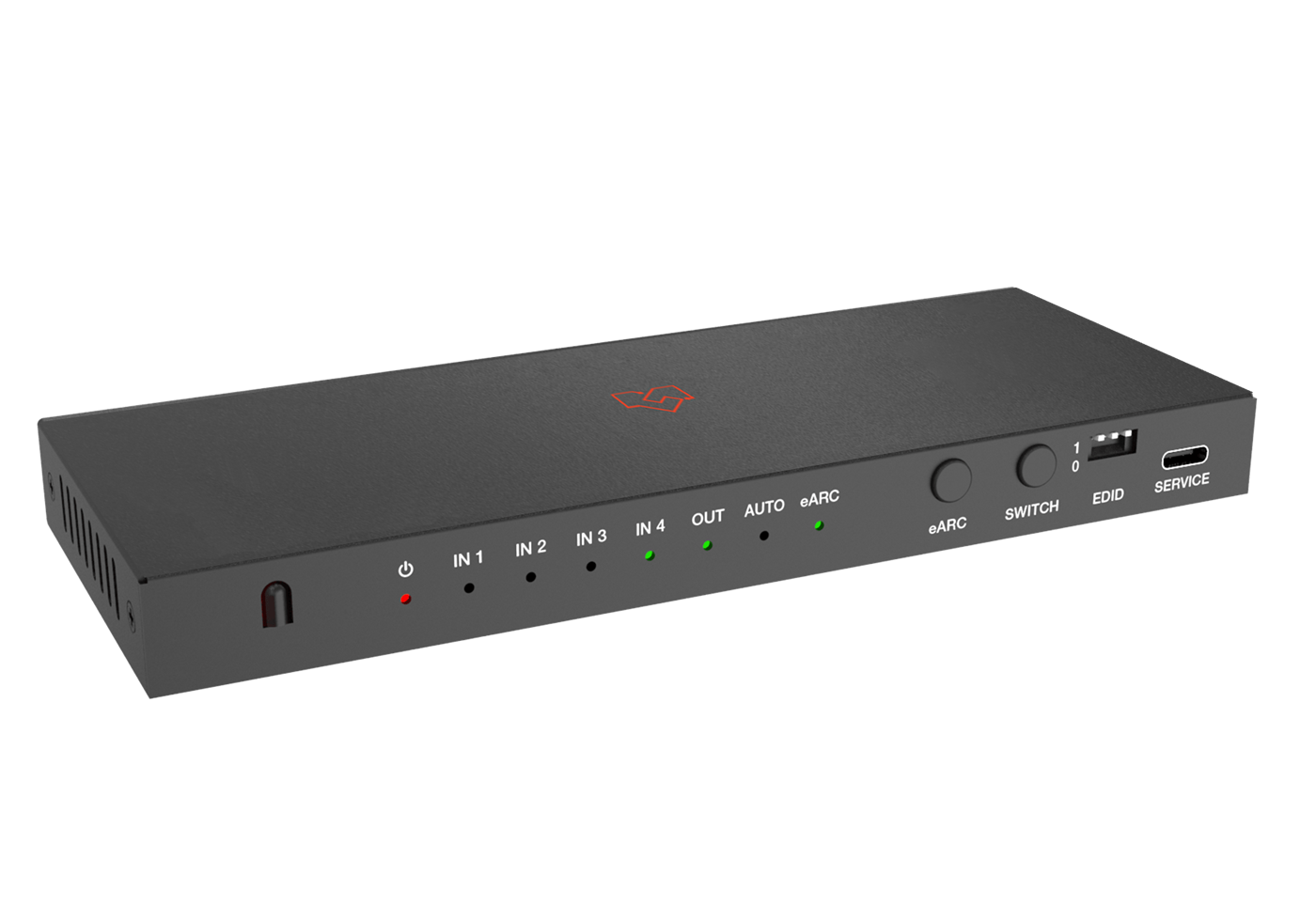

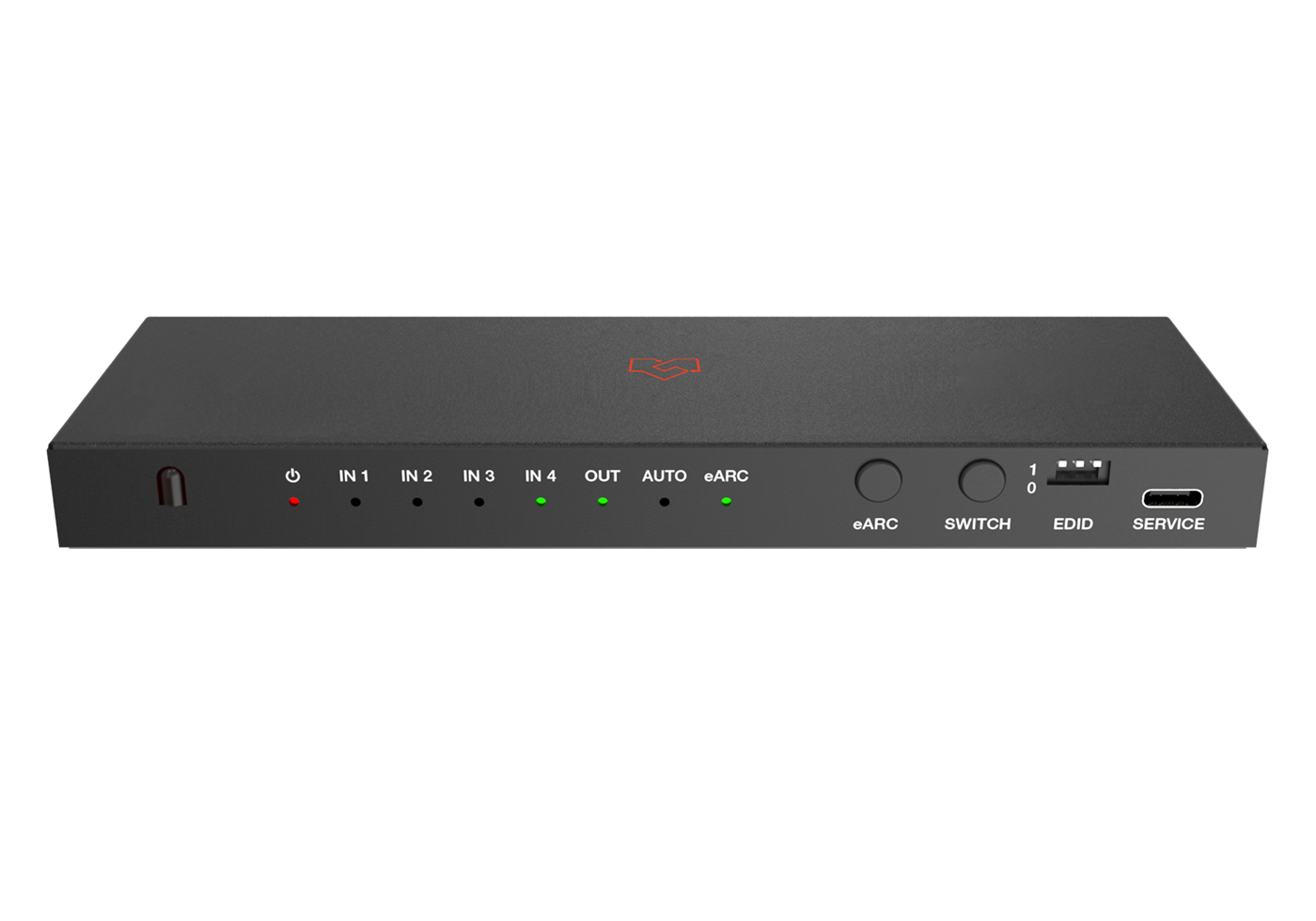

VigilLink VLSW-41H21A 4x1 HDMI 2.1 Switcher with Audio De-Embedding

The VLSW-41H21A switches four HDMI sources to a single display at up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4, and 4K@120Hz, with 48Gbps FRL and 18Gbps TMDS bandwidth under HDCP 2.3.

It adds EDID management, CEC control, and ARC and eARC support, plus audio de-embedding to optical and analog outputs. HDMI 2.1 protocols VRR, ALLM, QMS, QFT, and SBTM are supported.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit

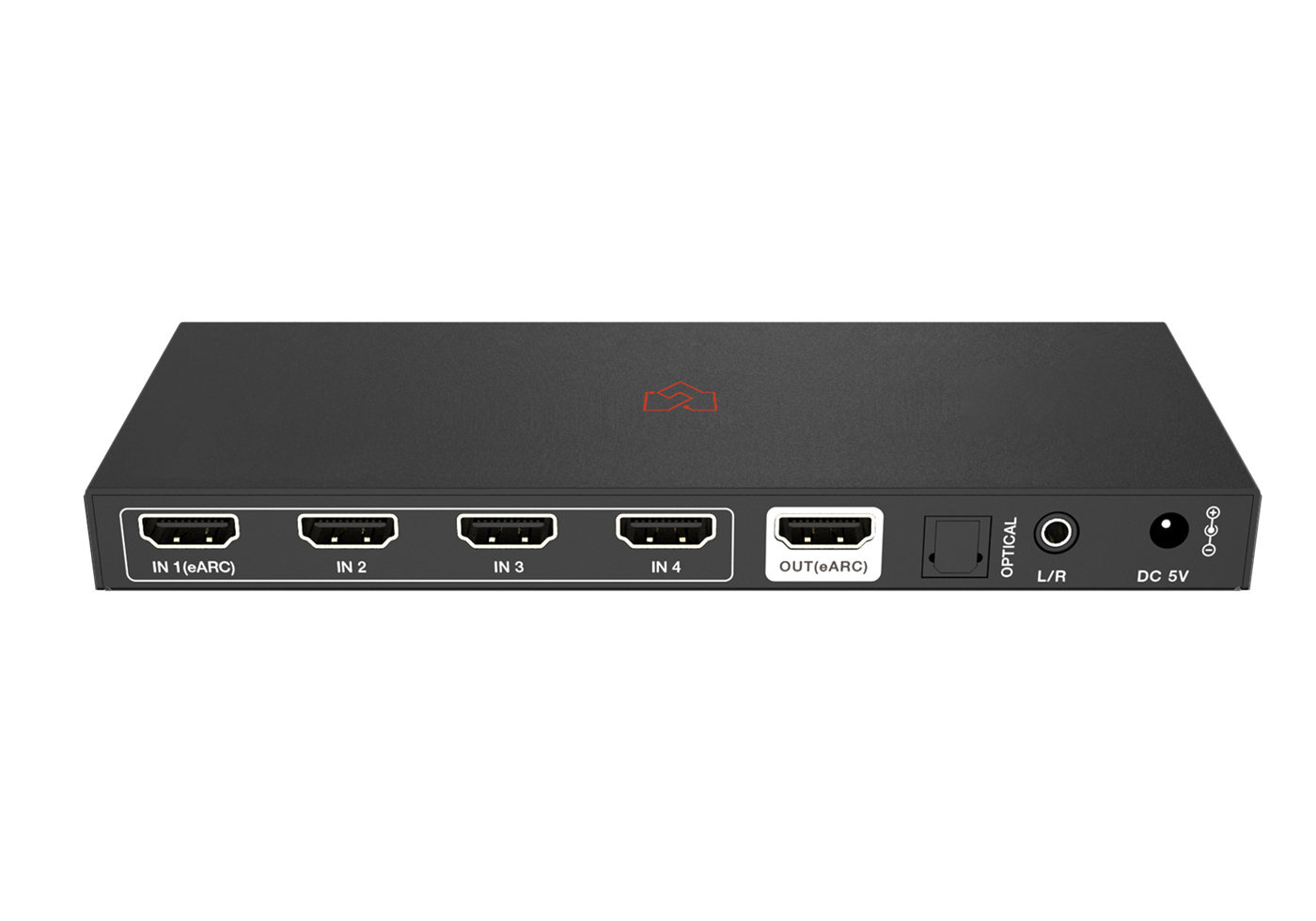

Output	1 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Color Space	RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12-bit
Housing	Metal enclosure
