VigilLink VLSW-41H20ER 4x1 HDMI 2.0 Switcher with eARC

The VLSW-41H20ER routes any of four HDMI sources to a single display at up to 4K2K@60Hz in RGB or YCbCr 4:4:4, across 18Gbps of bandwidth. It is HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant.

ARC and eARC run through the dedicated Input 1 (eARC) port, returning audio from the display to a connected sound system without a second cable path. 3D, HDR, HDR10, HDR10+, and Dolby Vision all pass through.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.x
Video Bandwidth	18Gbps
Video Resolution	4Kx2K@24/30Hz, 4K2K@60Hz

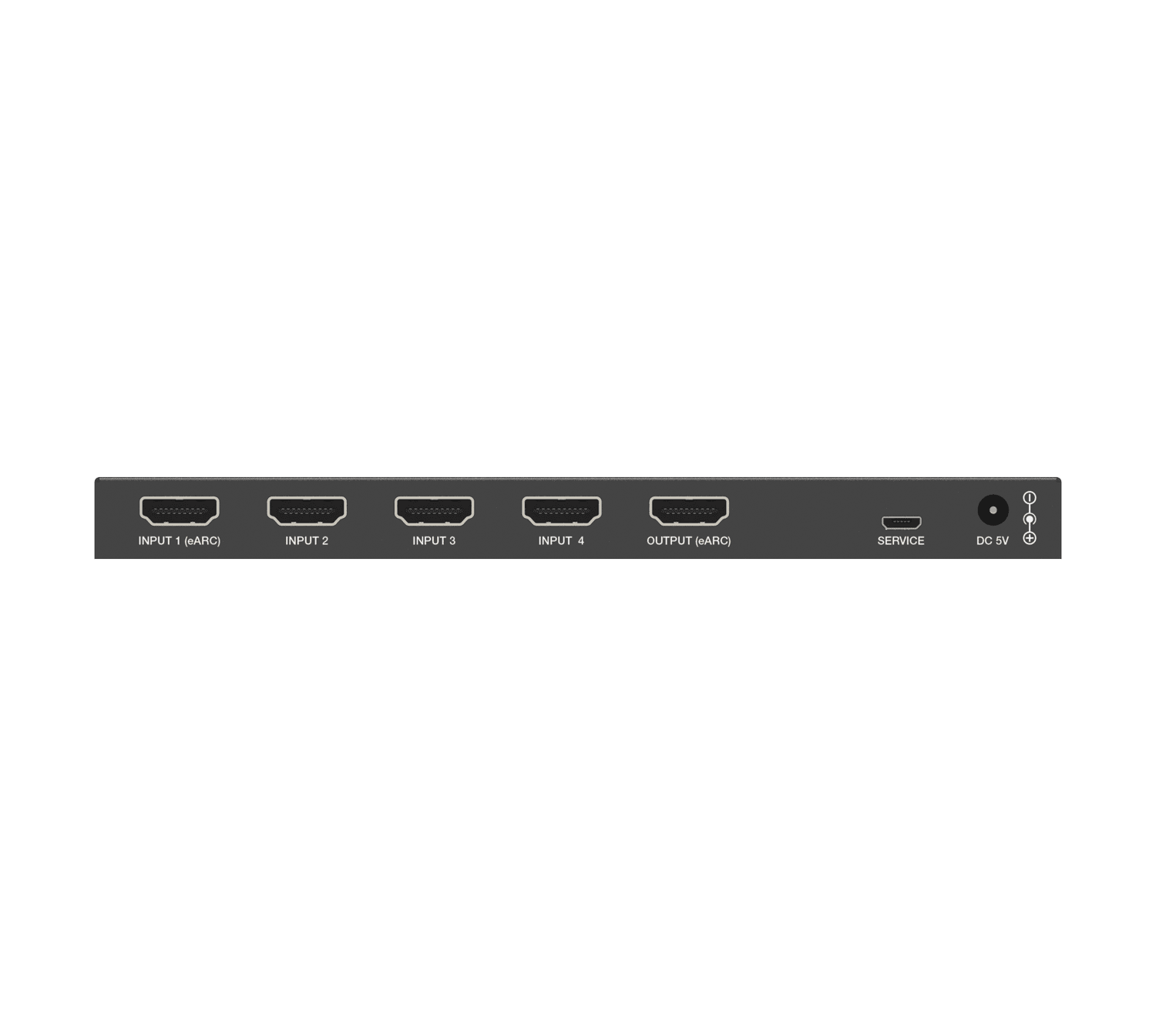

Input	4xHDMI IN [Type A 19-pin female]
Output	1xHDMI OUT [Type A 19-pin female]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Space	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
