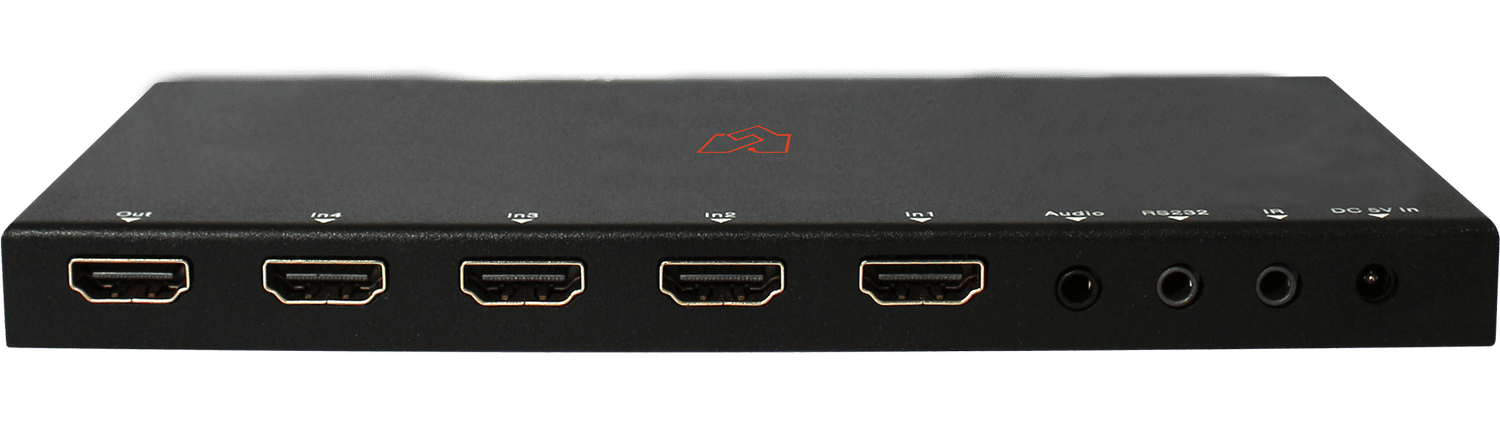

VigilLink VLSW-41H20R 4x1 HDMI 2.0 Switcher with ARC and Audio Extraction

The VLSW-41H20R routes four HDMI sources to a single display at up to 4K@60Hz, supporting all HDMI 3D formats. It keeps the source count down at the display end without giving up resolution.

Built-in audio extraction sends the HDMI stream's audio out separately on both digital and analog connections, so an amplifier or soundbar does not have to sit in the video path. ARC support returns display audio to the switcher.

HDCP Compliance	HDCP 1.4, 2.2 v
Frequency Bandwidth	18Gbps

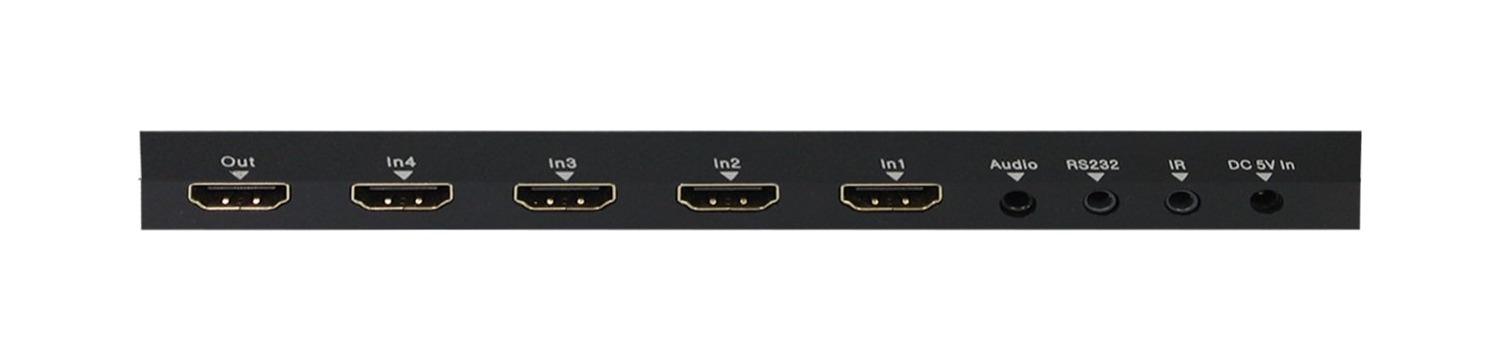

Input ports	4 HDMI Female ports, 1 IR Receive port and 1RS232 port
Output ports	1 HDMI Female port and 1 L/R & Optical port
Housing	Metal Enclosure
Dimensions	(mm) 180 (D) x85 (W) x 11.6 (H)
Weight	300g
Power Consumption	Max 2.5W
