VigilLink VLSW-41H21E 4x1 HDMI 2.1 Switcher with DIP Switch EDID

The VLSW-41H21E is a slim four-input, one-output HDMI switcher supporting resolutions to 8K@60Hz 4:2:0 12-bit at 48Gbps. The low-profile chassis is aimed at lecterns, credenzas, and display backs where depth is the constraint.

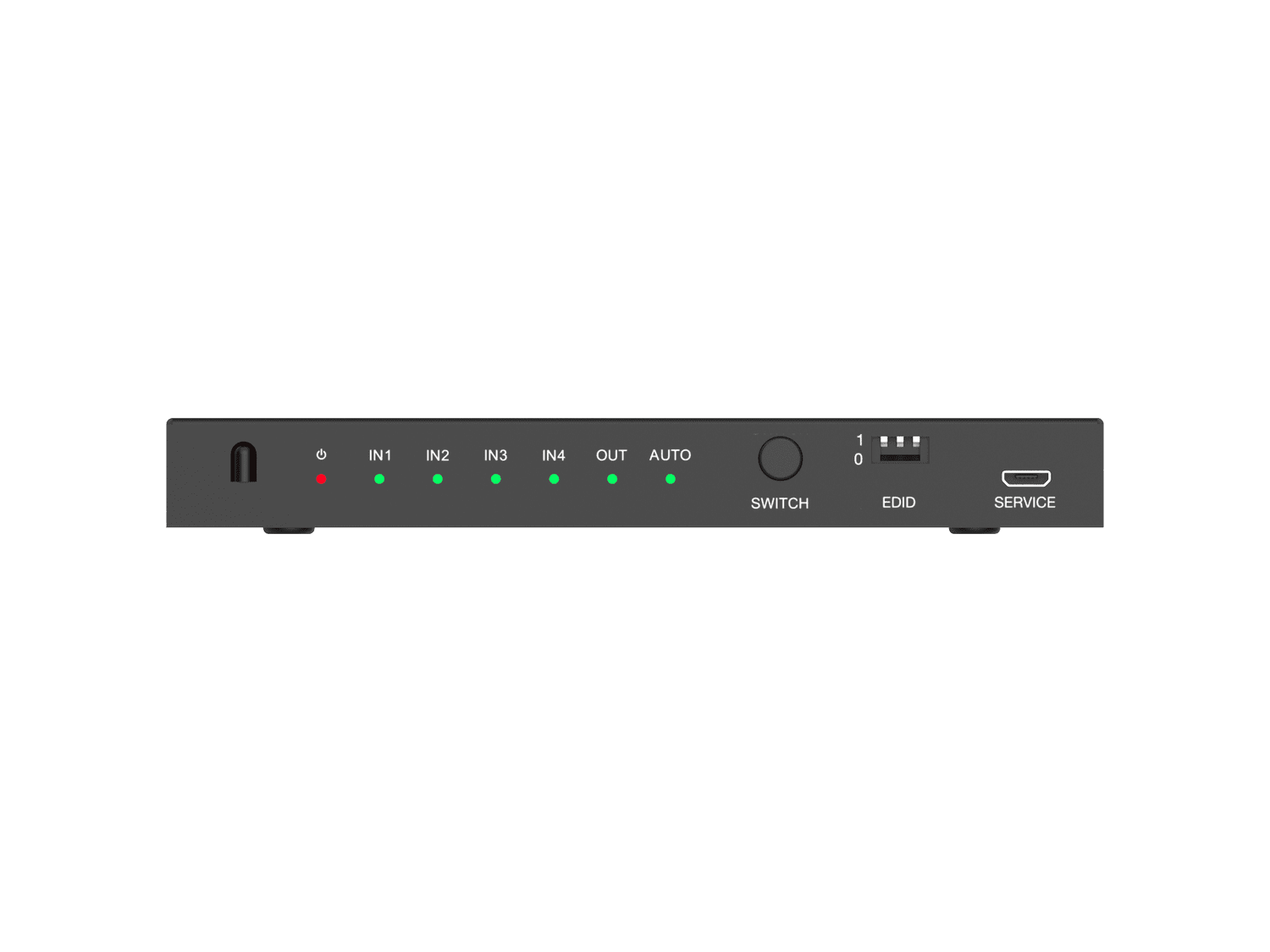

HDR10, HDR10+, and Dolby Vision are supported along with multichannel audio formats. A built-in EDID DIP switch handles source and display negotiation without a menu system or a laptop.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit

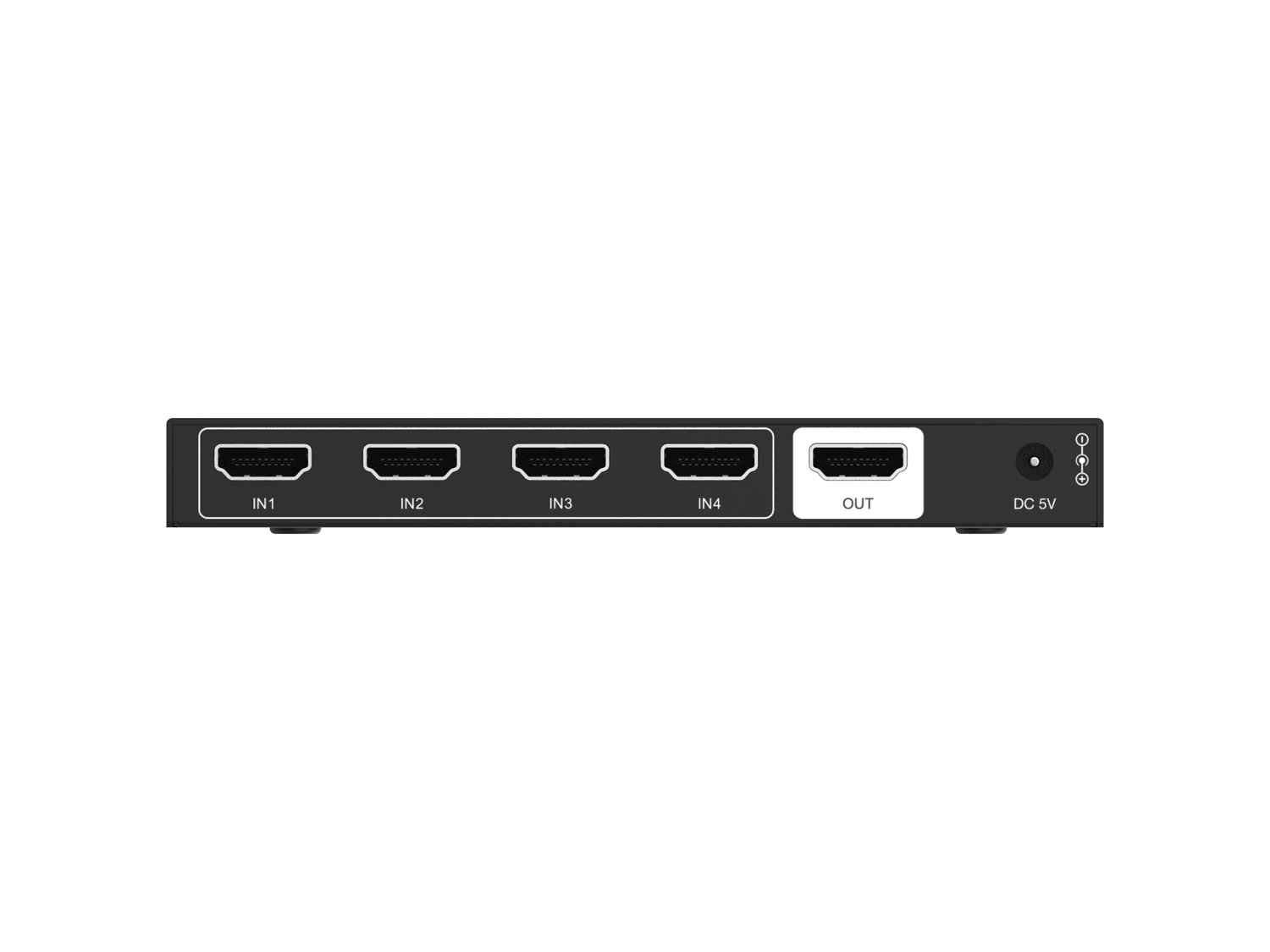

Input	4 x HDMI IN [Type A, 19-pin female]
Output	1 x HDMI OUT [Type A, 19-pin female]
Color Space	RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12bit
