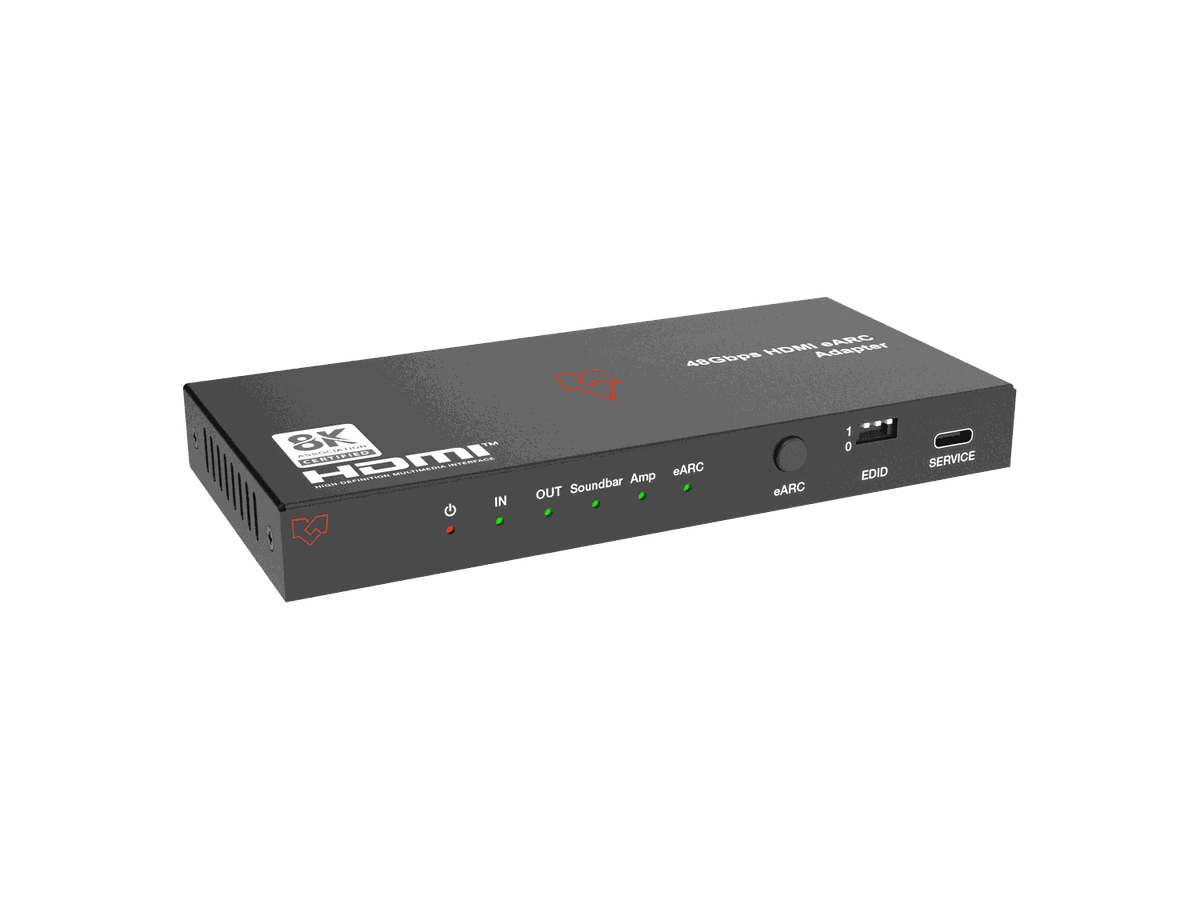

VigilLink VLHA-H21ERAD 8K HDMI 2.1 eARC Audio Adapter with HDMI Output

The VLHA-H21ERAD takes audio out of an HDMI source or an ARC/eARC television and offers three ways to deliver it: HDMI audio, digital S/PDIF, or analog. That covers a soundbar, an amplifier, or any 5.1 or 2.0 channel system without a second adapter.

It supports 48Gbps under HDMI 2.1 and HDCP 2.3, with video up to 8K@60Hz 12-bit and 4K@120Hz 4:4:4 12-bit, plus VRR, ALLM, QMS, QFT, and SBTM. CEC control passes from the television to the source or the amplifier, so one remote still runs the room. EDID management and cable equalization are included.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Input	1 x Source IN [HDMI Type A, 19-pin female]

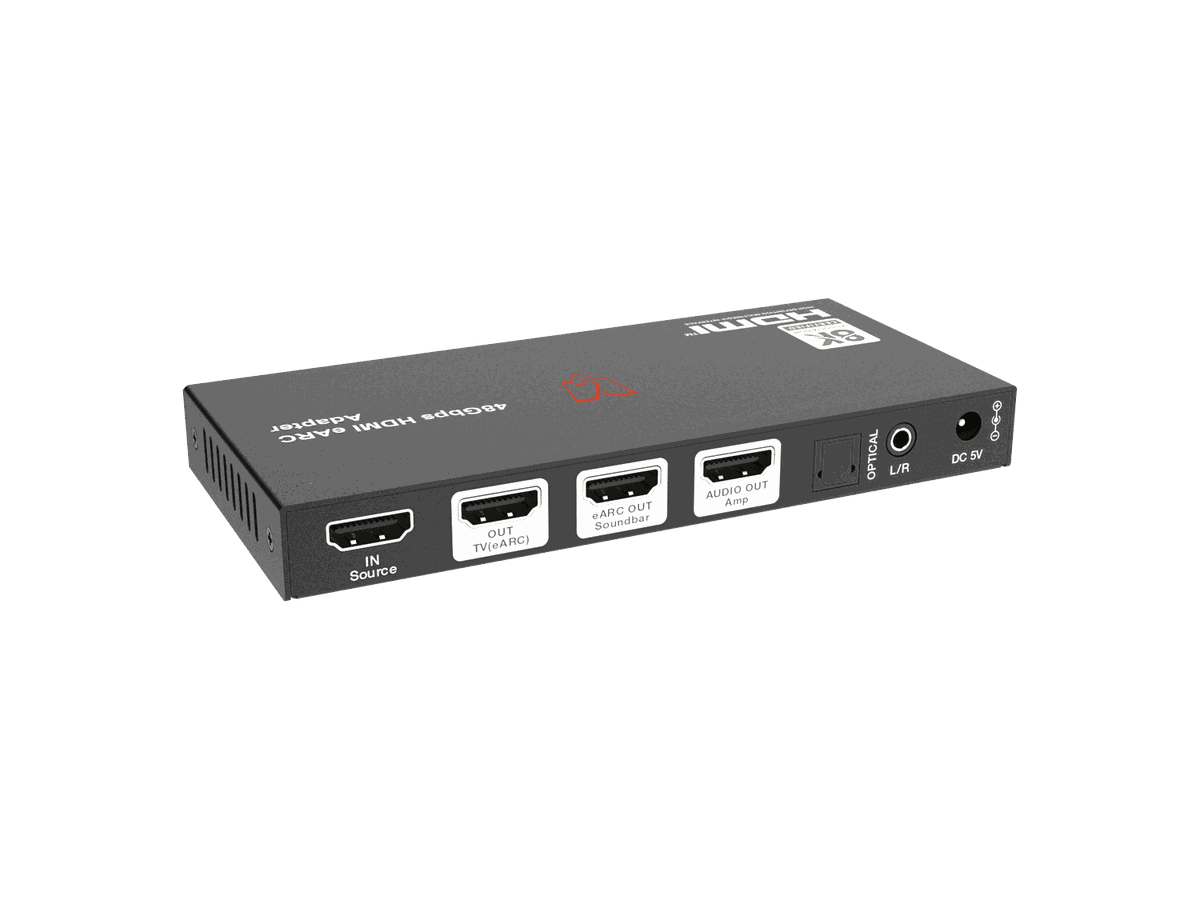

Output	1 x TV(eARC) OUT [HDMI Type A, 19-pin female] 1 x Soundbar eARC OUT [HDMI Type A, 19-pin female] 1 x Amp AUDIO OUT [HDMI Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8-bit,10-bit,12-bit
