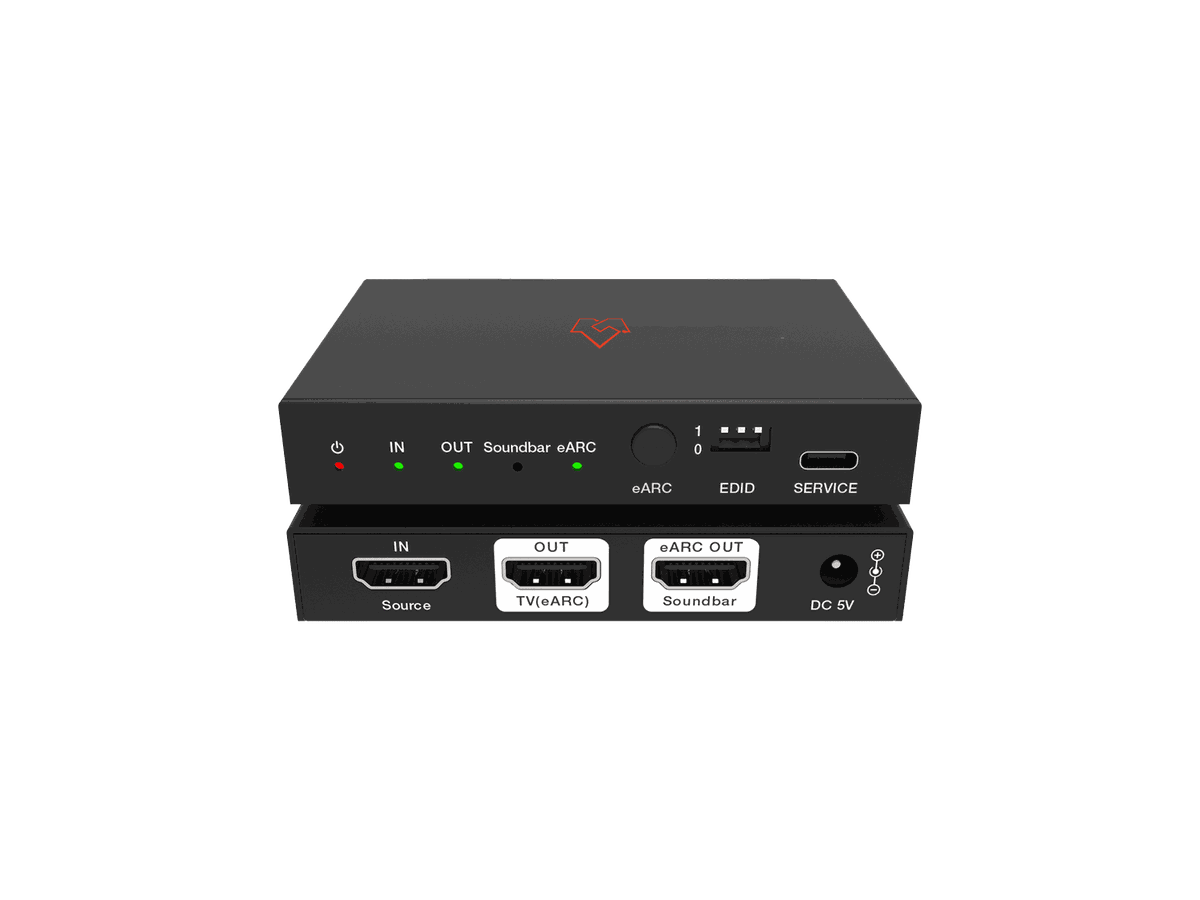

VigilLink VLHA-H21EMR HDMI 2.1 eARC Audio Adapter for Soundbars

The VLHA-H21EMR extracts audio from HDMI sources or ARC and eARC televisions and routes it to a soundbar. It removes the usual problem of a soundbar and a display that each expect the other to handle the return channel.

The adapter supports data rates to 48Gbps and is HDMI 2.1 and HDCP 2.3 compliant, handling UHDTV up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz. HDMI 2.1 protocols including VRR, ALLM, QMS, QFT, and SBTM are supported, along with EDID management and cable equalization.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Video Latency	No Latency

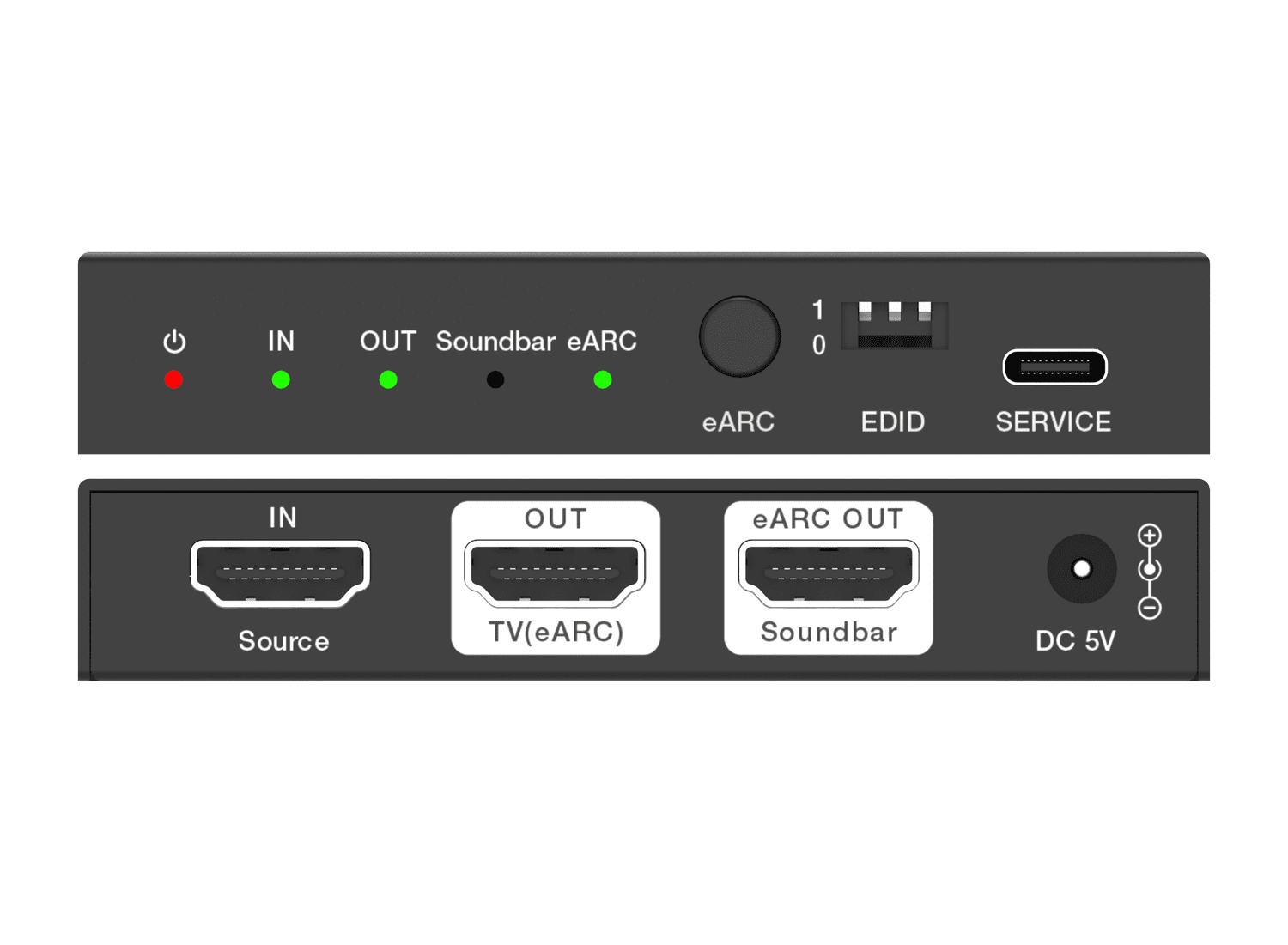

Inputs	1 x Source IN [HDMI Type A, 19-pin female]
Outputs	1 x TV(eARC) OUT [HDMI Type A, 19-pin female] 1 x Soundbar eARC OUT [HDMI Type A, 19-pin female]
Audio Latency	No Latency
