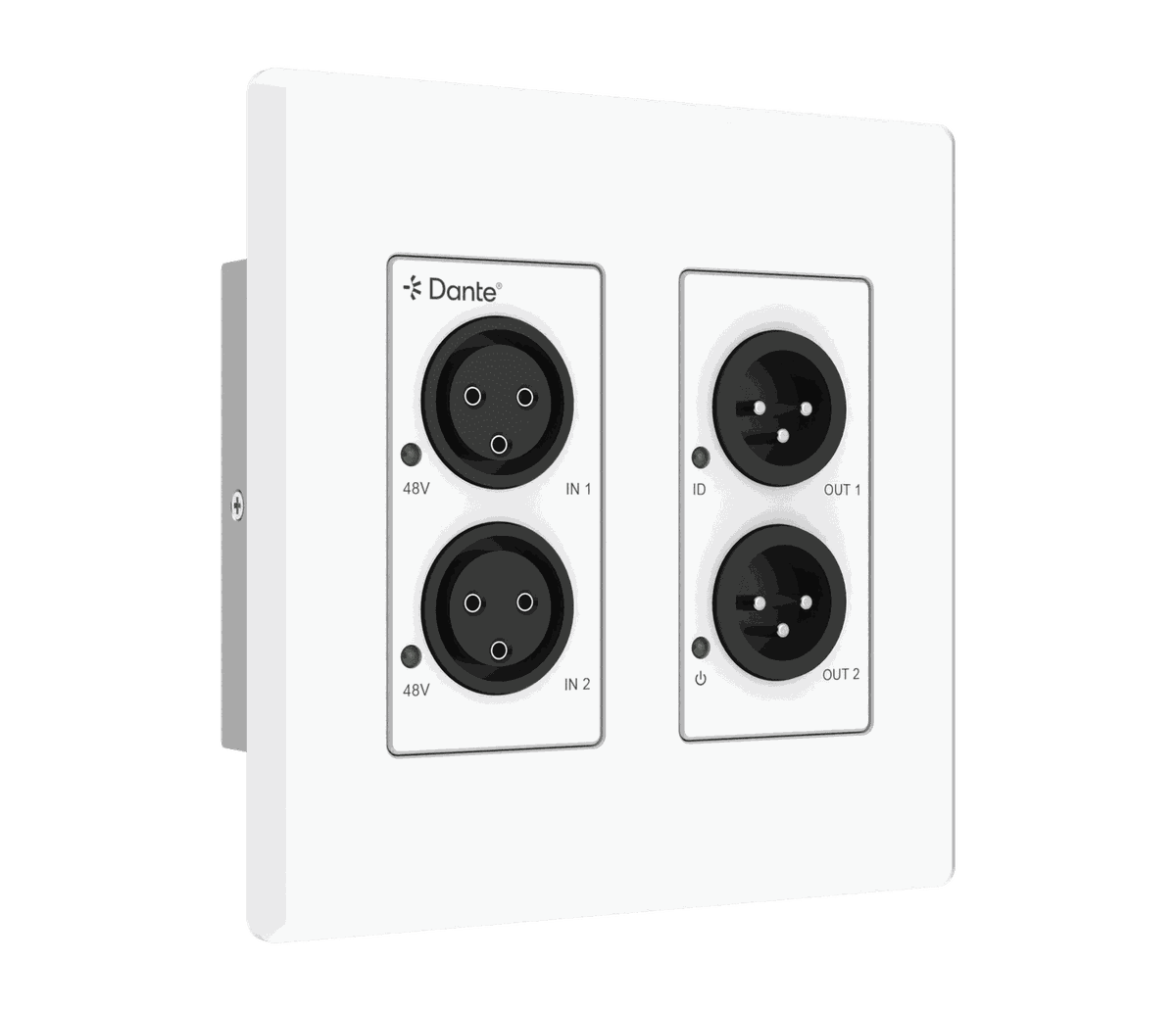

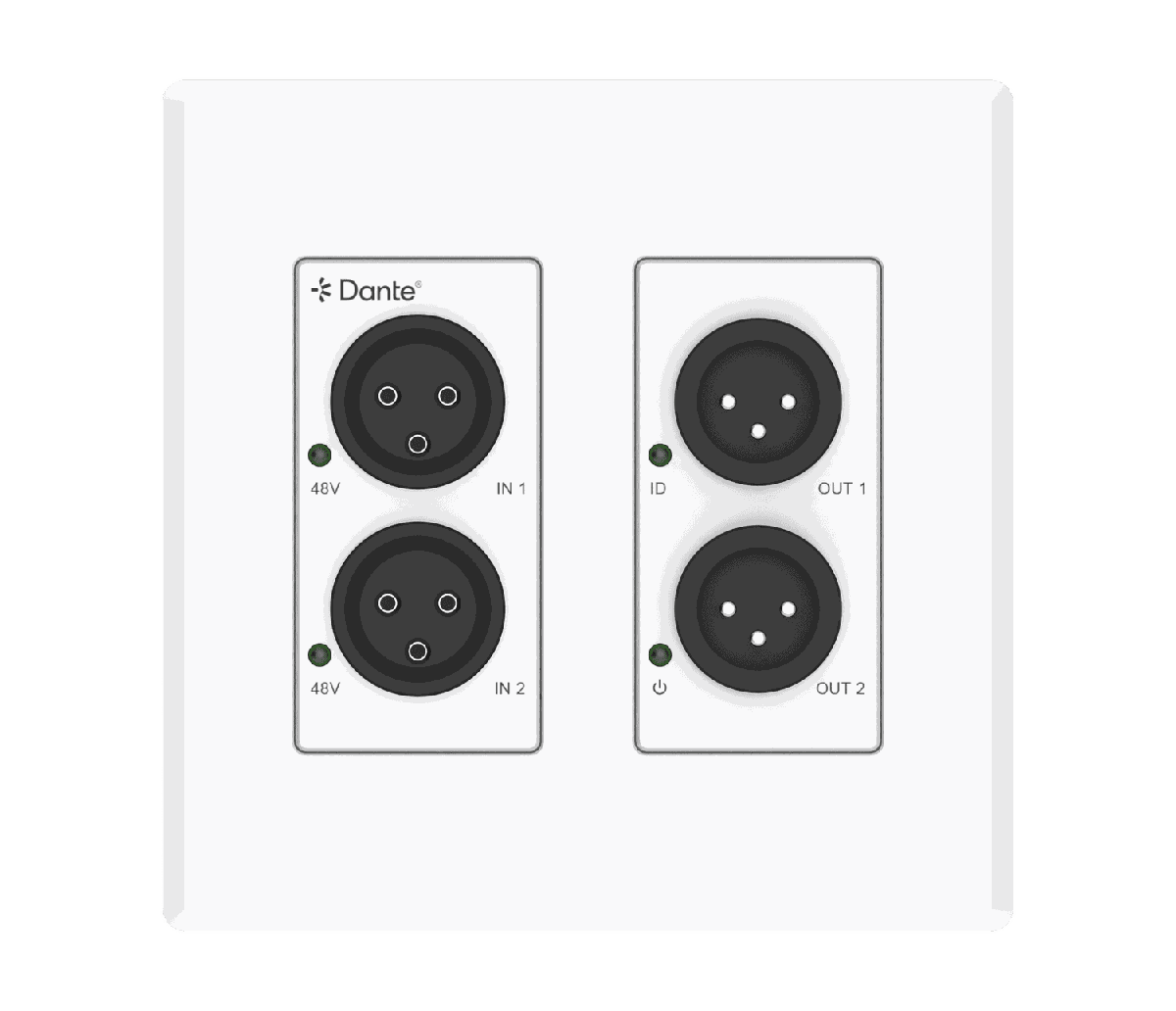

VigilLink VLDT-XL22WPUS 2x2 XLR Dante Wall Plate Converter, US 2-Gang

The VLDT-XL22WPUS brings Dante audio to the wall of a conference room or classroom on balanced XLR connectors, two in and two out. Each input has 48V phantom power with its own front-panel control, so a condenser microphone can be powered at the point of capture rather than back in the rack.

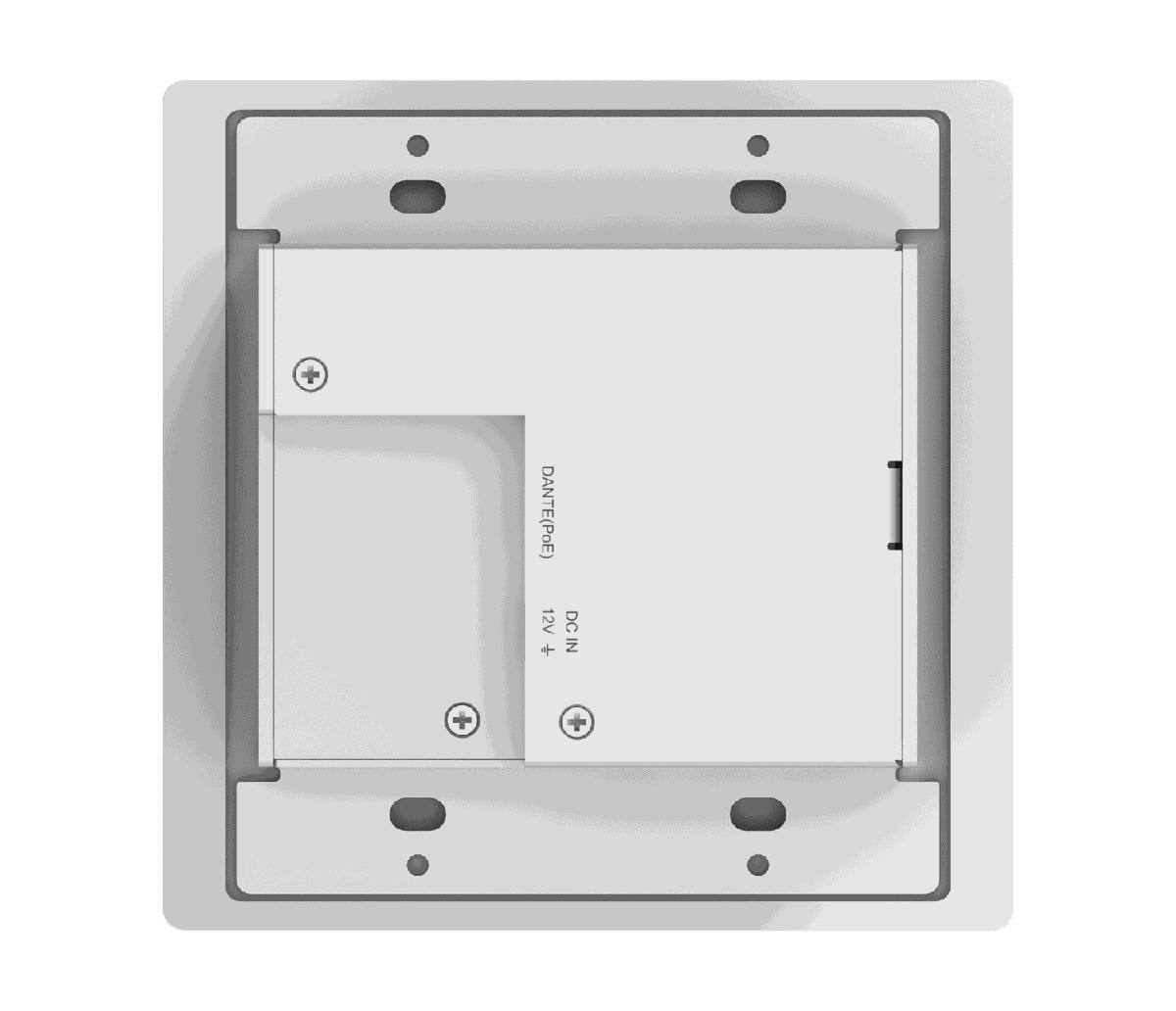

It runs Dante Ultimo 2x2 with AES67 support and selectable 1, 2, or 5ms latency. Power is PoE (IEEE 802.3af) or local 12VDC, which keeps a clean in-wall install to a single Cat cable in a standard 2-gang Decora opening.

Network Bandwidth100Mbps / 328ft (100m)
Transmission Distance328ft / 100m (CAT6/6A/7)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Dynamic Range>90dB @ 0dBu, 1kHz A-weighted
Audio S/N Ratio>90dB @ 0dBu, 1kHz A-weighted
Audio THD+N<0.015% at +4dBu, 1kHz
Output Impedance300 Ohm
Audio LatencyConfigurable Dante device latency: 1ms, 2ms, or 5ms (via Dante Controller)
