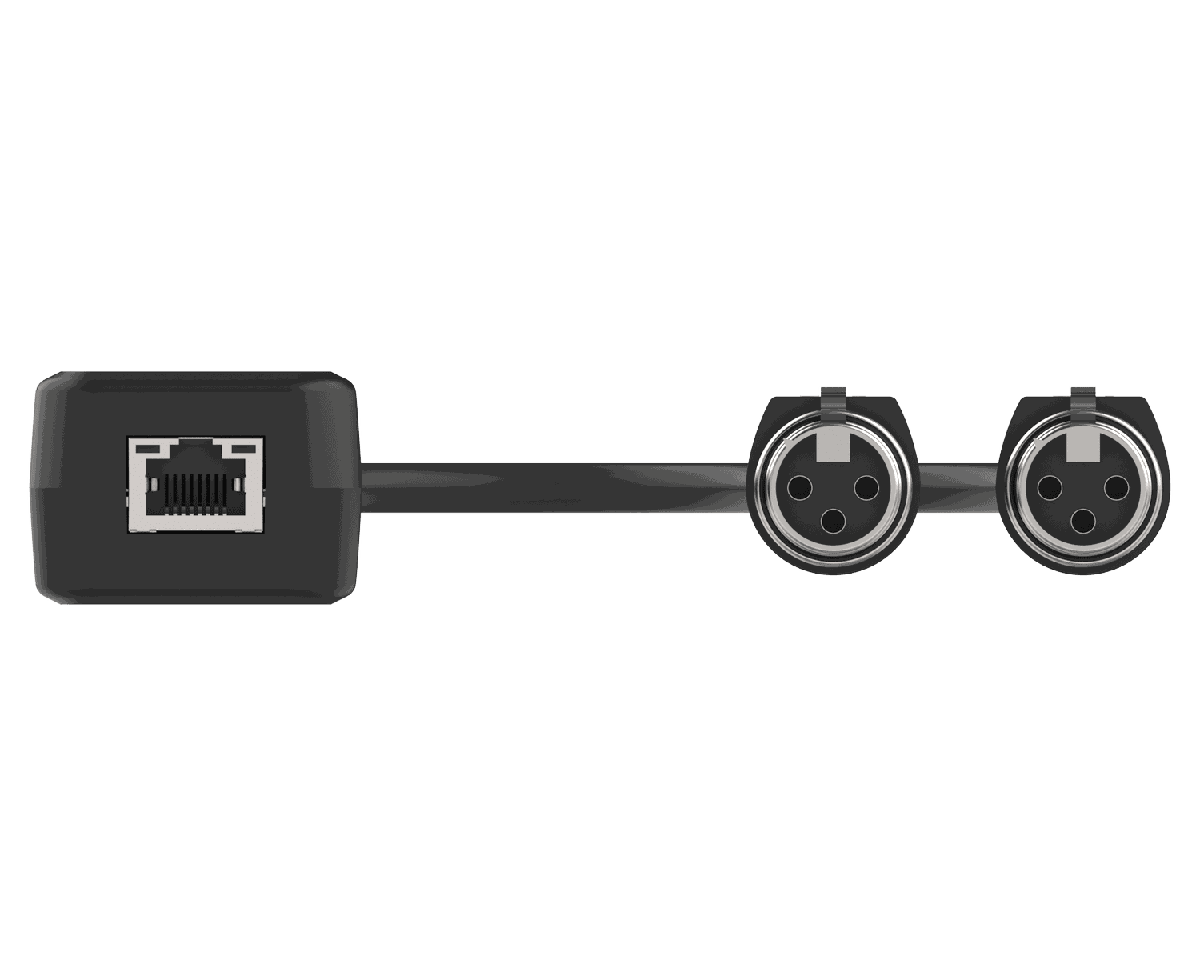

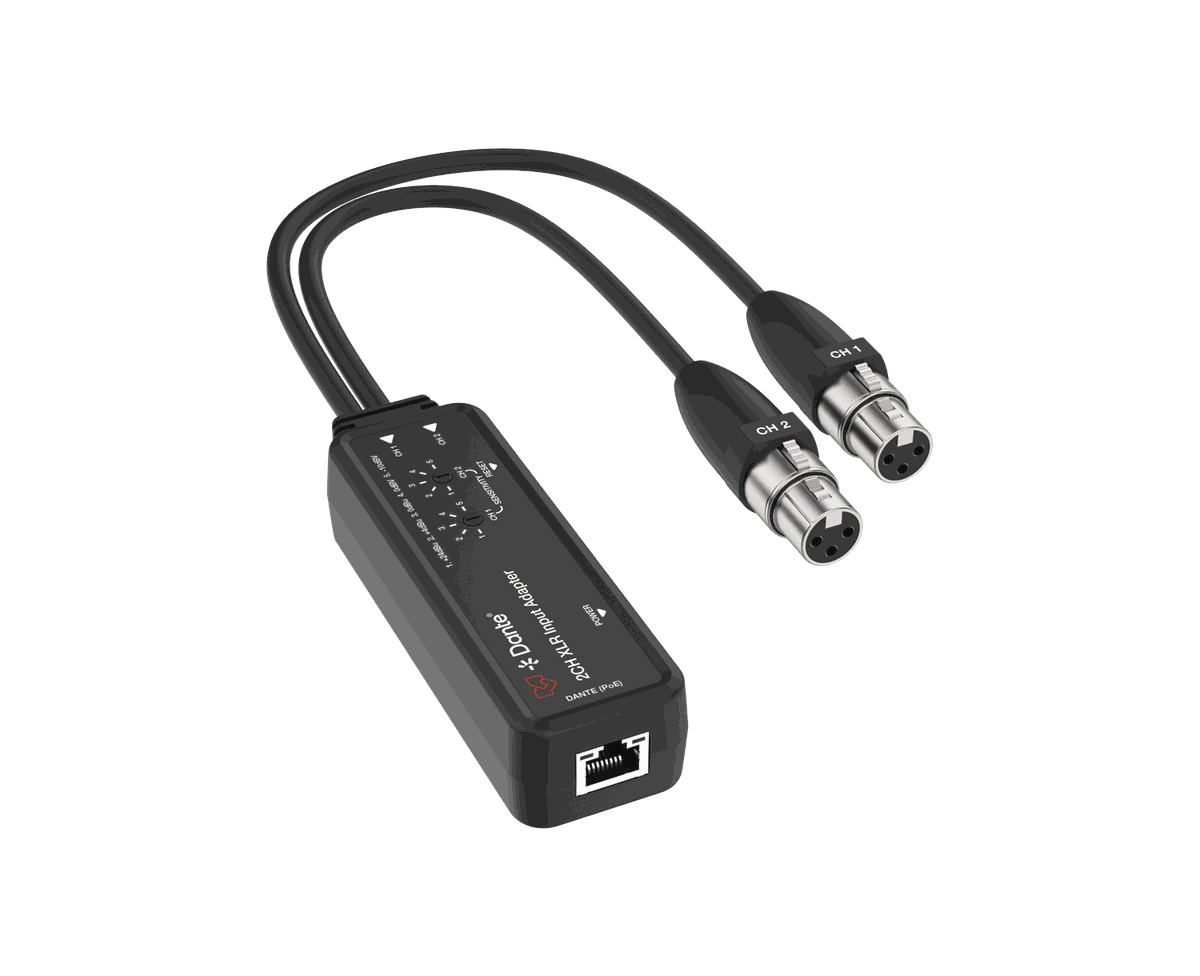

VigilLink VLDT-XL2DT 2-Channel Dante XLR Input Adapter

The VLDT-XL2DT takes balanced or unbalanced analog audio on two female XLR connectors and puts it on a Dante network. The XLRs sit on 30cm captive cables, accepting up to +24dBu balanced against a 20k ohm input impedance.

Input sensitivity has five selectable levels for matching microphones, mixers, and other professional sources. Dante output runs at 44.1 to 96kHz, 24-bit on the Ultimo 2x2 platform with 1, 2, or 5ms latency, powered by PoE (802.3af Class 0) or USB-C.

Network Bandwidth	100M
Input ports	2x CH1/CH2 XLR IN [XLR female plug, with 30cm cable] 1x POWER [USB-C power and firmware update port, 12-pin female]
Input	Two-channel balanced/unbalanced XLR analog audio
Output ports	1x DANTE [RJ45 connector, PoE]
Output	Dante 2CH digital audio
Transmission Distance	328ft/100m (CAT6/6A/7)
Audio Formats	XLR IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu] DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]
Audio Latency	Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
