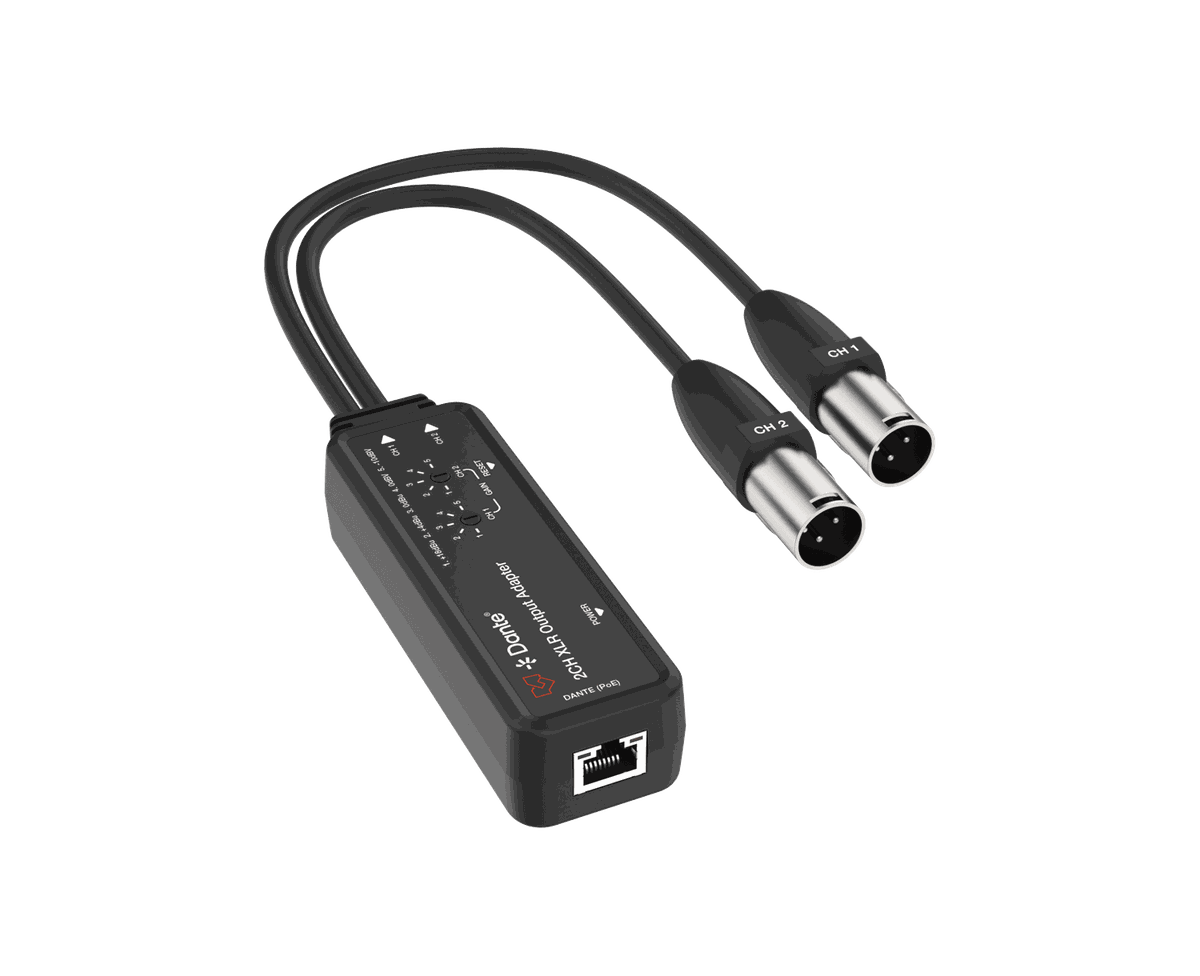

VigilLink VLDT-DT2XL 2-Channel Dante XLR Output Adapter

The VLDT-DT2XL converts two Dante channels to balanced or unbalanced analog on two XLR outputs, each on a 30cm captive cable so it plugs straight into a mixer, amplifier, or powered speaker. Maximum balanced output is +18dBu with better than 100dB dynamic range.

Output gain is selectable across +24dBu, +4dBu, 0dBu, 0dBV, and -10dBV. Dante input runs at 44.1 to 96kHz, 24-bit on the Ultimo 2x2 platform, with 1, 2, or 5ms latency, and the unit takes power from PoE (802.3af Class 0) or USB-C.

Network Bandwidth	100M
Input ports	1x DANTE [RJ45 connector, PoE] 1x POWER [USB-C with USB power only, 12-pin female]
Input	Dante 2CH digital audio
Output ports	2x CH1/CH2 XLR OUT [XLR male plug, with 30cm cable]
Output	Two-channel balanced/unbalanced XLR analog audio
Transmission Distance	328ft/100m (CAT6/6A/7)
Audio Formats	DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit] XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu]
Audio Latency	Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
