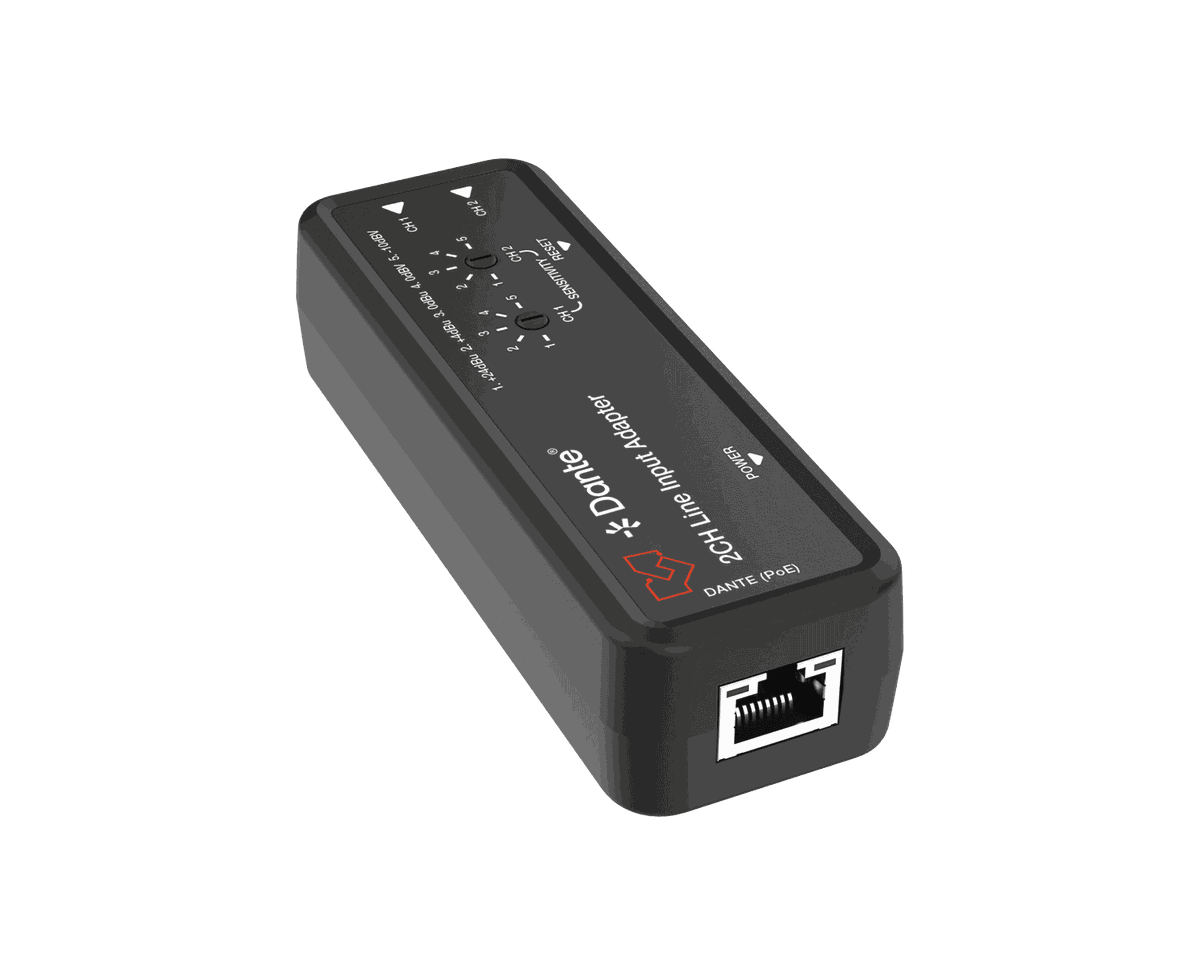

VigilLink VLDT-LA2DT 2-Channel Analog Line Input to Dante Converter

The VLDT-LA2DT is the analog entry point to a Dante system. It accepts two channels of balanced or unbalanced line audio from a mixer, playback source, or other line-level gear and puts them on the network as Dante channels.

Input sensitivity steps through +24dBu, +4dBu, 0dBu, 0dBV, and -10dBV so the source can be matched without an outboard pad. Dante output runs at 44.1 to 96kHz, 24-bit with better than 100dB dynamic range and selectable 1, 2, or 5ms latency. Power is PoE (802.3af Class 0) or USB-C, and the USB-C port also carries firmware updates.

Network Bandwidth	100M
Input ports	1x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector] 1x POWER [USB-C power and firmware update port, 12-pin female]
Input	Two-channel balanced/unbalanced analog audio
Output ports	1x DANTE [RJ45 connector, PoE]
Output	Dante 2CH digital audio
Transmission Distance	328ft/100m (CAT6/6A/7)
Audio Formats	LINE IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu] DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]
Audio Latency	Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
