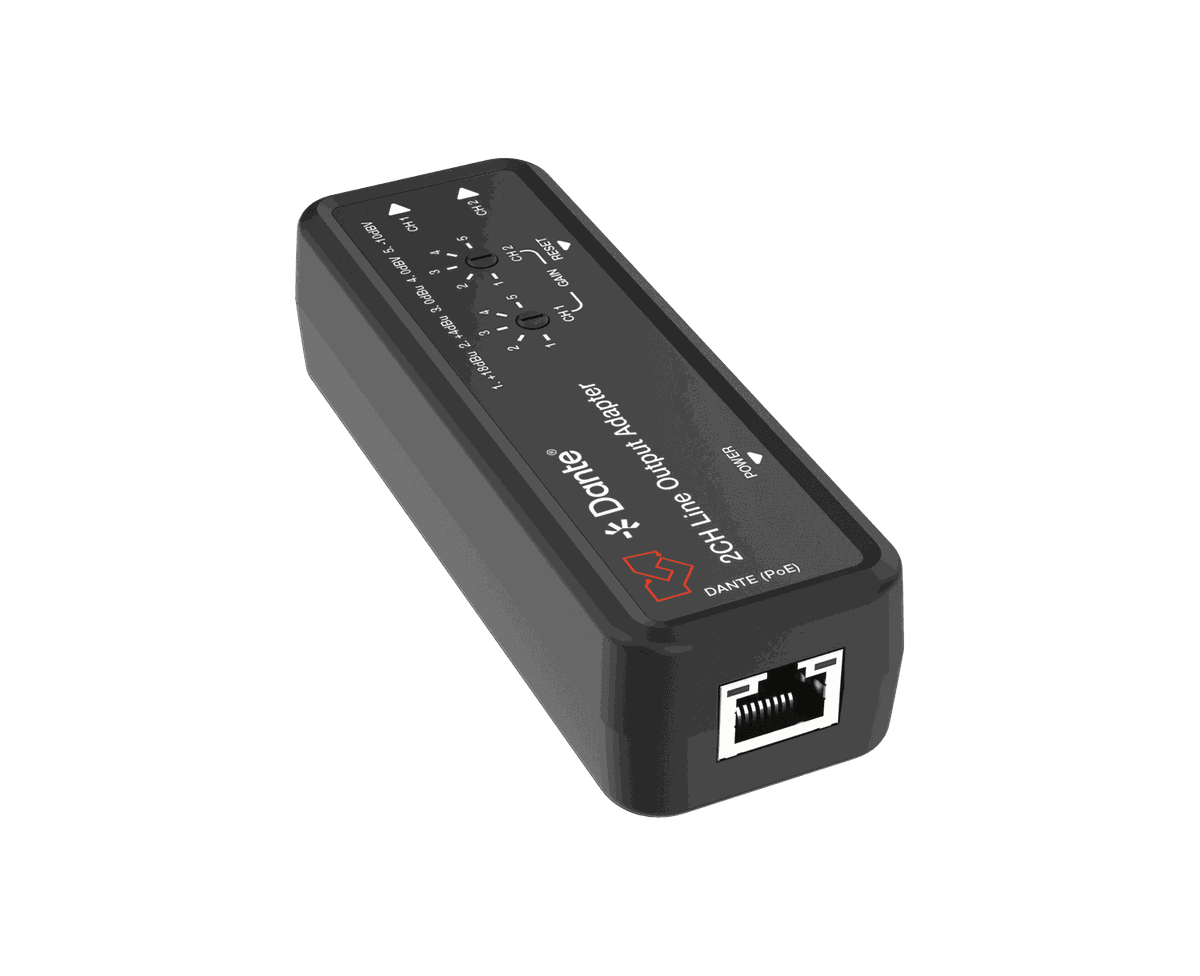

VigilLink VLDT-DT2LA 2-Channel Dante Line Output Adapter

The VLDT-DT2LA is the analog exit from a Dante network. It takes two network channels and delivers them as balanced or unbalanced line audio at up to +18dBu, with better than 100dB dynamic range, ready for an amplifier, a powered speaker, or a recorder.

Output gain steps through +24dBu, +4dBu, 0dBu, 0dBV, and -10dBV, which covers most of what a line input expects without a pad. It runs on the Dante Ultimo 2x2 platform at 44.1 to 96kHz, 24-bit, with selectable 1, 2, or 5ms latency, powered by PoE (802.3af Class 0) or USB-C in a 115 x 40 x 28mm body.

Network Bandwidth	100M
Input ports	1x DANTE [RJ45 connector, PoE] 1x POWER [USB-C with USB power only, 12-pin female]
Input	Dante 2CH digital audio

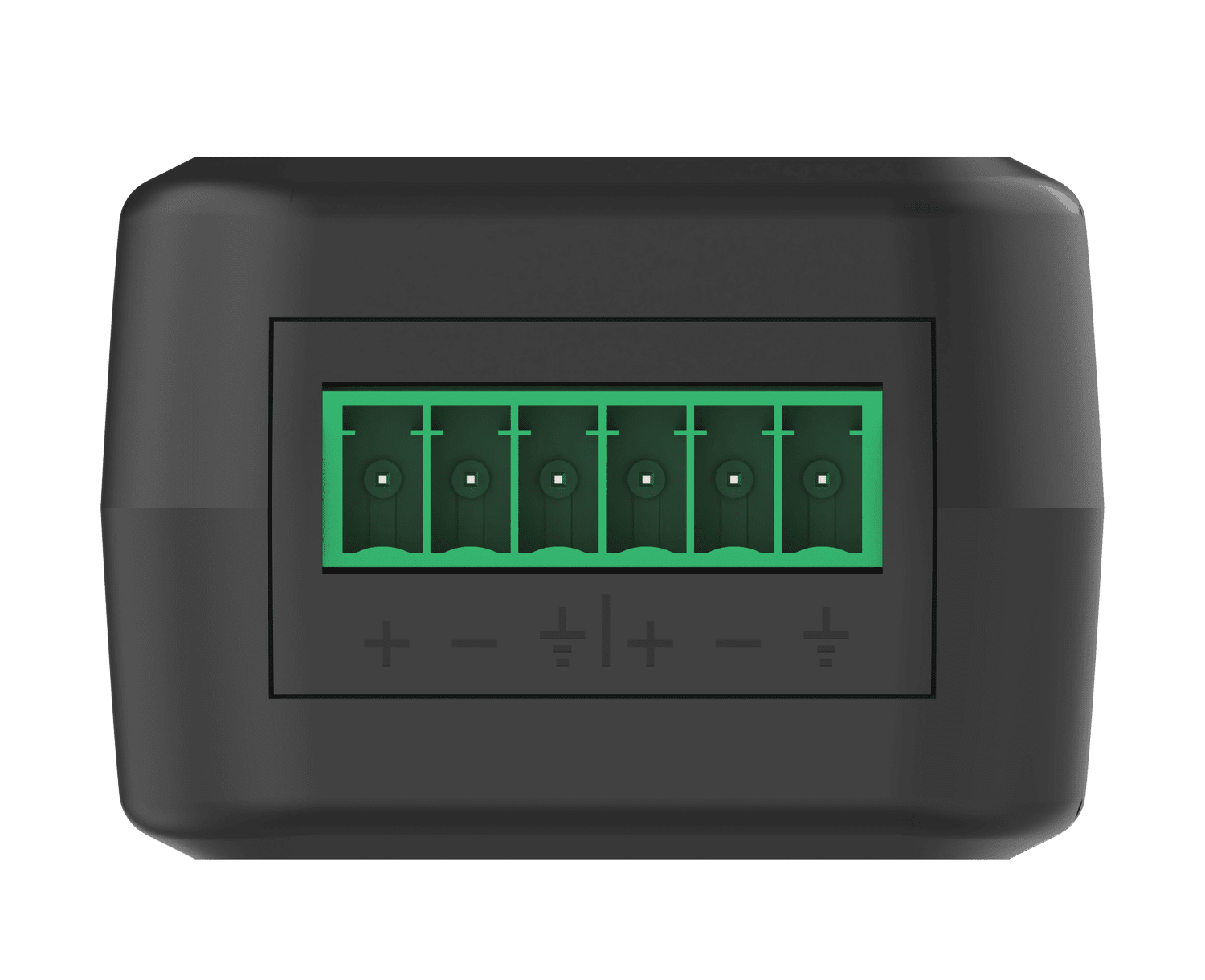

Output ports	1x CH1/CH2 LINE OUT [6pin-3.5mm phoenix connector]
Output	Two-channel balanced/unbalanced analog audio
Transmission Distance	328ft/100m (CAT6/6A/7)
Audio Formats	DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit] LINE OUT [Analog audio output, Balanced/unbalanced 2CH, Max output level +18dBu]
Audio Latency	Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
