MuxLab 500040 VGA Balun II Kit

The VGA Balun II kit puts an analog RGB signal onto a single 4-pair Cat5 UTP cable, reaching up to 350ft (107m) at 800 x 600. It uses the existing structured cabling instead of a heavy coax-bundle VGA cable, which saves conduit space on a long run.

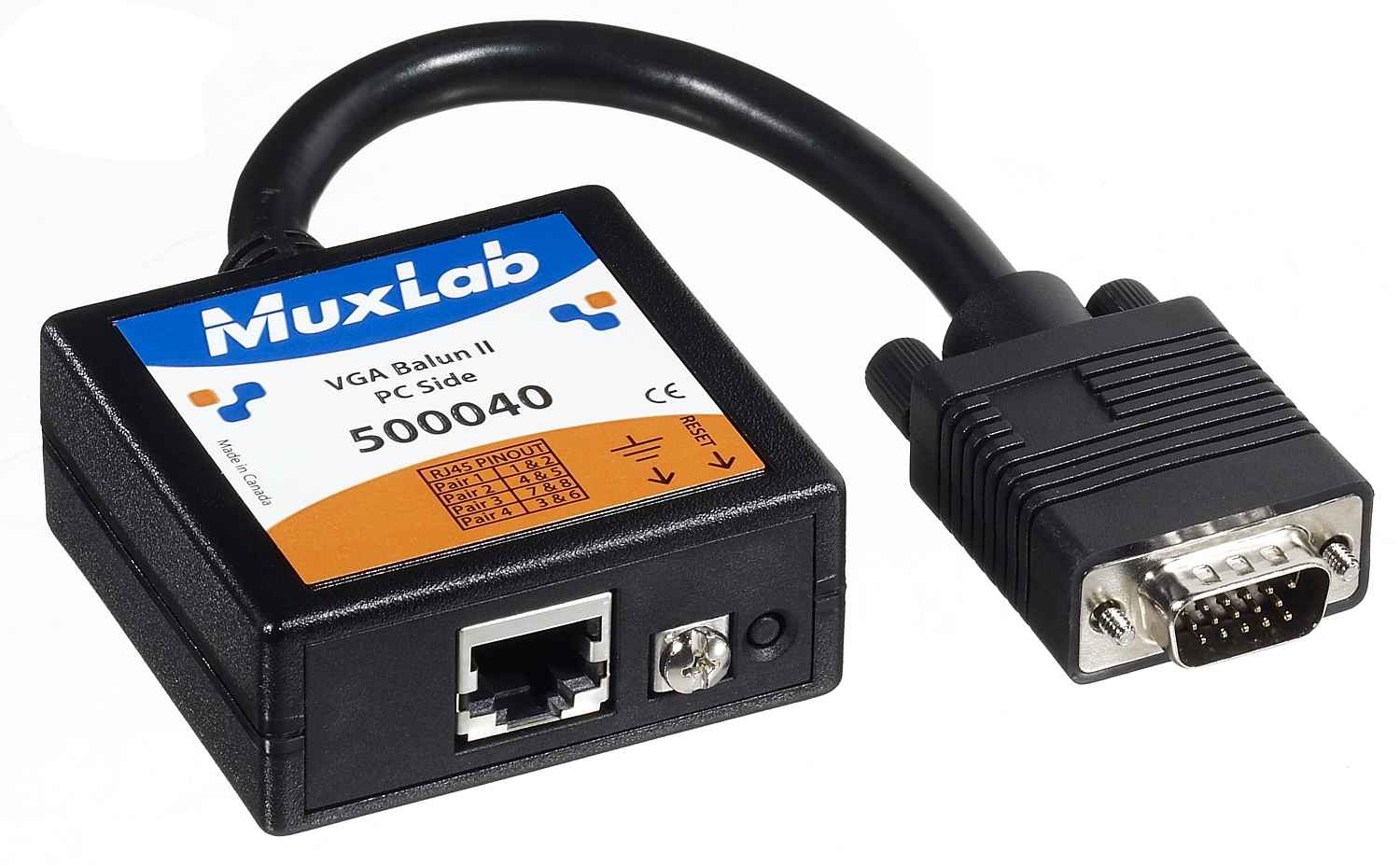

This kit pairs the 500040 source-side unit (HD15 male) with the 500042 display-side unit (HD15 female). Certain sync-sensitive displays may need the reset button on the units pressed after power-up. It does not support DDC handshaking, and it is not compatible with the 500010, 500011, or 500014.

Standard	VGA. VESA VP&D 1.0, VIP ver 2.0
Bandwidth	DC to 60MHz
Max. Distance	via Cat 5 Twisted Pair
Connectors	500040/500042: DB15 HD Plug, RJ45 Shielded 500041/500043: DB15 HD Receptacle, RJ45 Shielded
Input	Signals Video: 1.1Vp-p
Cable	Cat 5 or better unshielded twisted pair (UTP)
Dimensions	2.40" x 2.25 x 1.00" (6.1 x 5.7 x 2.54 cm) plus 6: (15.2cm( lead on 500040 and 500042
Weight	500041/500043: 2.34 oz (66 gms). 500040/500042: 3.87 oz (110 gms)
