MuxLab 500039 Stereo Hi-Fi Video Balun 2-Pack

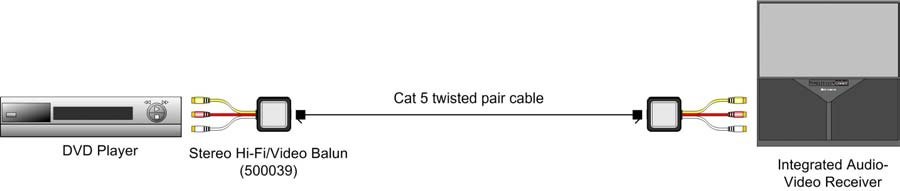

The 500039 carries one composite video signal plus full-bandwidth stereo audio over unshielded twisted pair, reaching up to 2,200ft (670m) point to point. Audio bandwidth runs 20Hz to 20kHz, which is why it is specified for Hi-Fi rather than intercom-grade audio.

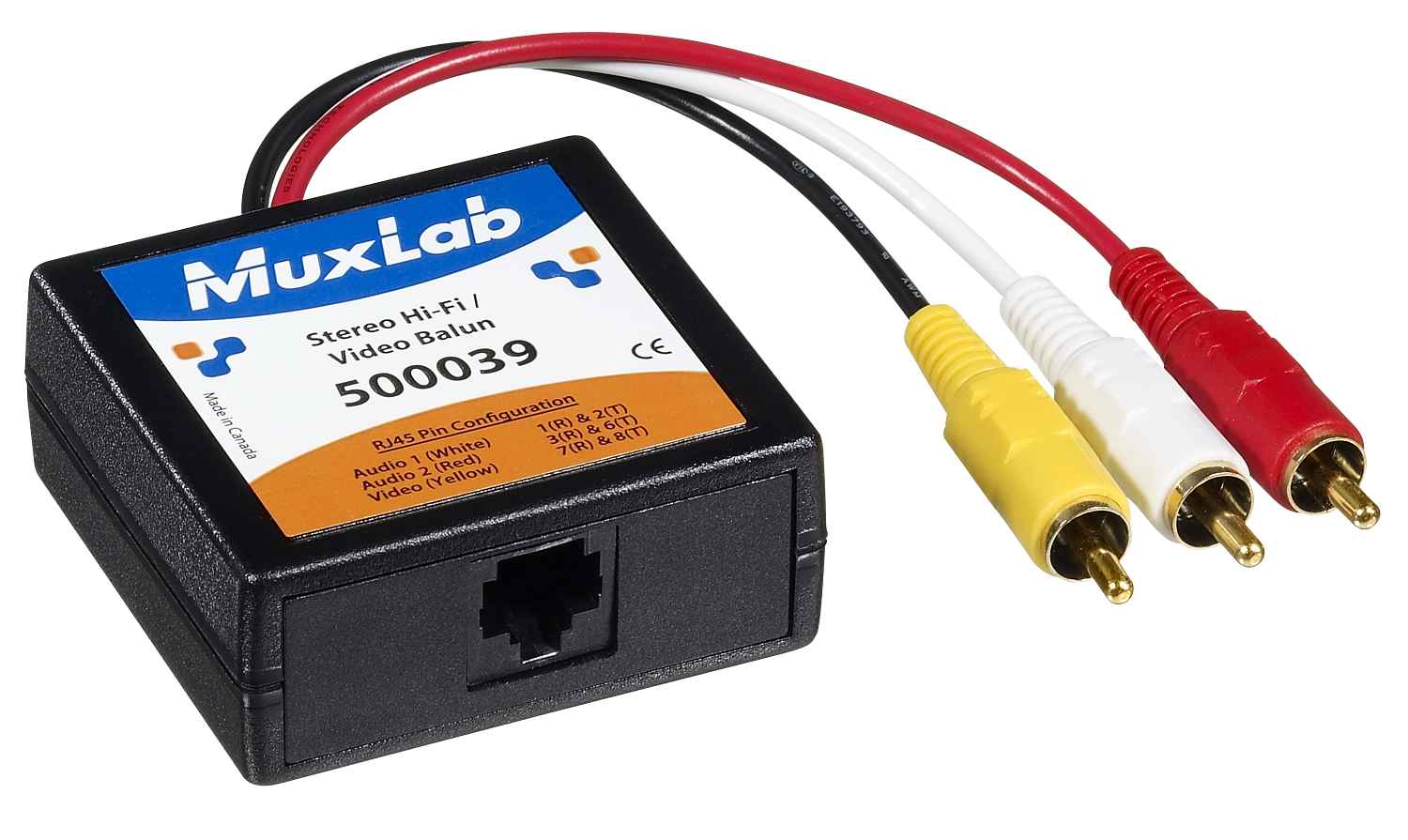

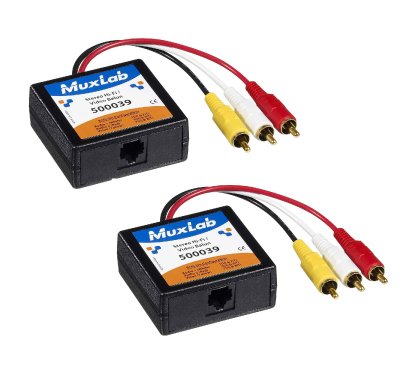

This 2-Pack ships the two units needed for one end-to-end link. Built-in color-coded cable leads keep the terminations obvious during install, and the compact body fits behind a rack panel or inside a ceiling enclosure.

Standard	Composite video (NTSC, PAL, SECAM) equipment
Bandwidth	DC to 8 MHz 20 Hz to 20 KHz over the distance range
Connectors	One (1) RCA-M for video (yellow) Two (2) RCA-M for stereo audio (red, white) One (1) RJ45 for Cat5E/6
Cable - UTP	24AWG or lower solid copper twisted pair wire
Dimensions	2.40" x 2.25" x 1.00" (6.1 x 5.7 x 2.54 cm) plus 6" (15.24cm) cable leads for video and stereo audio
Weight	3.1 oz (89 gms)
Enclosure	Fire retardant plastic
Impedance	75 ohms 600 ohms min. Max. Input 1.1Vp-p 1.1Vp-p
