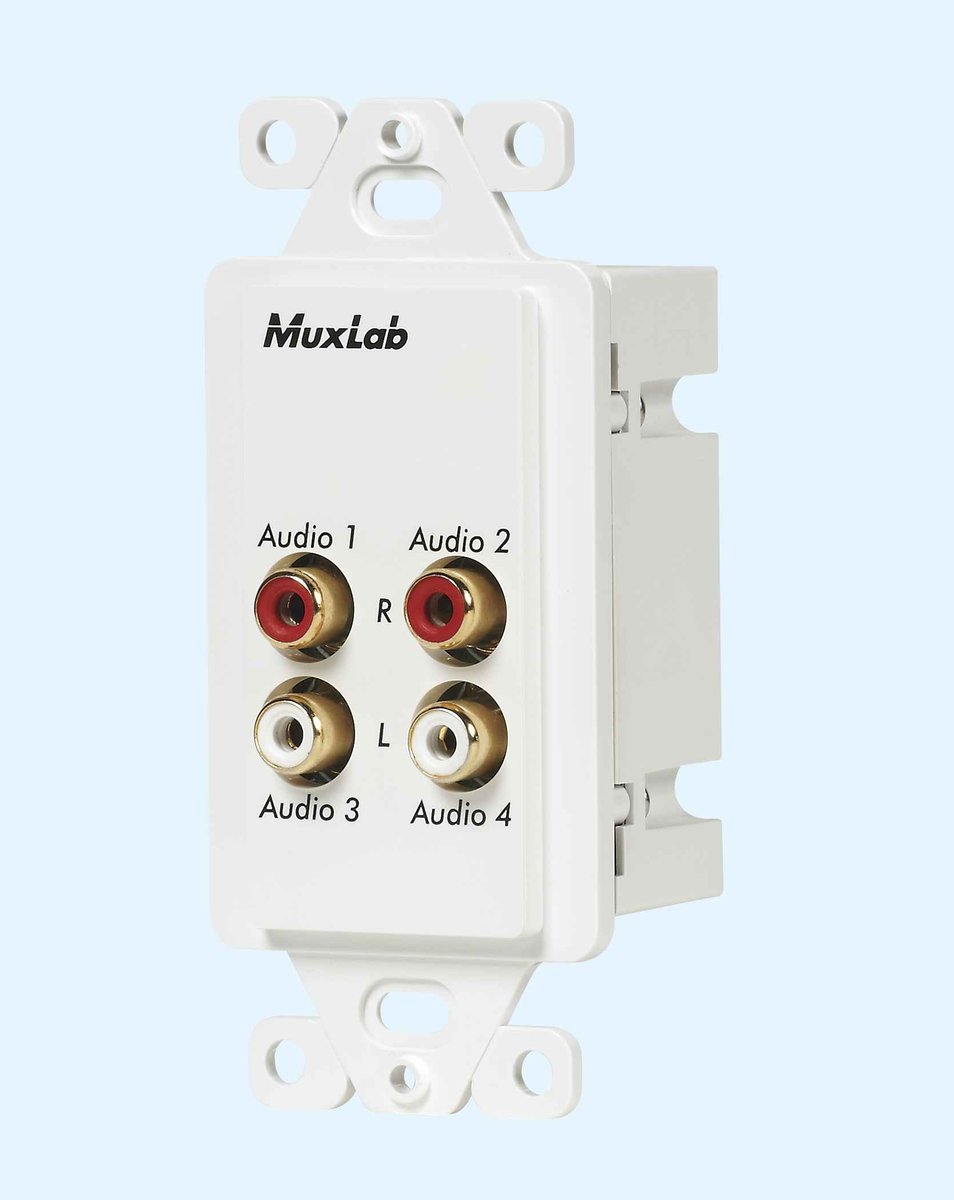

MuxLab 500033 Quad Audio Balun

The 500033 carries up to four individual RCA channels, or two stereo pairs, over a single Cat5e/6 cable to 3,250ft (1km). It is passive, so a pair of units replaces four audio runs with one structured cable and no power at either end.

Connectors are color-coded female RCA sockets, which lets you use standard patch leads instead of fixed pigtails. Frequency response is 20Hz to 20kHz over the distance range. Used in pairs, it is a straightforward way to get zone audio across a building on cable that is already in the wall.

Standard	Unbalanced line-level analog audio
Bandwidth	20 Hz to 20 kHz Peripherals' Impedance Source 100 ohm Mx, Receiver 10 k ohm min
Audio	2: Pins 3(R) & 6(T)
Connectors	Four (4) RCA receptacles for audio, one (1) RJ45 jack
Cable	Cat 5E UTP/STP 24 AWG or lower solid copper twisted pair wire
Dimensions	2.40" x 2.25" x 1.00" (6.10 x 5.72 x 2.54 cm)
Weight	3.6 oz (103 g)
Enclosure	Fire retardant plastic
