HK Audio LINEAR 9 110 XA Active 10-Inch Loudspeaker
The LINEAR 9 110 XA is the compact cabinet of the LINEAR 9 system, built to the same standard as the larger boxes rather than as a budget version. A 10-inch cone driver on a 2.5-inch voice coil crosses at 2 kHz to a 1-inch compression driver with a 1.4-inch coil, behind a rotatable constant directivity horn covering 80 by 60 degrees. Biamped Class D power is 700 W RMS, giving 126 dB average and 129 dB peak with response to 70 Hz.

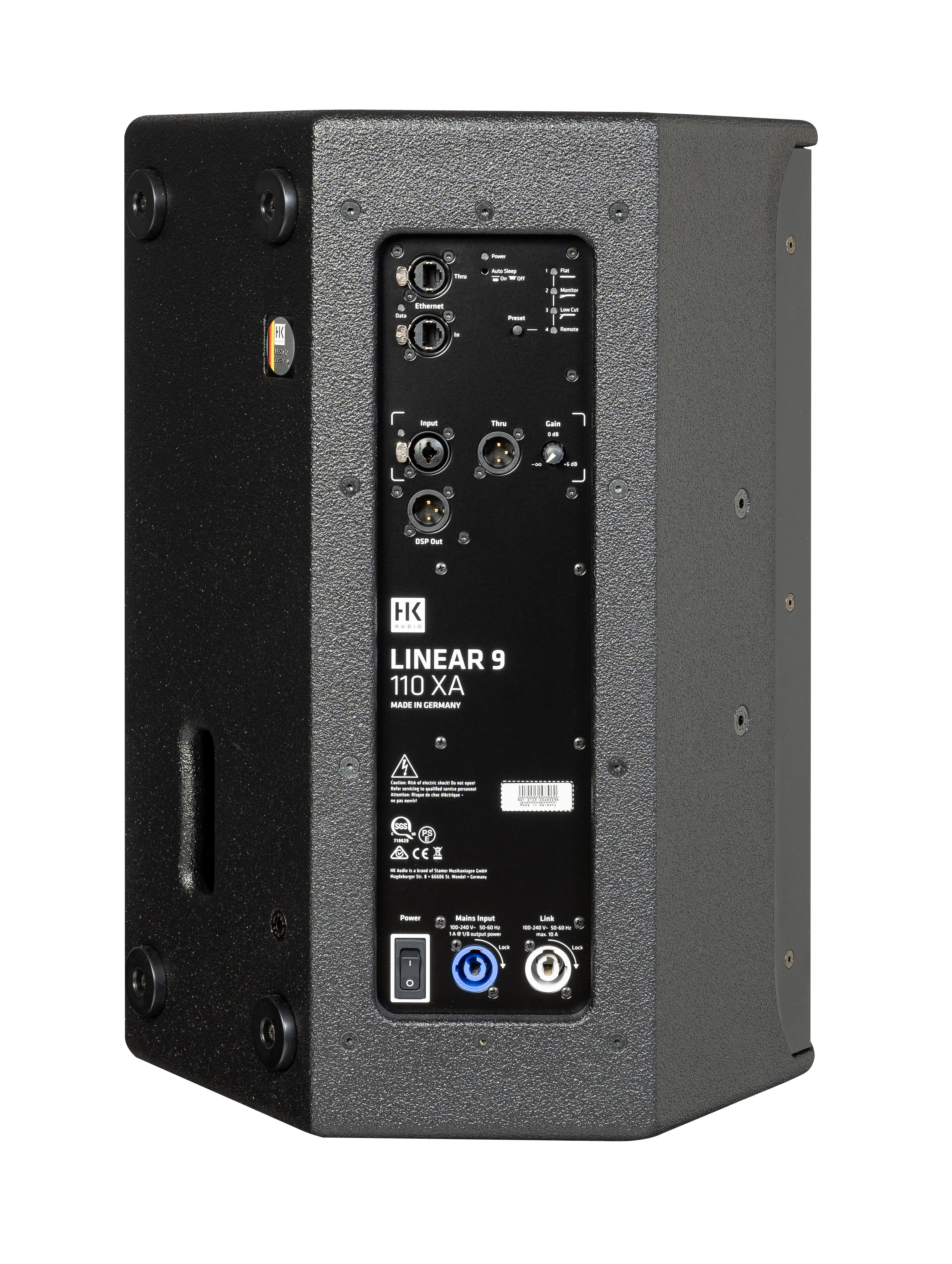

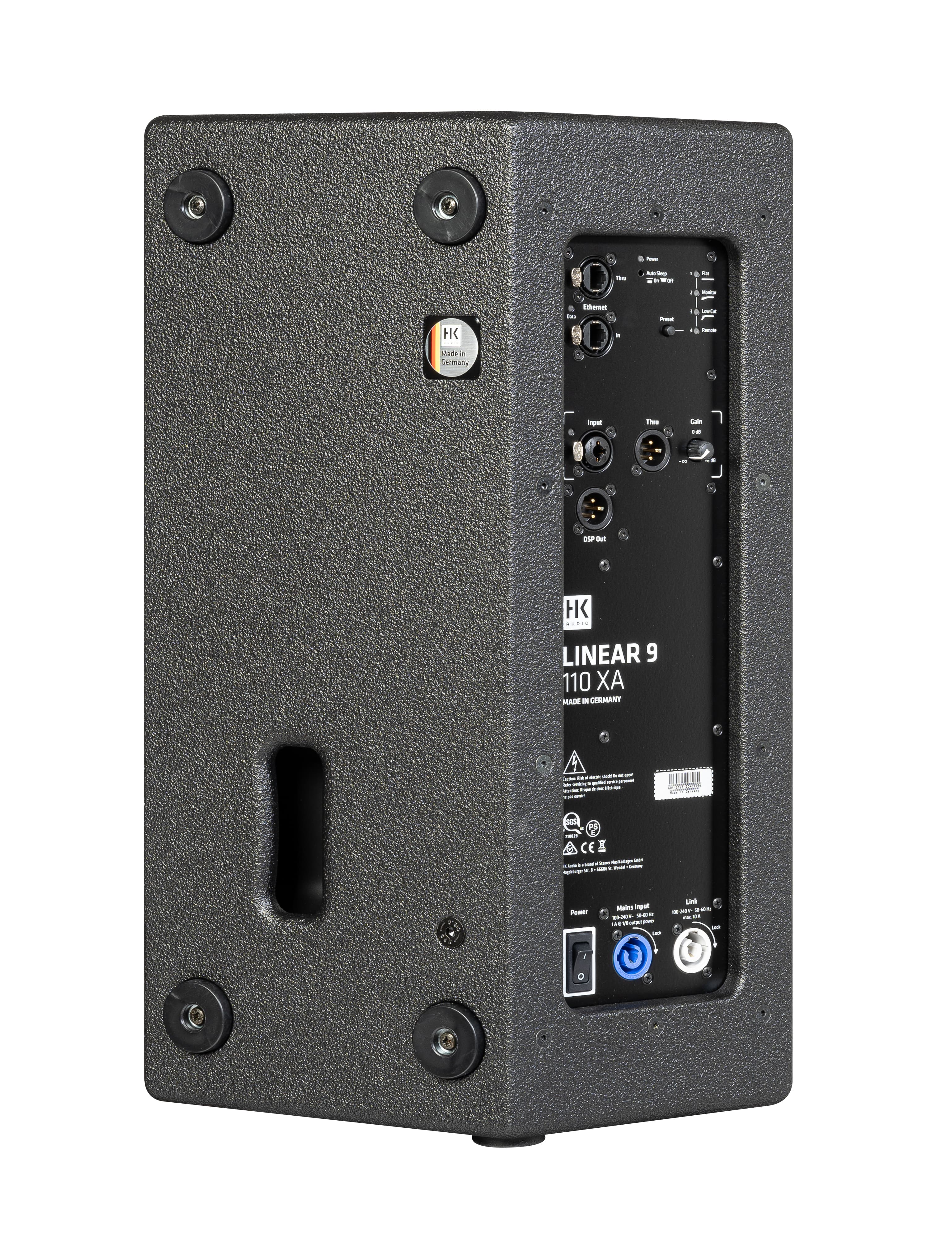

Its connectors are the touring set: powerCON NAC3 in and thru so several cabinets share a mains run, an XLR/jack combo input with an analog XLR through, a separate DSP output, and Ethercon network in and out for control and monitoring down a line of boxes. The DSP preamplifier handles crossover, EQ, and limiting per cabinet. At 36.4 pounds it works as a fill, a front fill, or a monitor alongside the larger LINEAR 9 tops.
- Dimensions36 x 54 x 31 cm
- Connections / WeightpowerCON NAC3 in and thru, XLR-jack combo in, XLR out
- Frequency Range70 Hz - 19 kHz (-6 dB), 65 Hz - 20 kHz (-10 dB)
- Crossover Frequency2 kHz
- Power AmplifierClass D biamped, 700 W RMS
| Concept | Active 2-way loudspeaker, bass reflex |
|---|---|
| Max SPL Average / Peak | 126 dB / 129 dB |
| Frequency Range | 70 Hz - 19 kHz (-6 dB), 65 Hz - 20 kHz (-10 dB) |
| Crossover Frequency | 2 kHz |
| Dispersion | 80 x 60 degrees (-6 dB), rotatable |
| Components | 1 x 10 inch cone (2.5 inch coil), 1 x 1 inch compression driver (1.4 inch coil) |
| Power Amplifier | Class D biamped, 700 W RMS |
| Connections / Weight | powerCON NAC3 in and thru, -jack combo in, XLR out, DSP out, Ethercon in and out / 16.5 kg (36.4 lb) |
| Order Code | LINEAR-9-110-XA-U |
| Dimensions | 36 x 54 x 31 cm |
| Weight | 16.5 kg |
