HK Audio LUNAR 110 XA Active 10-Inch Loudspeaker

The LUNAR 110 XA is the compact box in HK Audio's LUNAR range, aimed at people who load in and start playing. A 10-inch cone driver on a 2-inch voice coil and a 1-inch compression driver split at 2.5 kHz through a FIR crossover with a 60 dB per octave slope, which keeps the two sources from overlapping and holds the 90 by 55 degree pattern through the transition. Output is 128 dB peak from 66 Hz.

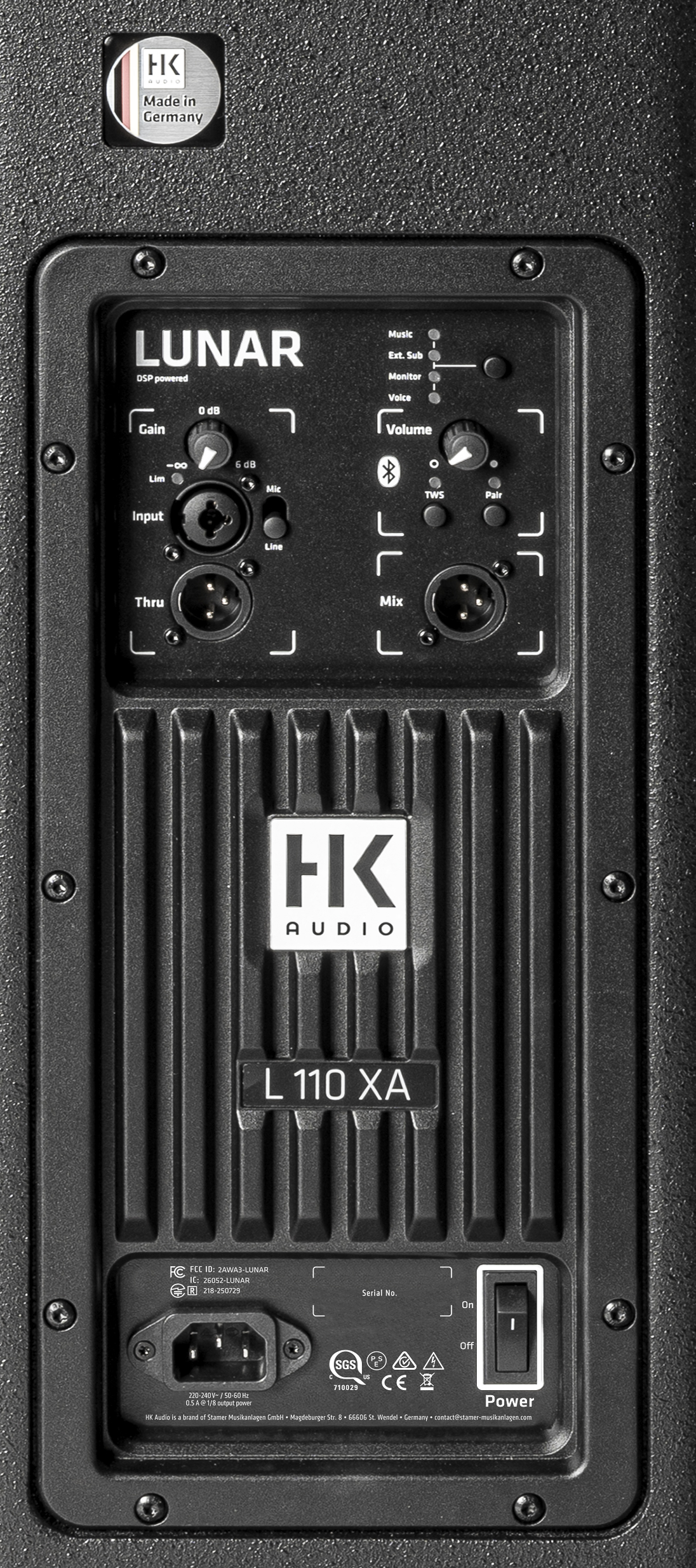

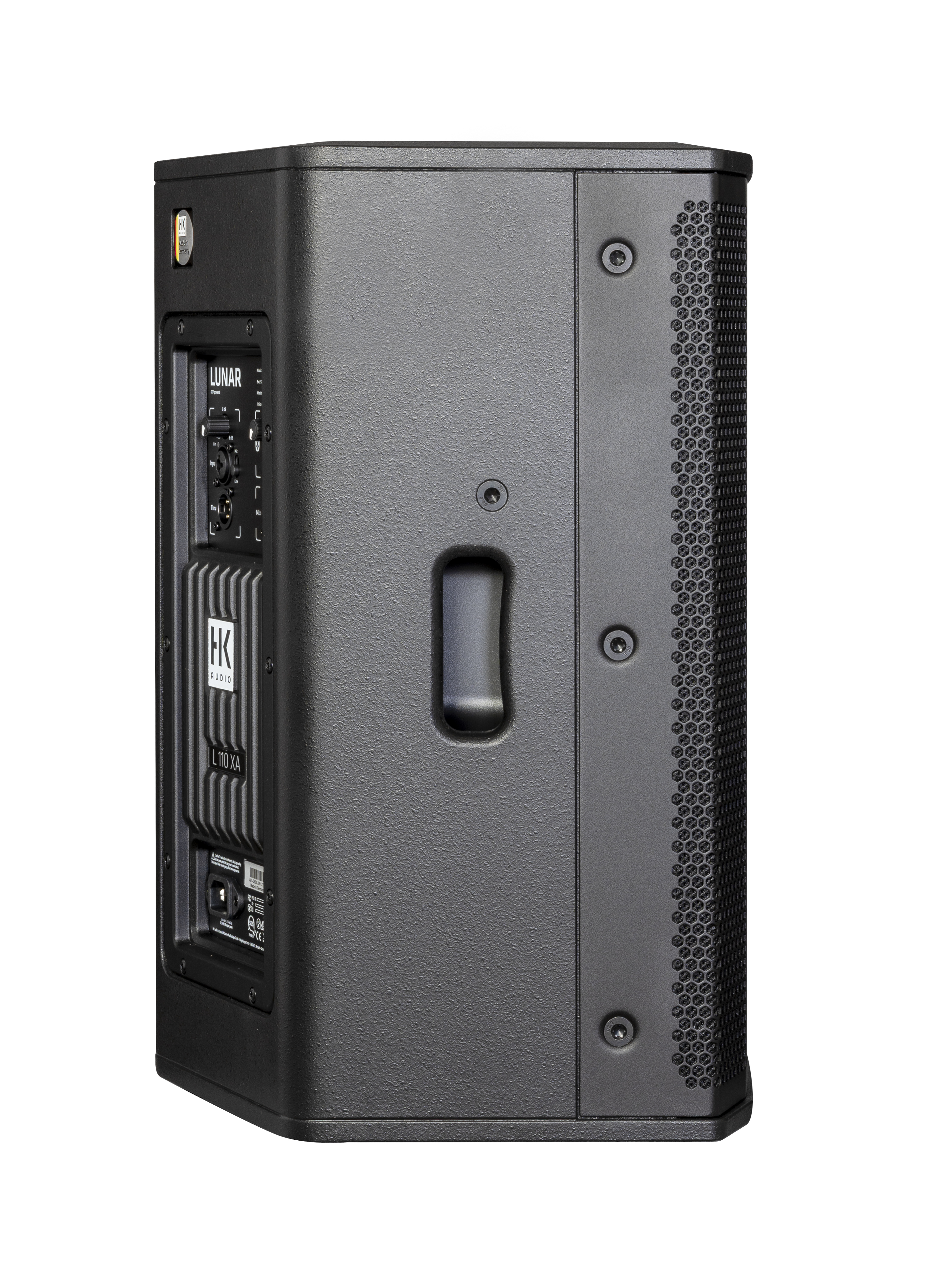

Class D biamped power runs 600 W RMS and 1200 W peak from a 48 kHz DSP with 3 ms latency, four presets (Music, External Sub, Monitor, Voice) and subsonic, peak, RMS and multiband limiting. The panel has one XLR/jack combo on mic or line, an XLR thru, a mix output, and Bluetooth 5.4 with True Wireless Stereo. The MDF cabinet has a DuoTilt 3 or 7 degree socket, four M8 points for the AP-8 bracket, a 33 degree monitor angle and two SingleGrip handles, at 35.3 pounds.

  • Dimensions (W x H x D)32.4 x 52.4 x 33.4 cm
  • Inputs / Outputs1 x XLR/jack combo (mic/line), XLR thru, XLR mix out
  • Frequency Range66 Hz - 18 kHz (-6 dB), 61 Hz - 20 kHz (-10 dB)
  • Power AmplifierClass D biamped, 600 W RMS / 1200 W peak
  • Weight16 kg (35.3 lb)
ConceptActive 2-way loudspeaker, bass reflex
Power AmplifierClass D biamped, 600 W RMS / 1200 W peak
Max SPL Peak128 dB
Frequency Range66 Hz - 18 kHz (-6 dB), 61 Hz - 20 kHz (-10 dB)
Dispersion90 x 55 degrees
Crossover2.5 kHz FIR crossover, 60 dB/oct.
Inputs / Outputs1 x /jack combo (mic/line), XLR thru, XLR mix out, Bluetooth 5.4 TWS
Dimensions (W x H x D)32.4 x 52.4 x 33.4 cm
Weight16 kg (35.3 lb)
Order CodeLUNAR-110-XA-U
