HK Audio LINEAR SUB 1500 A Active 15 inch Subwoofer

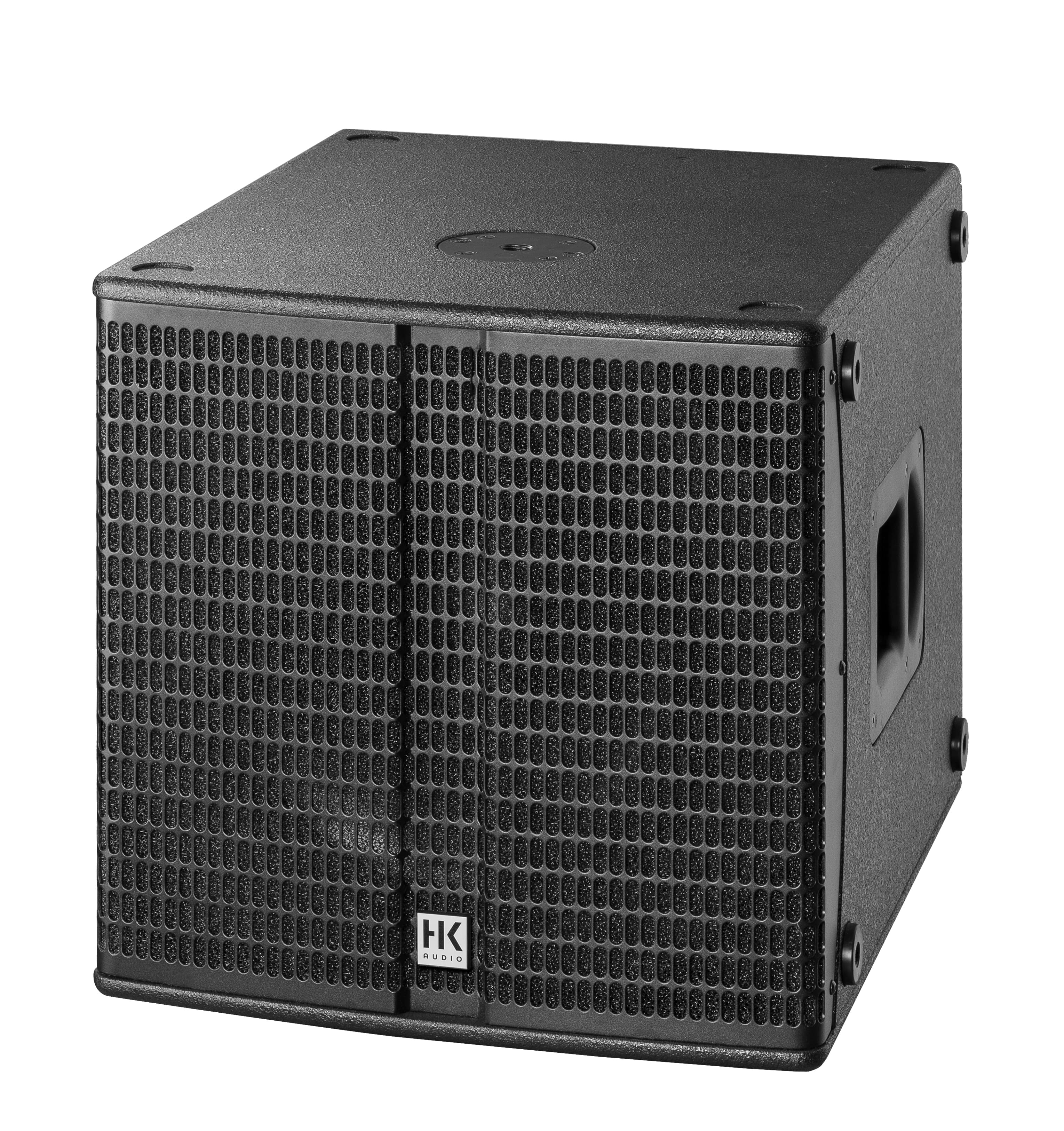

The LINEAR SUB 1500 A is the compact powered subwoofer for the LINEAR 3 tops, a 15-inch cone driver on a 3-inch voice coil in a bass reflex cabinet driven by 1200 W peak of Class D. It reaches 132 dB peak with response to 45 Hz at -10 dB, which is the tight, articulate kind of low end a band needs rather than the long tail a club system wants.

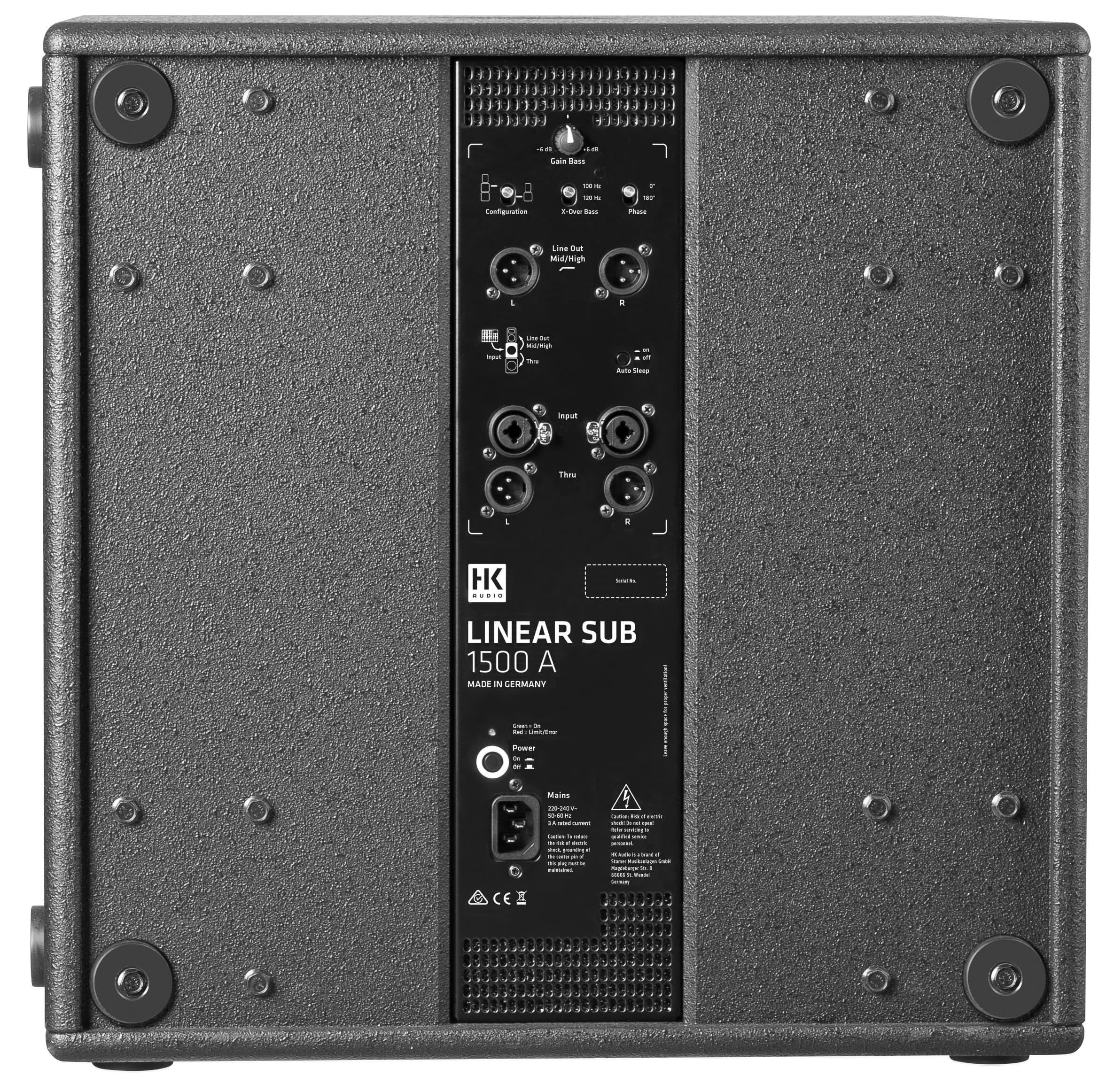

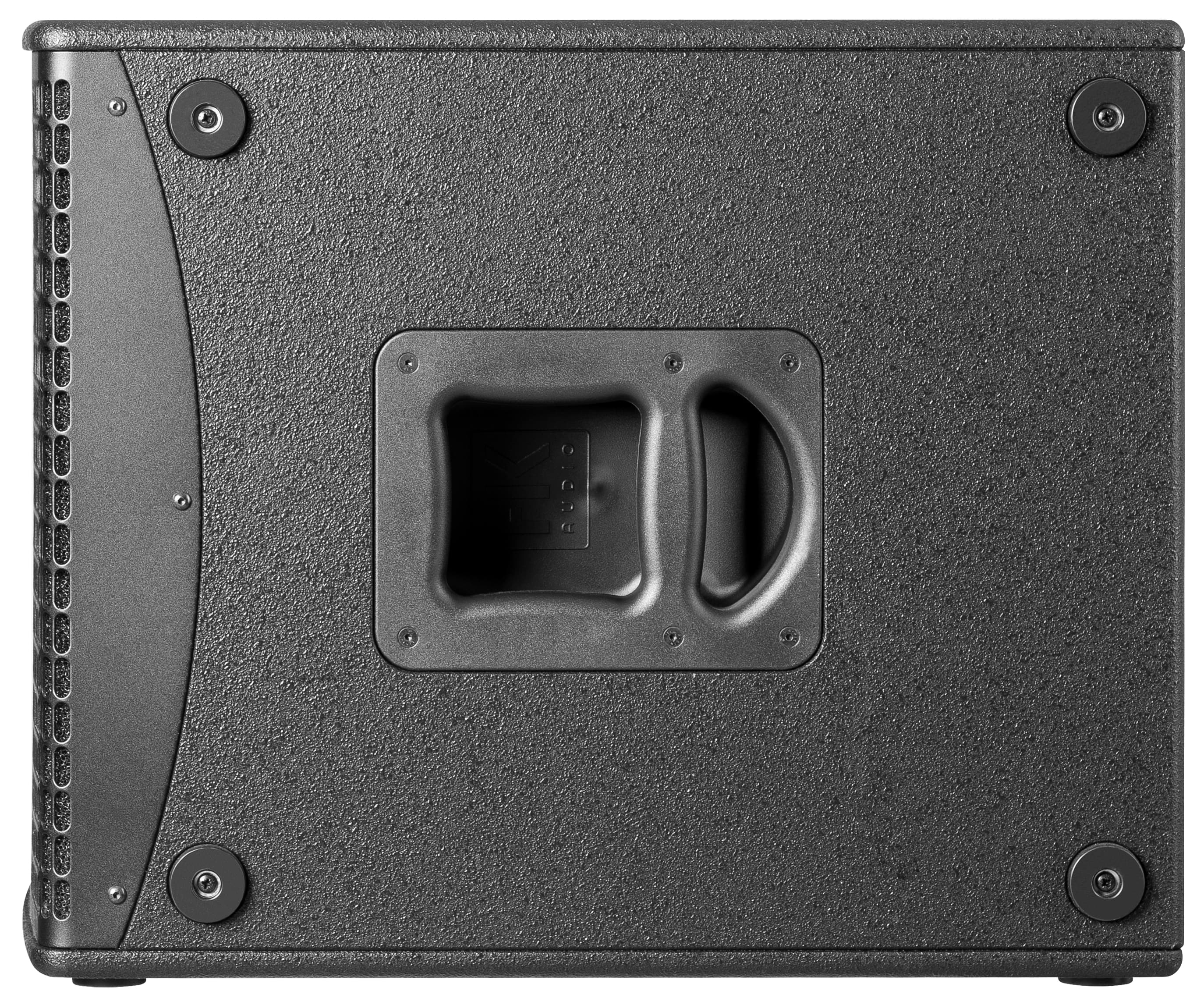

The analog front end takes two XLR/jack combo inputs and offers two XLR-Thru outputs plus two high-passed satellite outputs for the mid/high cabinets, with the crossover switchable between 100 and 120 Hz. Protection is a 24 dB per octave subsonic filter and a peak limiter. The MDF cabinet has an M20 pole socket, two MultiGrip handles and a V-lock IEC connector, and weighs 65.7 pounds.

Concept	Active subwoofer, bass reflex
Power Amplifier	Class D, 1200 W peak
Max SPL Average / Peak	130 dB / 132 dB
Frequency Range	49 Hz - crossover (-6 dB), 45 Hz - crossover (-10 dB)
Crossover Frequency	100 Hz / 120 Hz selectable
Components	1 x 15 inch cone speaker (3 inch voice coil)
Inputs / Outputs	2 x XLR/jack combo, 2 x XLR Thru, 2 x XLR high-passed satellite out
Weight	29.8 kg (65.7 lb)
Order Code	LINEAR-SUB-1500-A-U
