HK Audio LUNAR 115 XA Active 15 inch Loudspeaker
The LUNAR 115 XA is the largest LUNAR full-range cabinet: a 15-inch cone driver on a 2.5-inch voice coil and a 1-inch compression driver with a 1.4-inch coil, crossed at 1.9 kHz by a 60 dB per octave FIR filter. Response reaches 60 Hz at -6 dB and 130 dB peak, so a pair carries a small band with no subwoofer underneath.

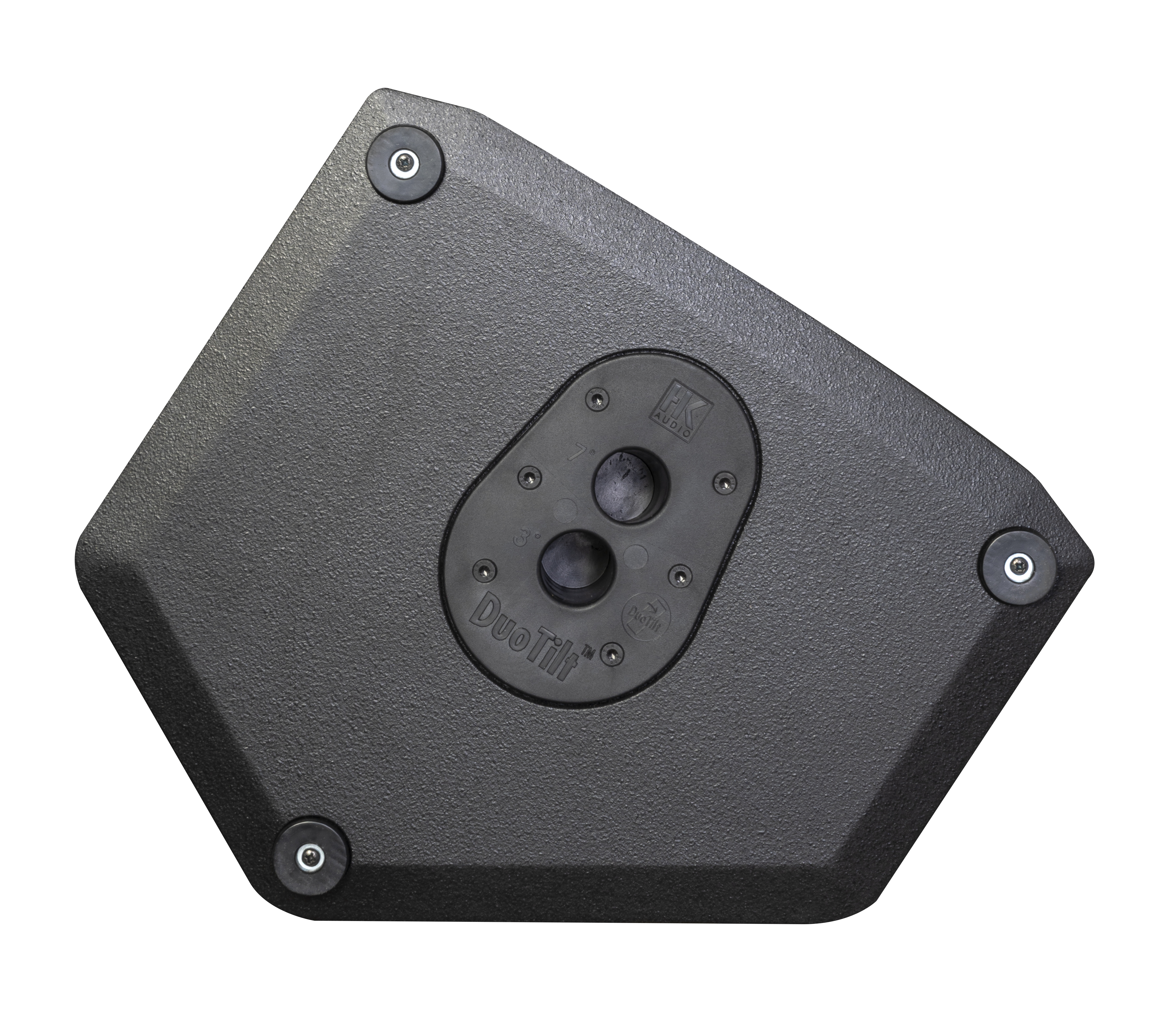

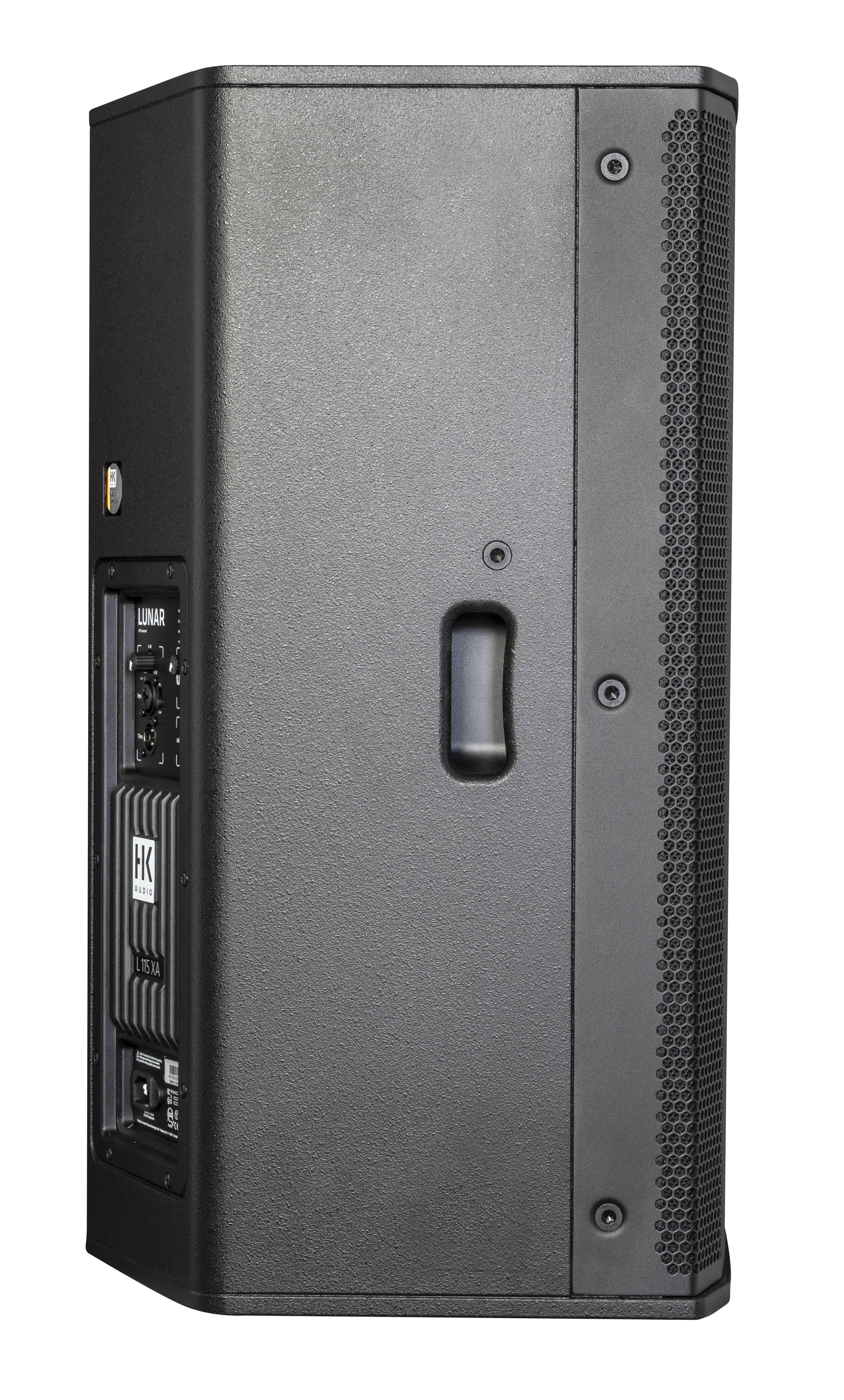

It is also the only LUNAR with two XLR/jack combo inputs rather than one, which makes it usable as a stand-alone system for a duo. Class D biamped power is 600 W RMS and 1200 W peak, with a 48 kHz DSP holding Music, External Sub, Monitor and Voice presets, subsonic, peak, RMS and multiband limiters, and Bluetooth 5.4 True Wireless Stereo. The MDF cabinet has DuoTilt 3 or 7 pole angles, four M8 points for the AP-8 bracket, a 33 degree monitor face and two SingleGrip handles, at 55.8 pounds.
| Concept | Active 2-way loudspeaker, bass reflex |
|---|---|
| Power Amplifier | Class D biamped, 600 W RMS / 1200 W peak |
| Max SPL Peak | 130 dB |
| Frequency Range | 60 Hz - 21 kHz (-6 dB), 56 Hz - 22 kHz (-10 dB) |
| Dispersion | 90 x 55 degrees |
| Crossover | 1.9 kHz FIR crossover, 60 dB/oct. |
| Inputs / Outputs | 2 x XLR/jack combo (mic/line), XLR thru, XLR mix out, Bluetooth 5.4 TWS |
| Dimensions (W x H x D) | 43 x 71.3 x 39.5 cm |
| Weight | 25.3 kg (55.8 lb) |
| Order Code | LUNAR-115-XA-U |
