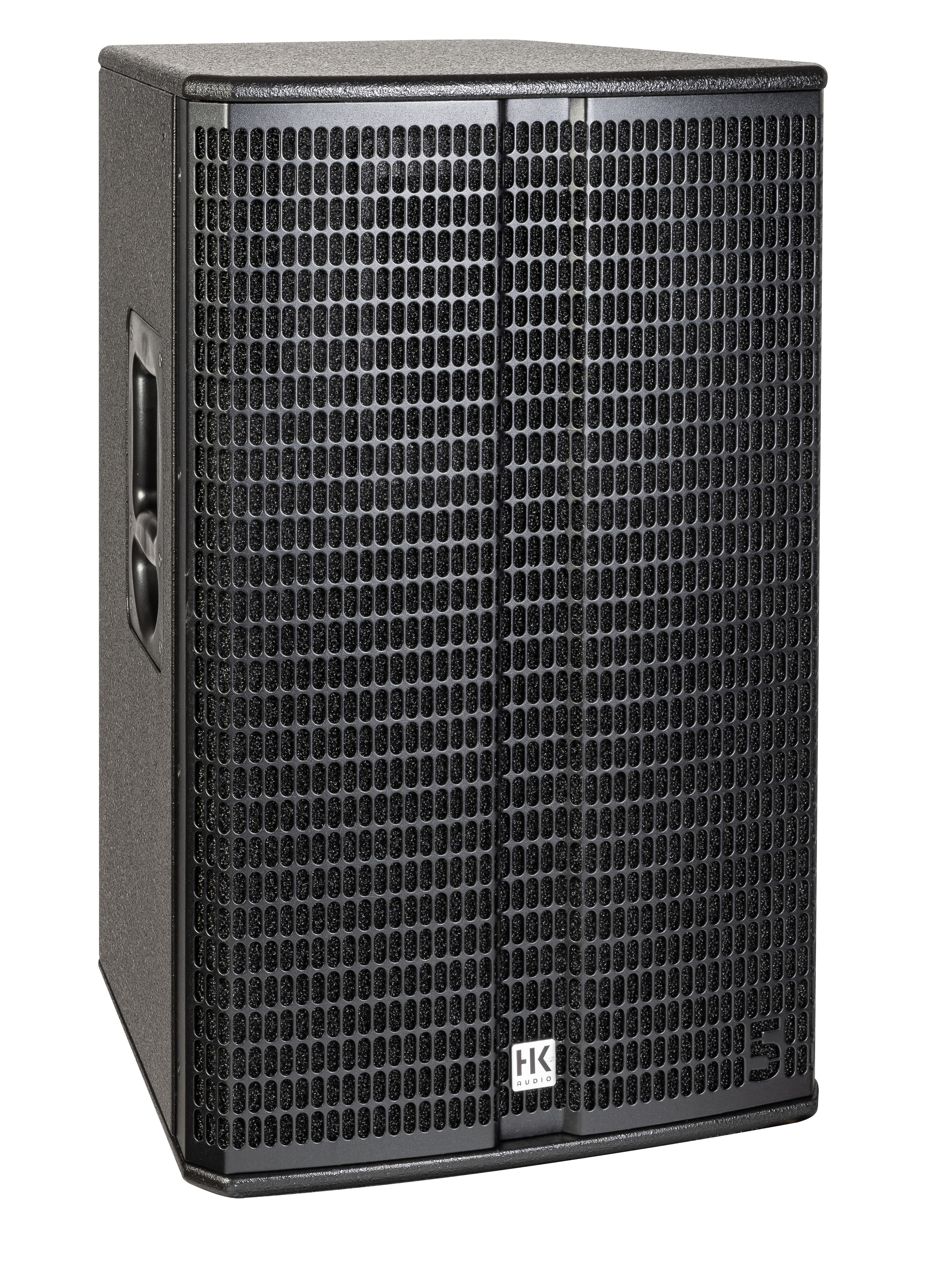

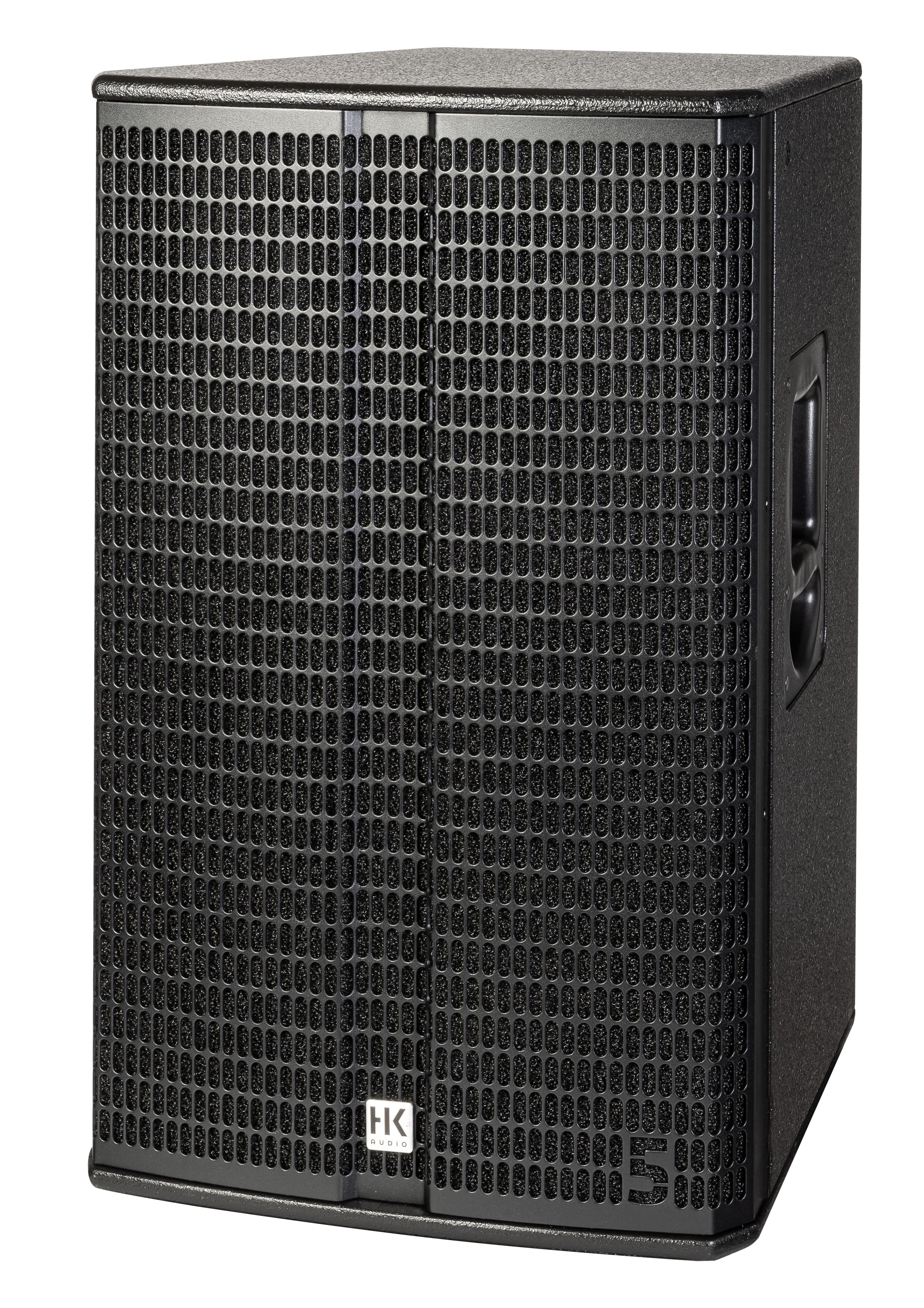

HK Audio LINEAR 5 MK II 115 FA Active Full-Range Loudspeaker

The LINEAR 5 MK II 115 FA carries a 15-inch cone driver on a 3-inch voice coil, crossing at 1.6 kHz to a 1-inch compression driver on a rotatable constant-directivity horn set to 60 by 40 degrees. It reaches 130 dB average and 138 dB peak with response from 54 Hz, and dedicated DSP presets let it run standalone as a stereo pair or paired with LINEAR 5 MK II subwoofers for full-range bass integration.

Biamped Class D power delivers 600 W RMS and 1,200 W peak through a 48 kHz DSP preamplifier with 10-band parametric EQ and under 2 ms latency, with MILAN digital audio transmission support. Connections cover an XLR/jack combo input, XLR output, DSP output, and Ethercon RJ45, powered through an IEC inlet with V-lock. The hybrid birch plywood and MDF cabinet weighs 66.6 pounds.

Power Output	600 W RMS / 1,200 W peak, Class D biamped
Max SPL Average / Peak	130 dB / 138 dB
Frequency Range	57 Hz - 18 kHz (-6 dB), 54 Hz - 19 kHz (-10 dB)
Components	1 x 15 inch cone (3 inch coil), 1 x 1 inch compression driver (1.7 inch coil)
Dispersion	60 x 40 degrees, rotatable constant directivity horn
DSP	48 kHz, 10-band parametric EQ, MILAN digital audio transmission

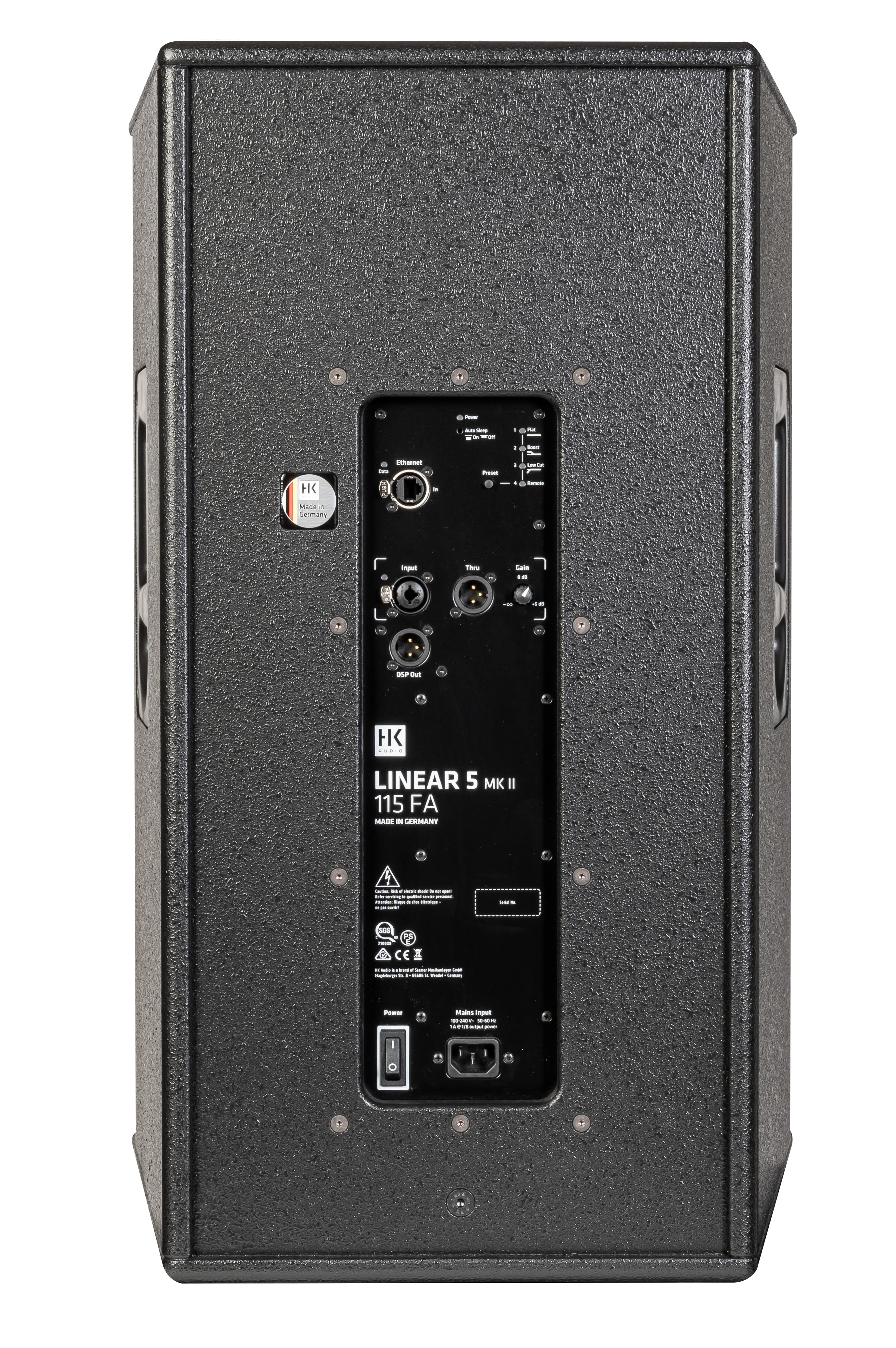

Connections	XLR/jack combo in, XLR out, DSP out, Ethercon RJ45, IEC V-lock
Weight	30.2 kg (66.6 lb)
Order Code	LINEAR-5-MK2-115-FA-U
