ESE ES463U Rack-Mount SMPTE/EBU Reader

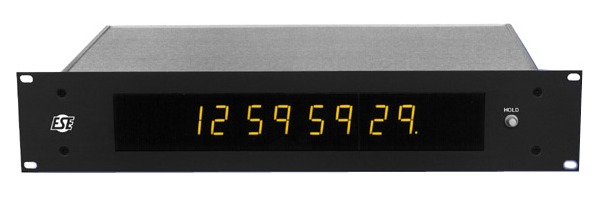

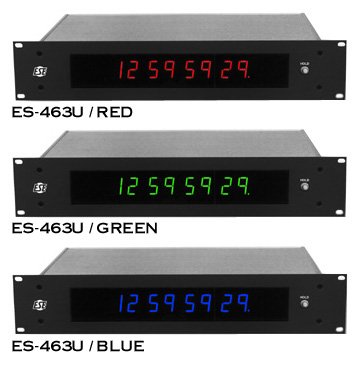

The ESE ES-463U is a rack-mount time code display built around a bright 1.0-inch amber LED readout of eight digits. It reads both SMPTE and EBU time code with automatic detection and tracks the source bi-directionally from 1/20 up to 10 times play speed, so it stays locked whether a deck is shuttling, jogging or running at speed. It can show time in 12 or 24 hour format or display the user bits carried in the code.

An error detection and correction circuit keeps the display flicker-free even when the incoming code is marginal, a front-panel Hold button freezes the reading, and a rear toggle selects time or user bits. Options add a TC90 output on a rear BNC that drives up to 100 slave displays as far as 4000 feet away, and an RS-232 output on a DB-9 connector. The 3.5 by 19 inch enclosure runs on 110-120 VAC, with 220-240 VAC and UL options available.

Type	SMPTE/EBU time code reader / display
Reads	SMPTE and EBU, automatic detection
Read Speed	Bi-directional, 1/20 to 10x play speed
Display	1.0-inch amber LED, eight digits, 12/24 hour, user bits
Error Handling	Error detection and correction for flicker-free display
Controls	Front Hold button; rear time / user-bits toggle
Options	TC90 output (BNC, up to 100 slaves / 4000 ft), RS-232 (DB-9)
Power	110-120 VAC (220-240 VAC and UL optional)
Enclosure	3.5 x 19 inch rack mount
