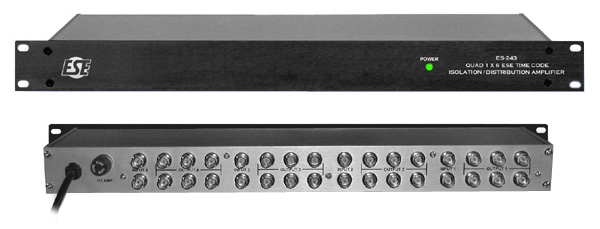

ESE ES243 Time Code Distribution Amplifier

The ES-243 is a quad time code distribution amplifier that fans a single timing signal out to a whole facility. It accepts any ESE time code or IRIG time code in its TTL (DCLS) form and delivers up to 24 identical copies through four separate, isolated channels of six outputs each, so four sources or four zones can be handled in one rack unit.

Every input and output is on a rear-mounted BNC, and each output is muscular enough to drive up to 4000 feet of cable or 100 slave displays, which lets a single ES-243 reach clocks and readers across a large building. It ships for 110-120 VAC, with 220-240 VAC and UL options available.

Type	Quad 1x6 time code distribution amplifier
Accepts	ESE time code or IRIG time code (TTL/DCLS)
Channels	4 separate isolated, six outputs each (24 total)
Connectors	Rear-mounted BNC, inputs and outputs
Output Drive	Up to 4000 ft of cable per output
Slave Capacity	Up to 100 slave displays per output
Power	110-120 VAC standard (220-240 VAC and UL optional)
