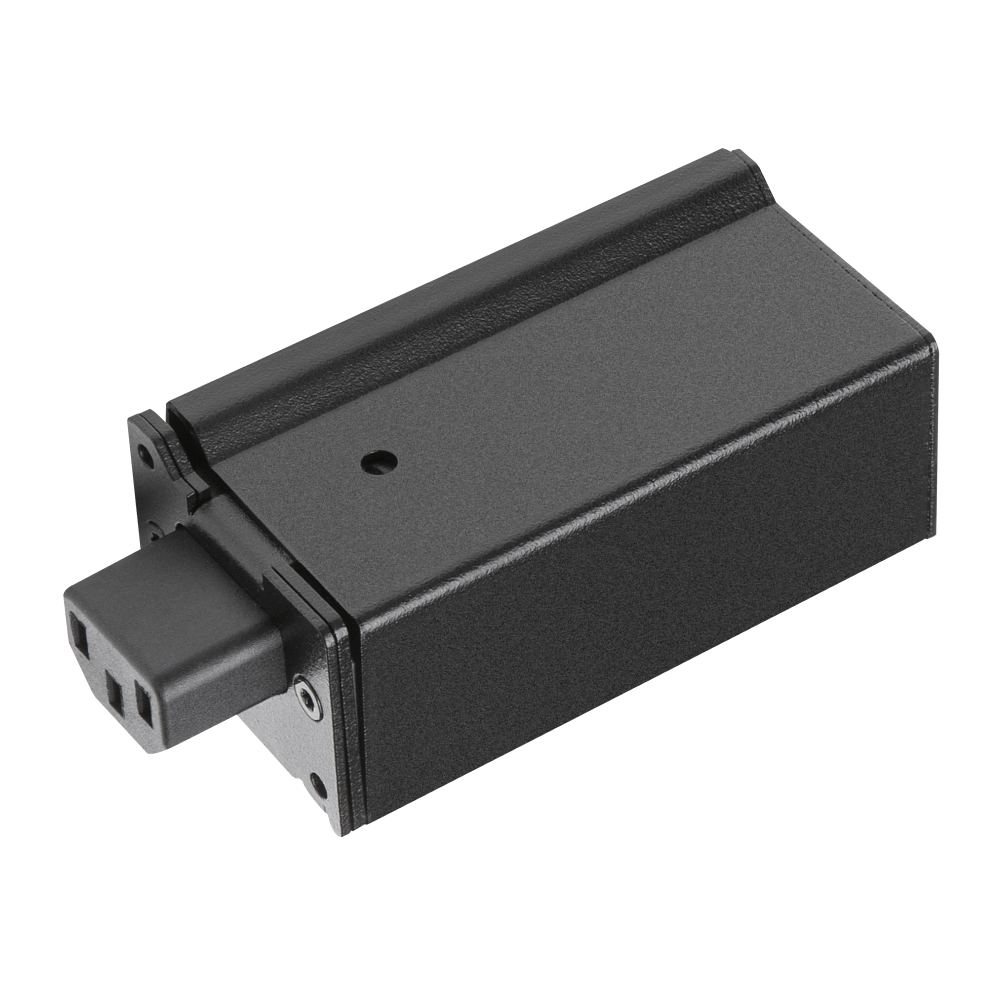

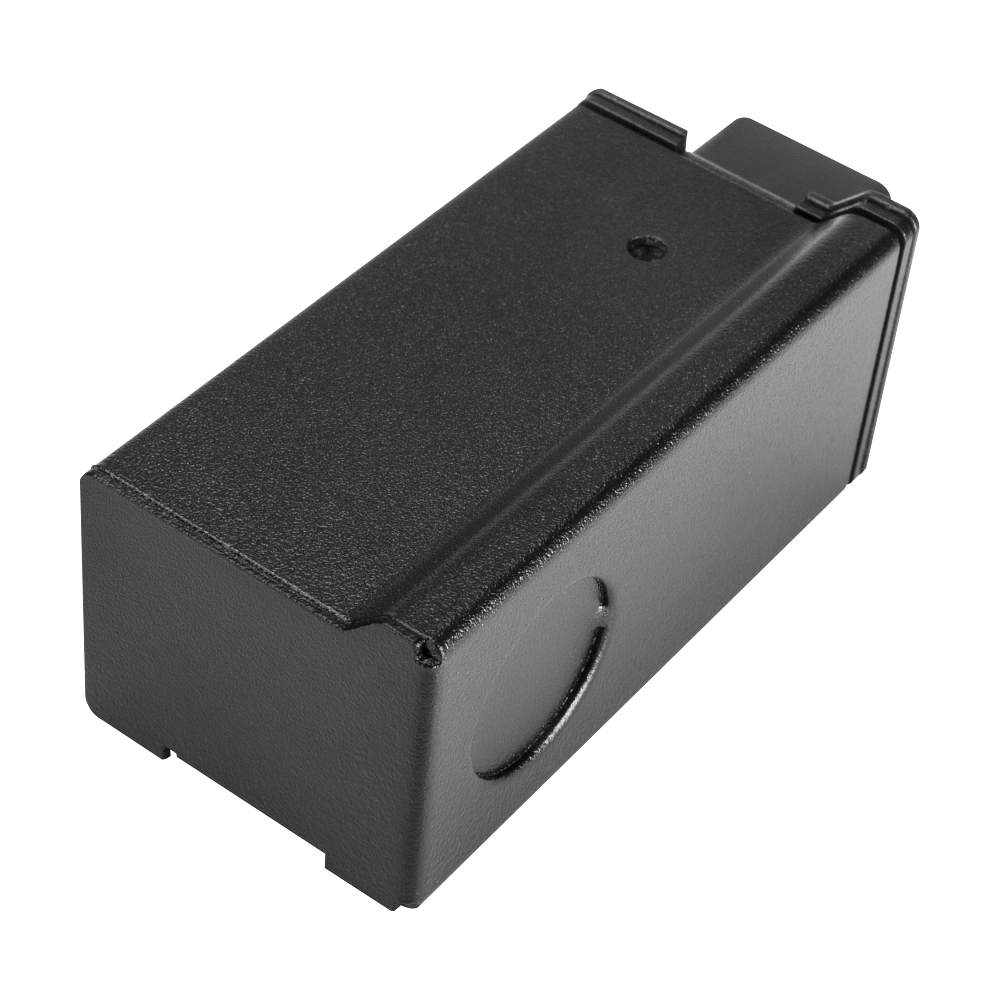

Crestron AMP-PNMK Plenum Kit for X-Series Amplifiers

Putting an amplifier in the plenum is a code question before it is an audio one. The AMP-PNMK connects AC power to the IEC C14 inlet of a compatible Crestron X-Series amplifier in a way that meets plenum rating requirements, which is what makes the install legal rather than merely convenient.

It is compatible with the AMP-X75, AMP-X300, and DM-NAX-AMP-X300. Wire leads are 16 AWG and the knockout takes a 3/4 in. NPT fitting. The kit is compliant with UL 2043 plenum rating, CCEA Section 18-27-300.22, and NFPA 70 National Electric Code.

Compatible AmplifiersAMP-X75, AMP-X300, DM-NAX-AMP-X300
Wire Lead Size16 AWG
Knockout Size3/4 in. NPT fitting
ComplianceUL 2043 plenum rating, CCEA Section 18-27-300.22, NFPA 70 National Electric Code
Temperature4 deg to 176 deg F (-15.5 deg to 80 deg C)
Humidity10% to 95% RH (non-condensing)
Dimensions3.85 in. H x 1.67 in. W x 1.58 in. D (42 x 40 mm W x D)
Weight0.34 lb (0.157 kg)
