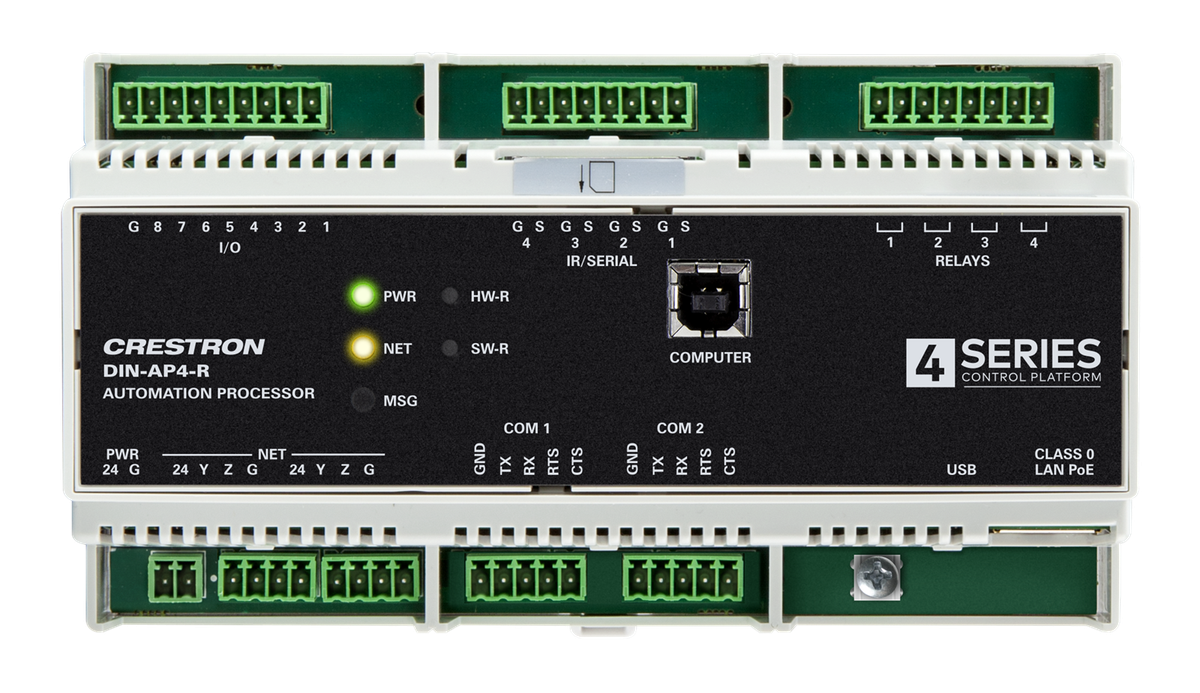

Crestron DIN-AP4-R 4-Series DIN Rail Control System for Crestron Home OS
The Crestron DIN-AP4-R is a 4-Series DIN Rail Control System for Crestron Home OS. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Power consumption is 9.7 W (not including any connected Cresnet devices). Mounting: 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm). Power Supply: Must supply 24VDC to 2-pin terminal block via flying leads; Use model DIN-PWS30-277or equivalent. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Power Supply | Must supply 24VDC to 2-pin terminal block via flying leads; Use model DIN-PWS30-277or equivalent |
|---|---|
| Power Consumption | 9.7 W (not including any connected Cresnet devices) |
| NET | (2) 4-pin 3.5 mm detachable terminal blocks, paralleled; Cresnet server ports |
| Mounting | 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm) |
| Housing | Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated |
| Heat Dissipation | 33 BTU/hr |
| Temperature | 41 deg to 113 degF (5 deg to 45 degC) |
| Cresnet Network | Cresnet server mode |
