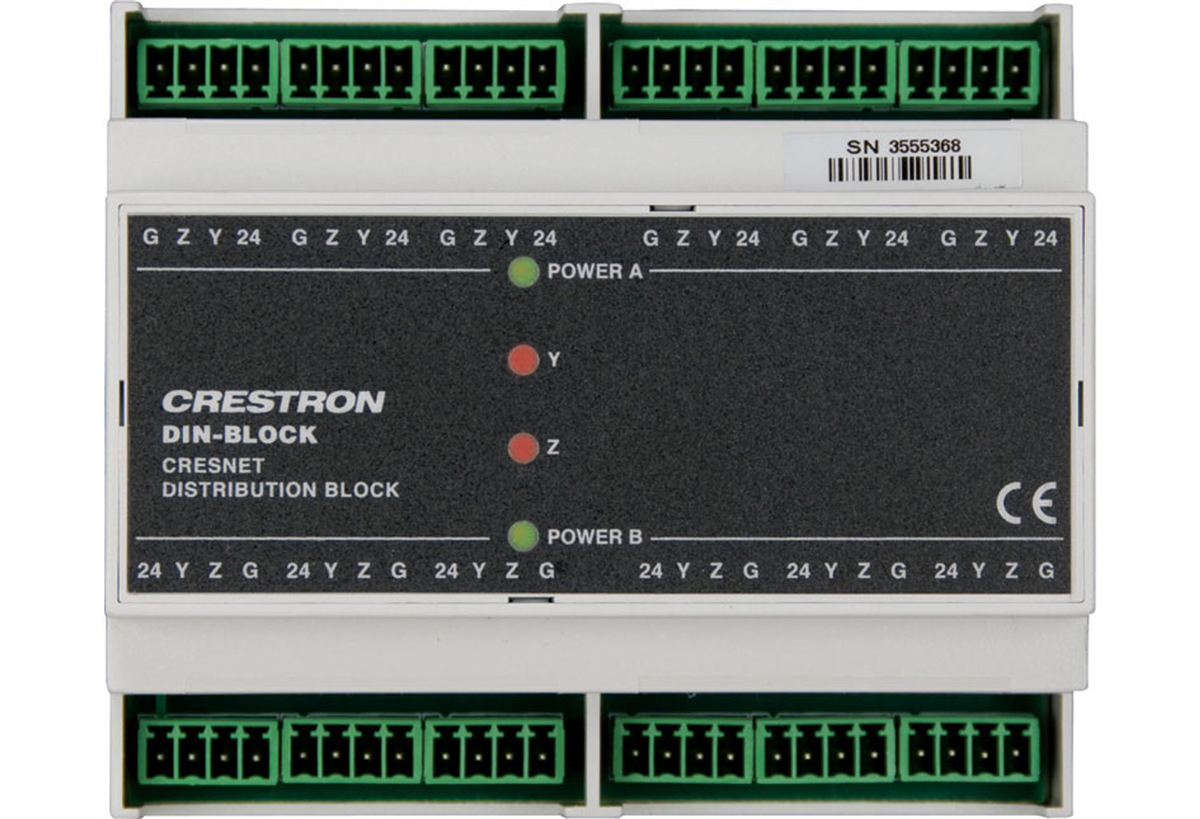

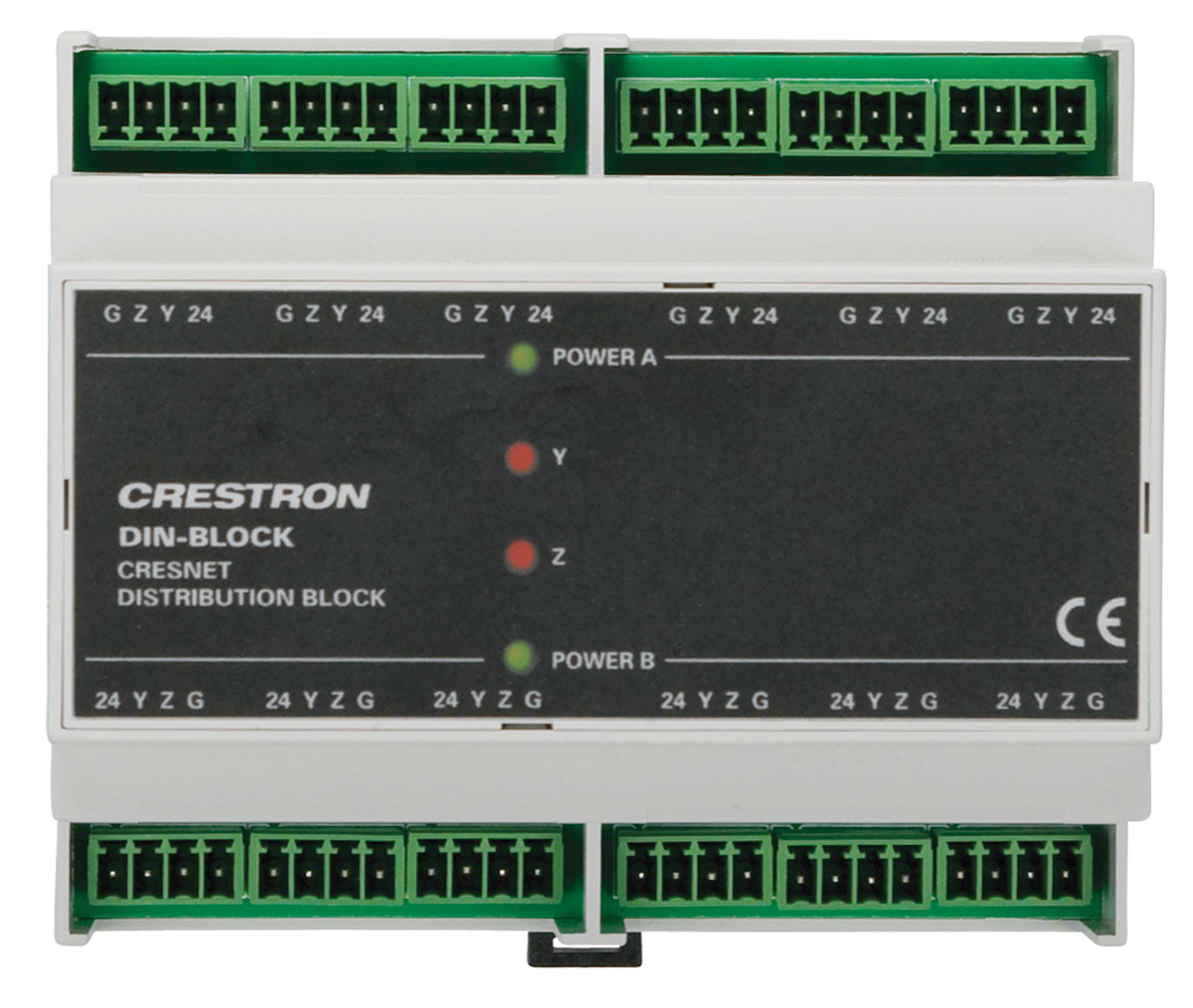

Crestron DIN-BLOCK DIN Rail Cresnet Distribution Block

The Crestron DIN-BLOCK is a DIN Rail Cresnet Distribution Block. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.

Cresnet: 0.3 Watts (0.01 Amp @ 24 Volts DC). Heat Dissipation: 1 BTU/hr. Temperature: 32 deg to 104 degF (0 deg to 40 degC). Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.

  • Cresnet Power Usage0.3 Watts (0.01 Amp @ 24 Volts DC)
  • Weight5.0 oz
  • Heat Dissipation1 BTU/hr
  • Temperature32 deg to 104 degF (0 deg to 40 degC)
  • Height3.71 in
Cresnet Power Usage0.3 Watts (0.01 Amp @ 24 Volts DC)
Heat Dissipation1 BTU/hr
Temperature32 deg to 104 degF (0 deg to 40 degC)
POWER A(6) 4-pin 3.5mm detachable terminal blocks, paralleled; Power Group A Cresnet distribution ports; Maximum Load: 75 Watts (3.13 Amps @ 24 Volts DC)
POWER B(6) 4-pin 3.5mm detachable terminal blocks, paralleled; Power Group B Cresnet distribution ports; Maximum Load: 75 Watts (3.13 Amps @ 24 Volts DC)
POWER A - B(2 green) Indicate Cresnet power present at any NET port of each corresponding power group
Y, Z(2 red) Indicate Cresnet Y and Z data activity at any NET port
Height3.71 in (94.2 mm)
Weight5.0 oz (148 g)
