Crestron CAEN Automation Enclosure

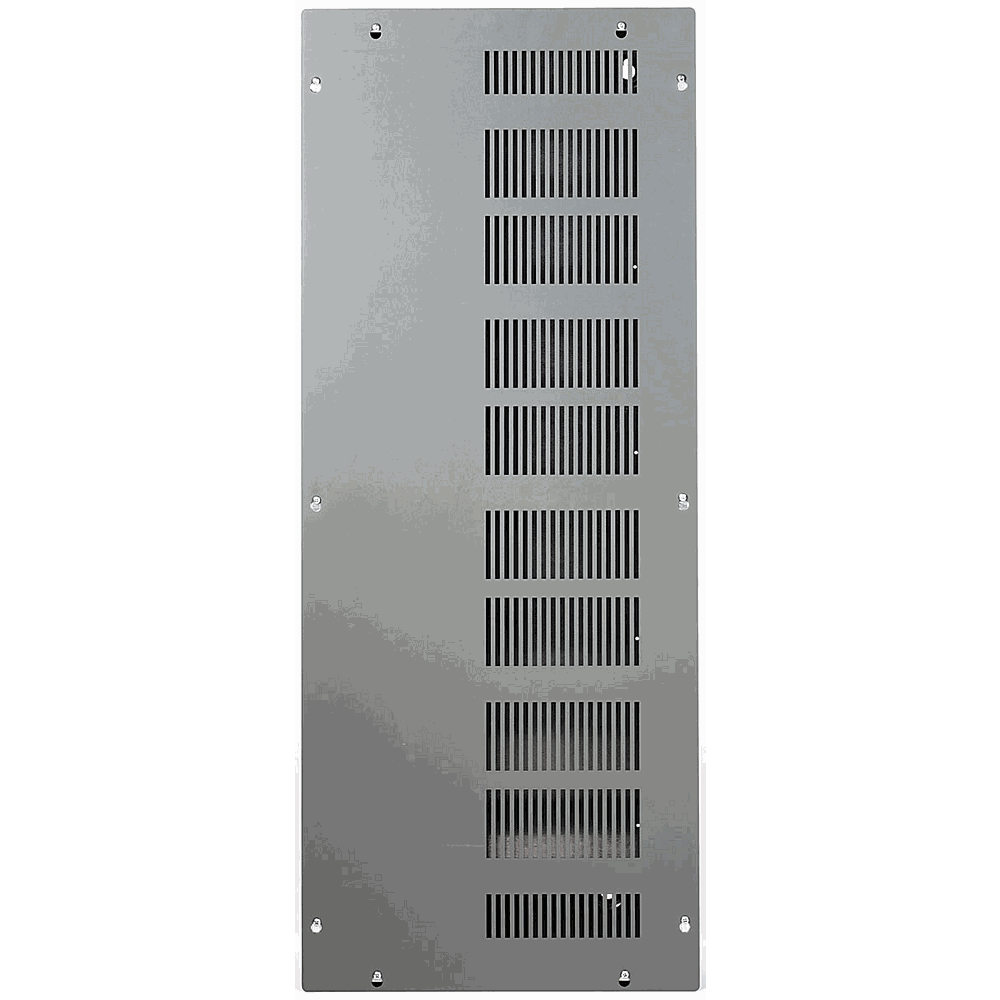

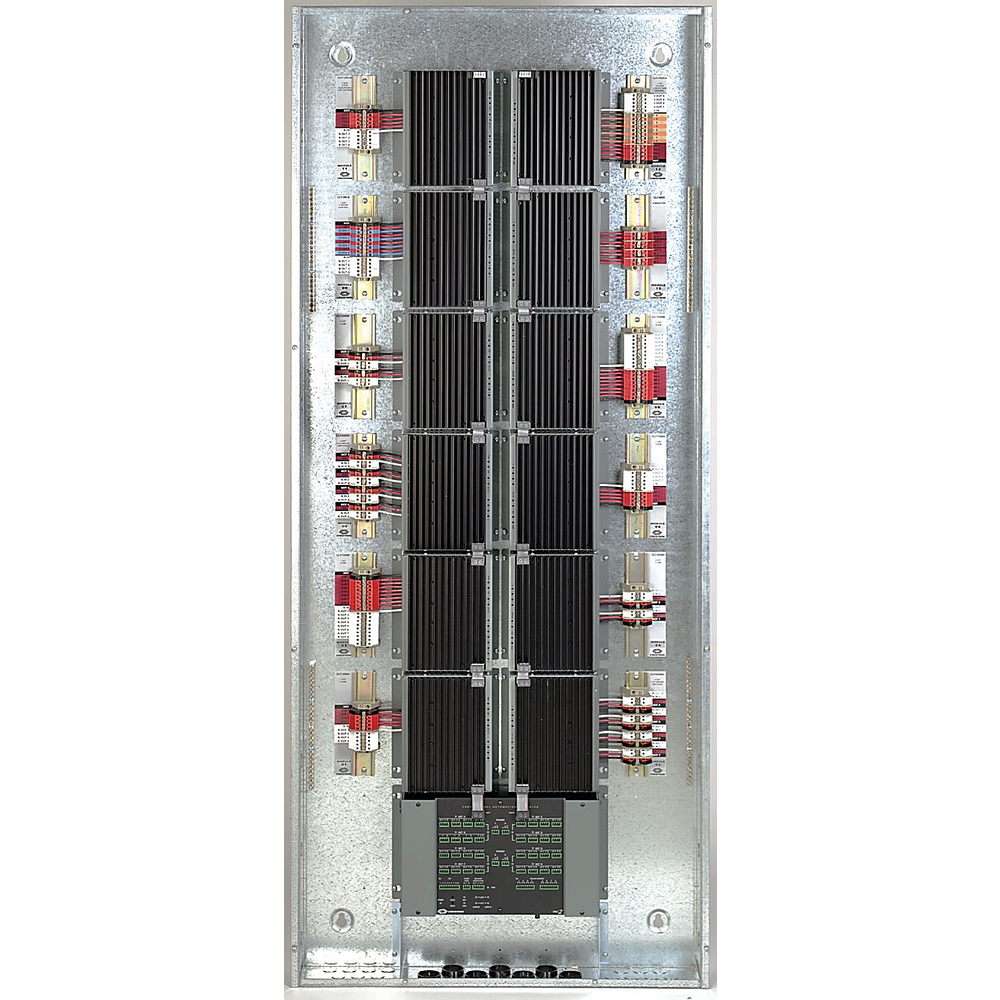

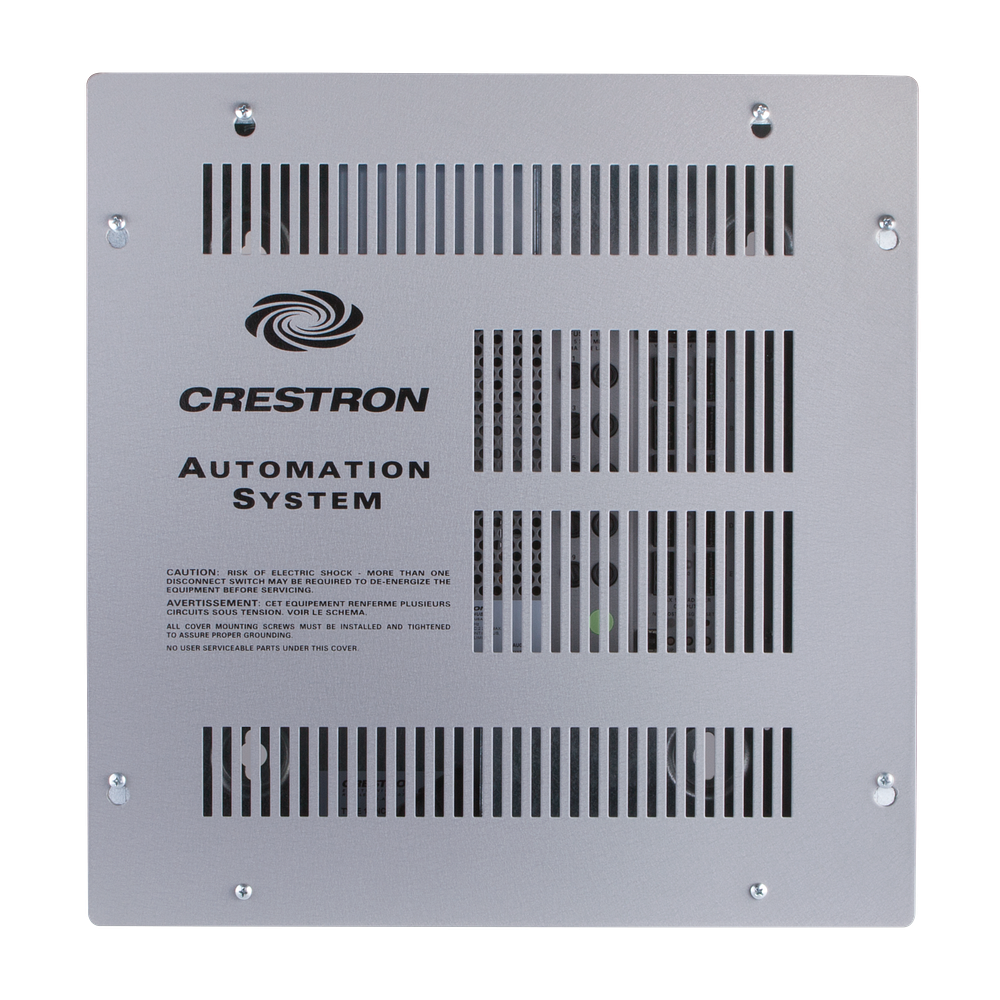

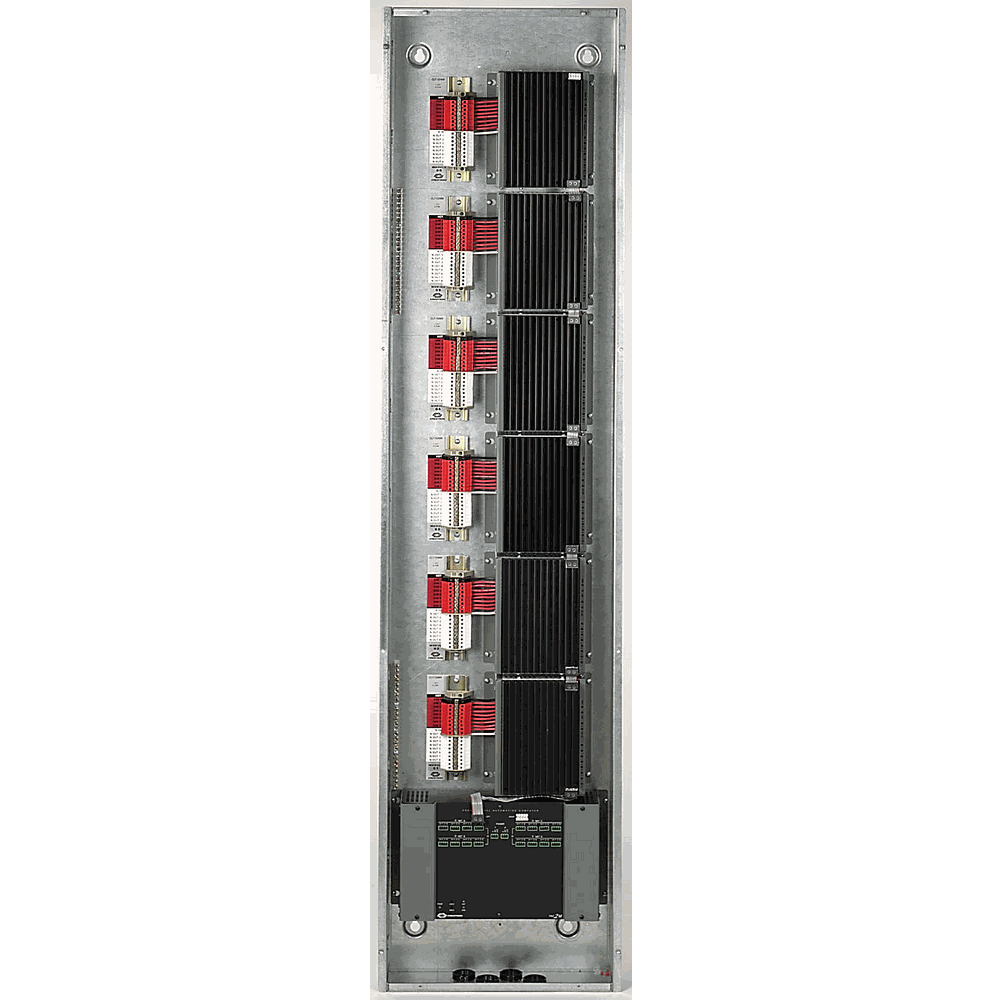

The CAEN enclosures are the steel homes for a Crestron integrated lighting system. A 16-gauge galvanized steel backbox goes into the wall, surface or flush, and a perforated grey steel cover closes it; CLX Series lighting control modules mount inside on the module grid.

Sizing is the whole decision. The grid is described as modules high by modules wide, from a single-module 1X1 up to the 7X2 at 62 in. tall and 25.5 in. wide, and all of them are 4 in. deep. Pick the box for the module count the panel schedule calls for, plus whatever growth the owner is paying for now rather than later.

Enclosure16-gauge galvanized steel backbox with perforated grey steel cover
InstallationSurface or flush wall-mount
CapacitySized in modules high x modules wide, from 1x1 to 7x2, for CLX Series lighting control modules

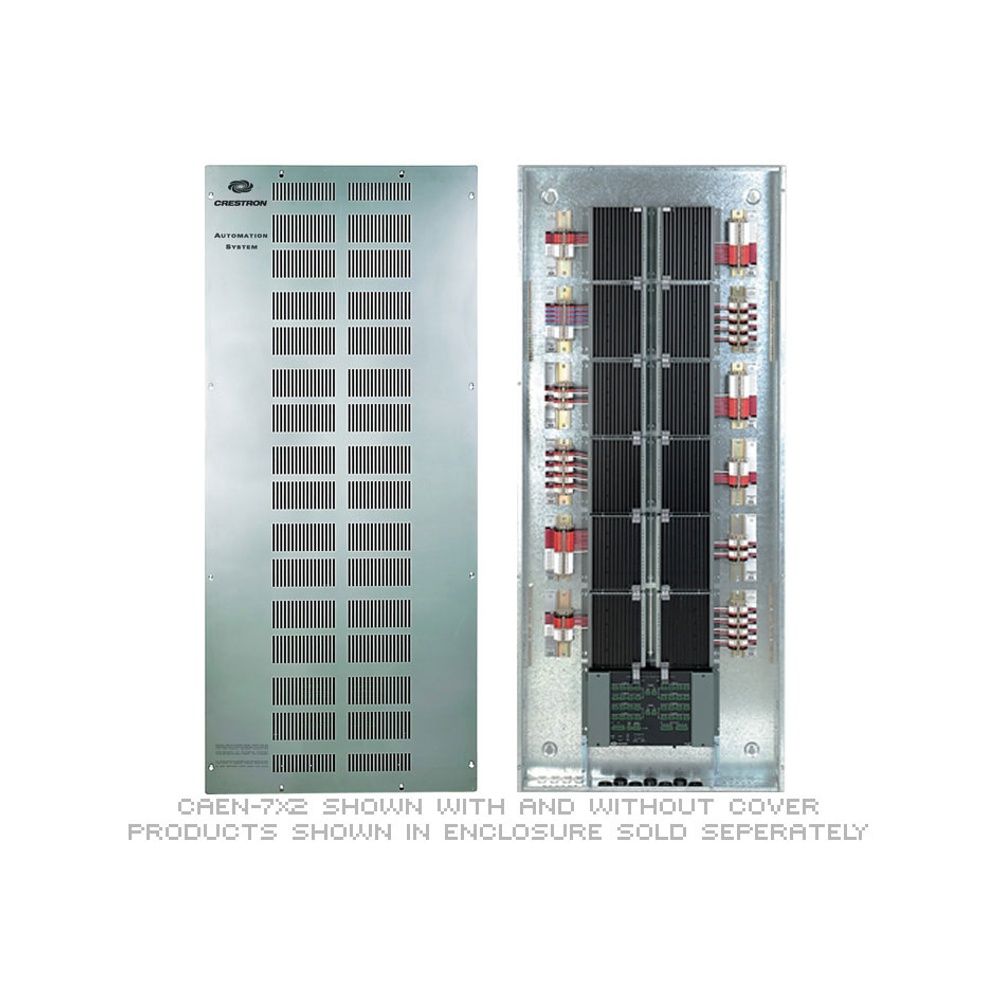

CAEN-7X2 Backbox62.00 in. H x 25.50 in. W x 4.00 in. D (157.48 x 64.77 x 10.16 cm)
CAEN-7X1 Backbox62.00 in. H x 14.38 in. W x 4.00 in. D (157.48 x 36.51 x 10.16 cm)
CAEN-4X2 Backbox38.25 in. H x 25.50 in. W x 4.00 in. D (97.16 x 64.77 x 10.16 cm)
CAEN-4X1 Backbox38.25 in. H x 14.38 in. W x 4.00 in. D (97.16 x 36.51 x 10.16 cm)
Temperature32 deg to 104 degF (0 deg to 40 degC)
