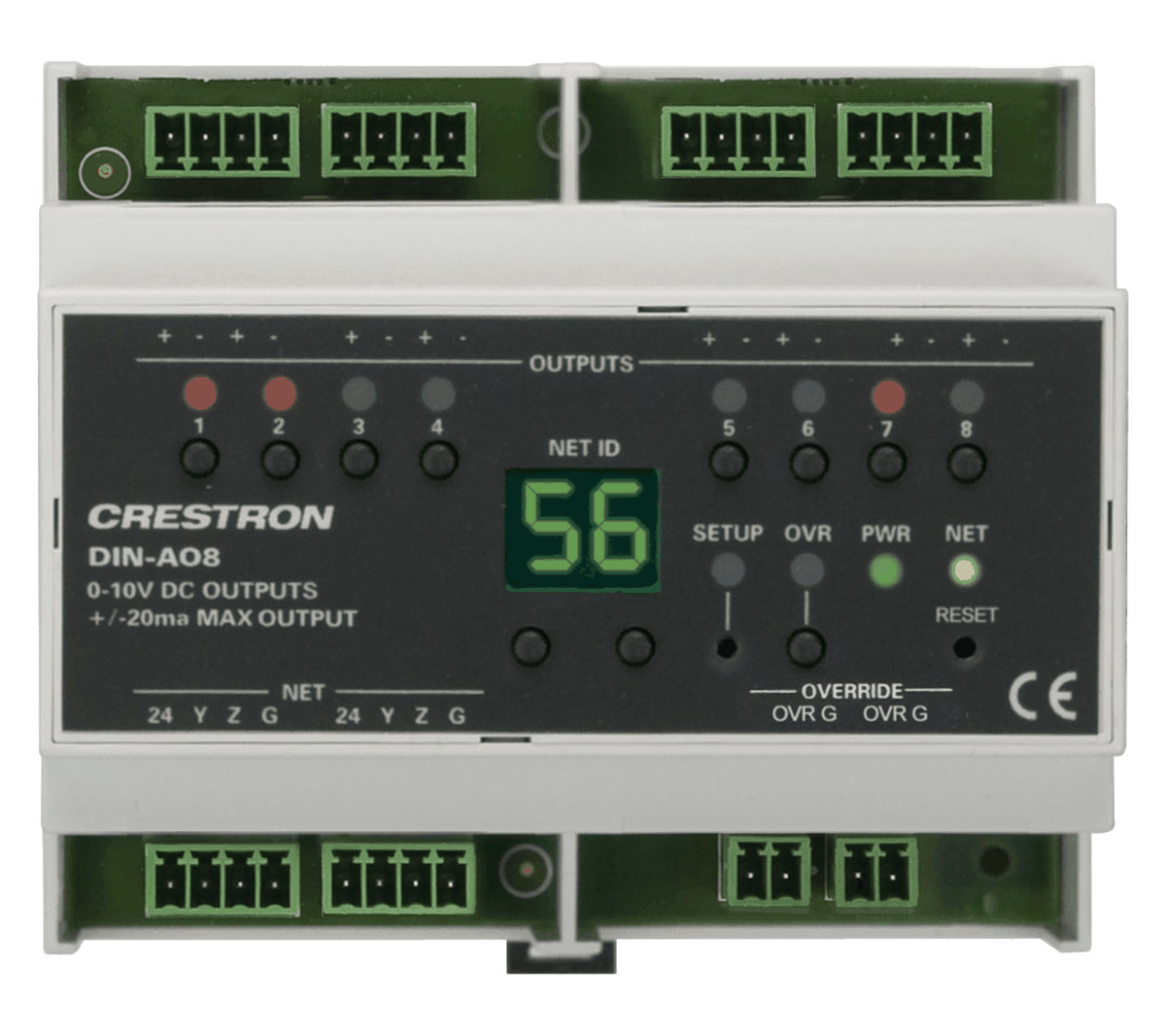

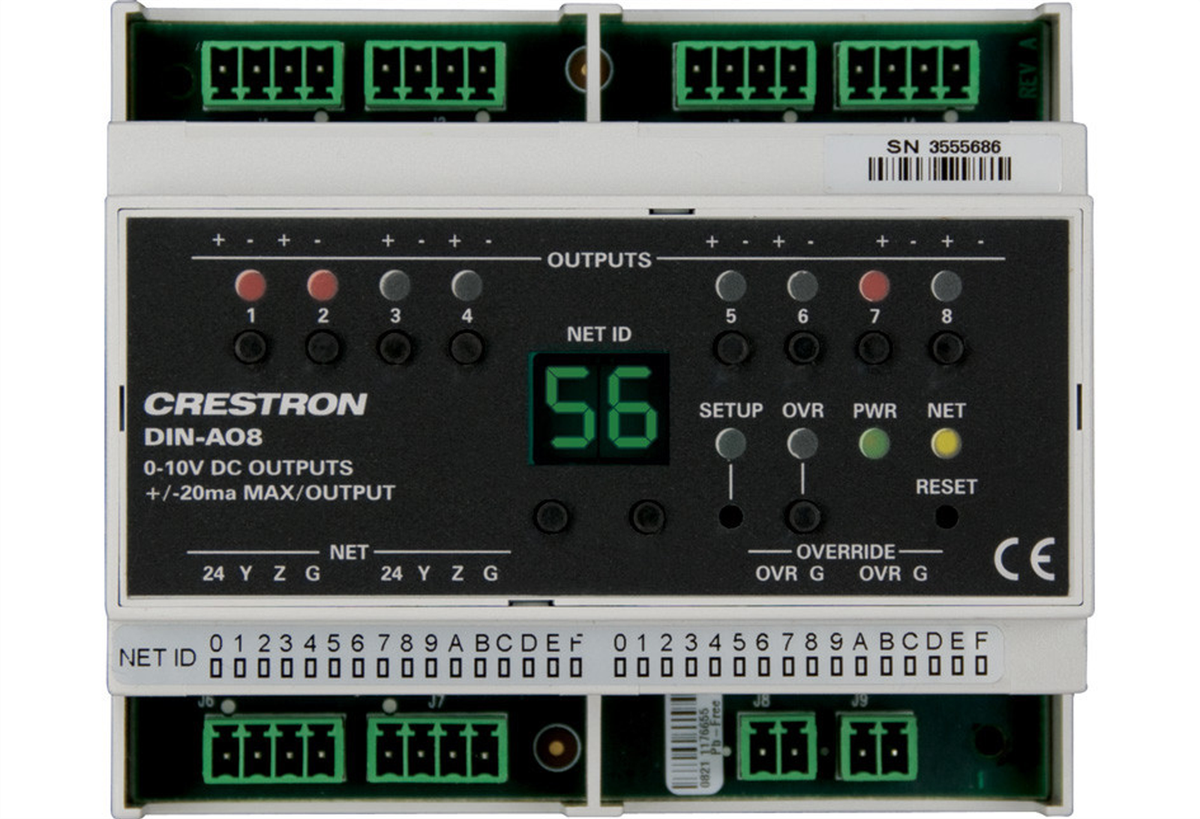

Crestron DIN-AO8 DIN Rail Analog Output Module
The Crestron DIN-AO8 is a DIN Rail Analog Output Module. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Cresnet: 6 Watts (0.25 Amps @ 24 Volts DC). NET: (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port. Heat Dissipation: 21 BTU/hr. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Cresnet Power Usage | 6 Watts (0.25 Amps @ 24 Volts DC) |
|---|---|
| NET | (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port |
| Heat Dissipation | 21 BTU/hr |
| Temperature | 32 deg to 104 degF (0 deg to 40 degC) |
| OUTPUTS 1 - 8 | (4) 4-pin 3.5mm detachable terminal blocks comprising (8) analog output ports; Voltage Control Range: 0 to 10 Volts DC; Maximum Sink/Source Current: +/-20mA per channel; Output Resolution: 1024 levels (10 bit) |
| OVERRIDE | (2) 2-pin 3.5mm detachable terminal blocks, paralleled; Sensing input for external low-voltage contact closure; Activates override mode when a closure is present; Minimum Closure Rating: 10mA (per module) at 24 Volts |
| OVR | (1) Red LED and (1) miniature pushbutton for enabling override mode and saving override presets |
| Height | 3.71 in (9.42 cm) |
