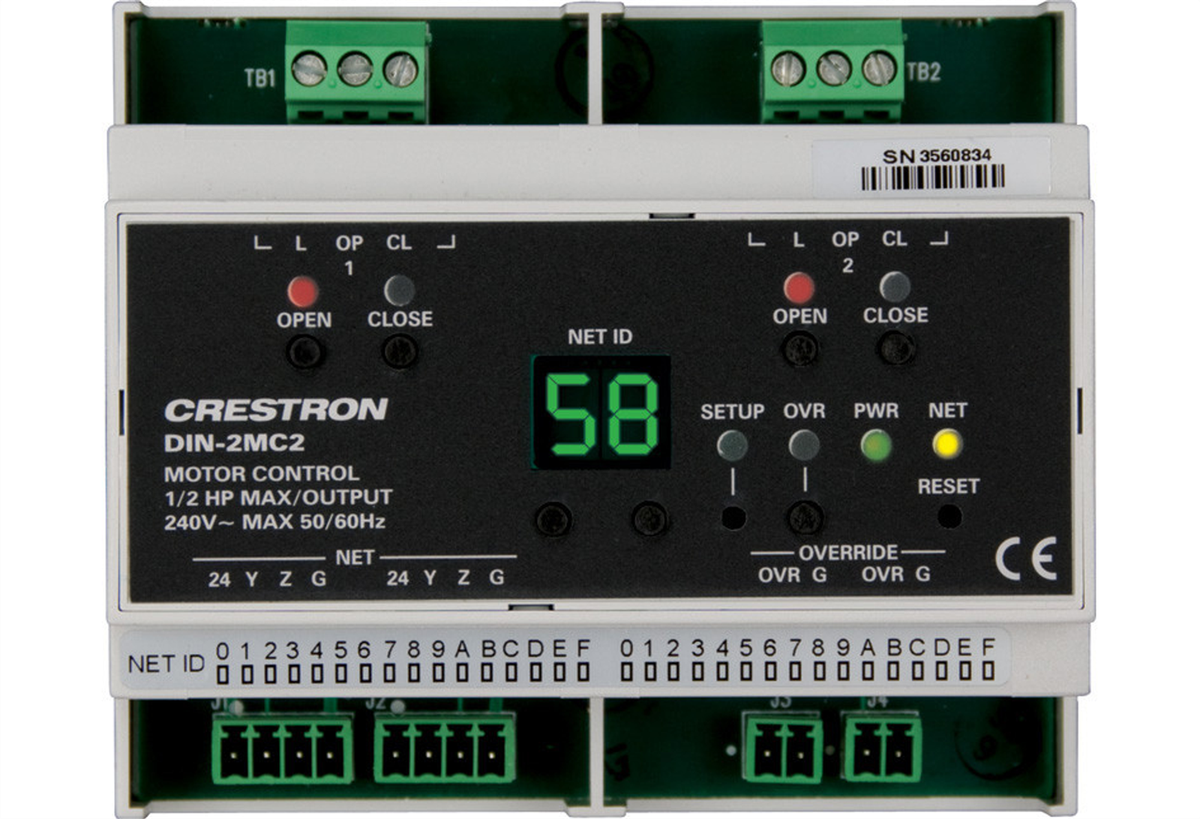

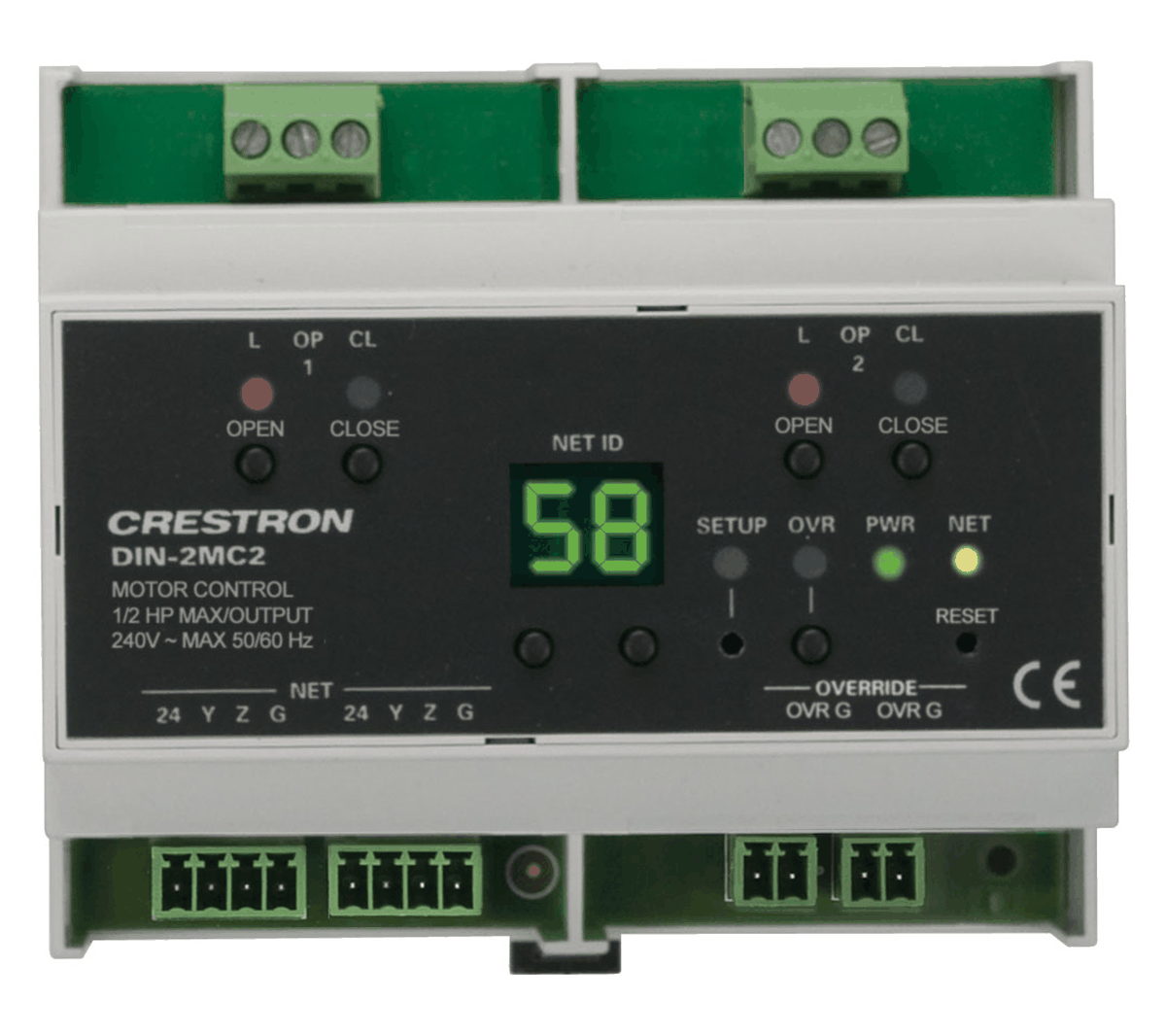

Crestron DIN-2MC2 DIN Rail Motor Control, 2 feeds, 2 channels
The Crestron DIN-2MC2 is a DIN Rail Motor Control, 2 feeds, 2 channels. It snaps onto a standard 35 mm DIN rail inside an electrical enclosure, so the lighting and control hardware for a floor or a residence assembles as a panel instead of a rack.
Supported load types are 3-Wire bidirectional motors. Cresnet: 3 Watts (0.125 Amps @ 24 Volts DC). Module Total: 1 HP @ 240 Volts AC, 50/60 Hz. Cresnet carries both power and data to the module over a four-conductor run, and the panel reports to a Crestron control processor or to Crestron Home.
| Load Types | 3-Wire bidirectional motors |
|---|---|
| Module Total | 1 HP @ 240 Volts AC, 50/60 Hz |
| Cresnet Power Usage | 3 Watts (0.125 Amps @ 24 Volts DC) |
| NET | (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port |
| Heat Dissipation | 10 BTU/hr |
| Temperature | 32 deg to 104 degF (0 deg to 40 degC) |
| Per Channel | 0.5 HP @ 240 Volts AC, 50/60 Hz |
| 1 - 2 | (2) sets of (3) captive screw terminals; 3-wire bidirectional motor control relays; Maximum Wire Size: 12 AWG (2.5 mm2) |
