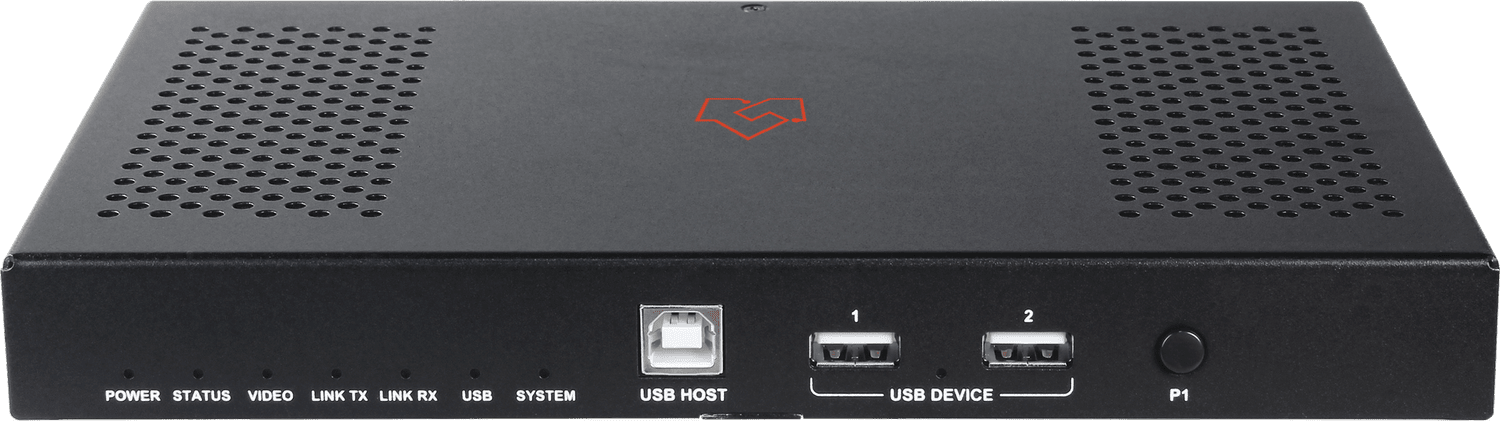

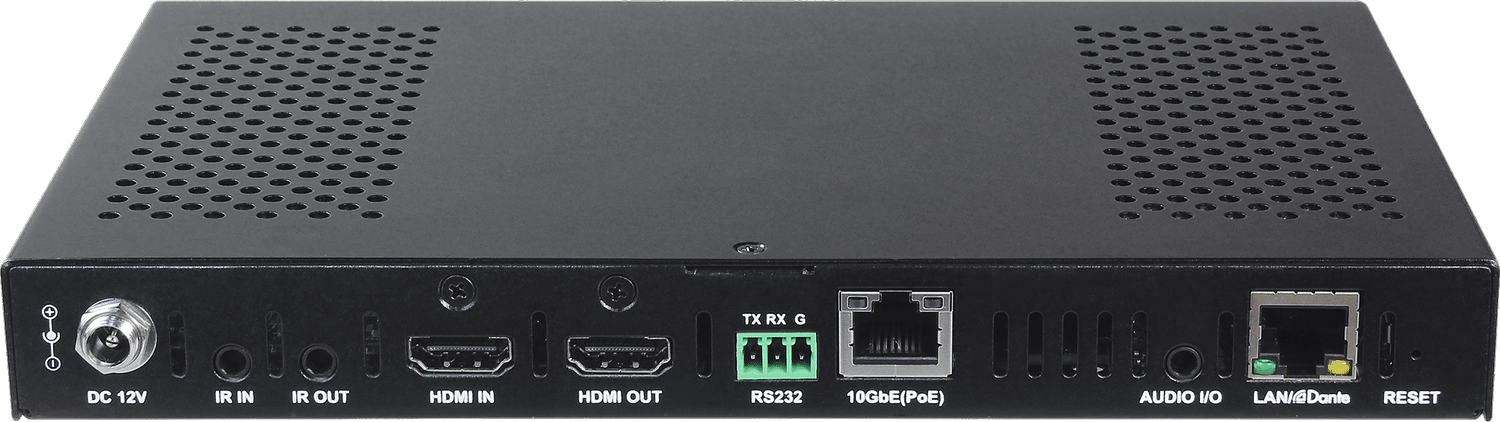

VigilLink VLIP-SDUCP-TRX SDVoE 10G Copper Transceiver with Icron USB 2.0 KVM

The VLIP-SDUCP-TRX switches between encoder and decoder roles from a button or the API, with an HDMI loop-out available in encoder mode. Icron USB 2.0 extension carries KVM traffic alongside the video, so a workstation in the rack drives a seat on the floor.

Video is HDMI 2.0b at 4K@60Hz 4:4:4 and 18Gbps with HDR10, Dolby Vision, HLG, and full HD audio to Dolby Atmos and DTS:X. Reach is 328 feet (100 meters) over copper with 802.3at PoE power. Processing covers 9x9 video wall and 25-window multiview, and the unit adds two-channel Dante audio output, bidirectional analog audio, and IR, RS-232, and CEC control.
